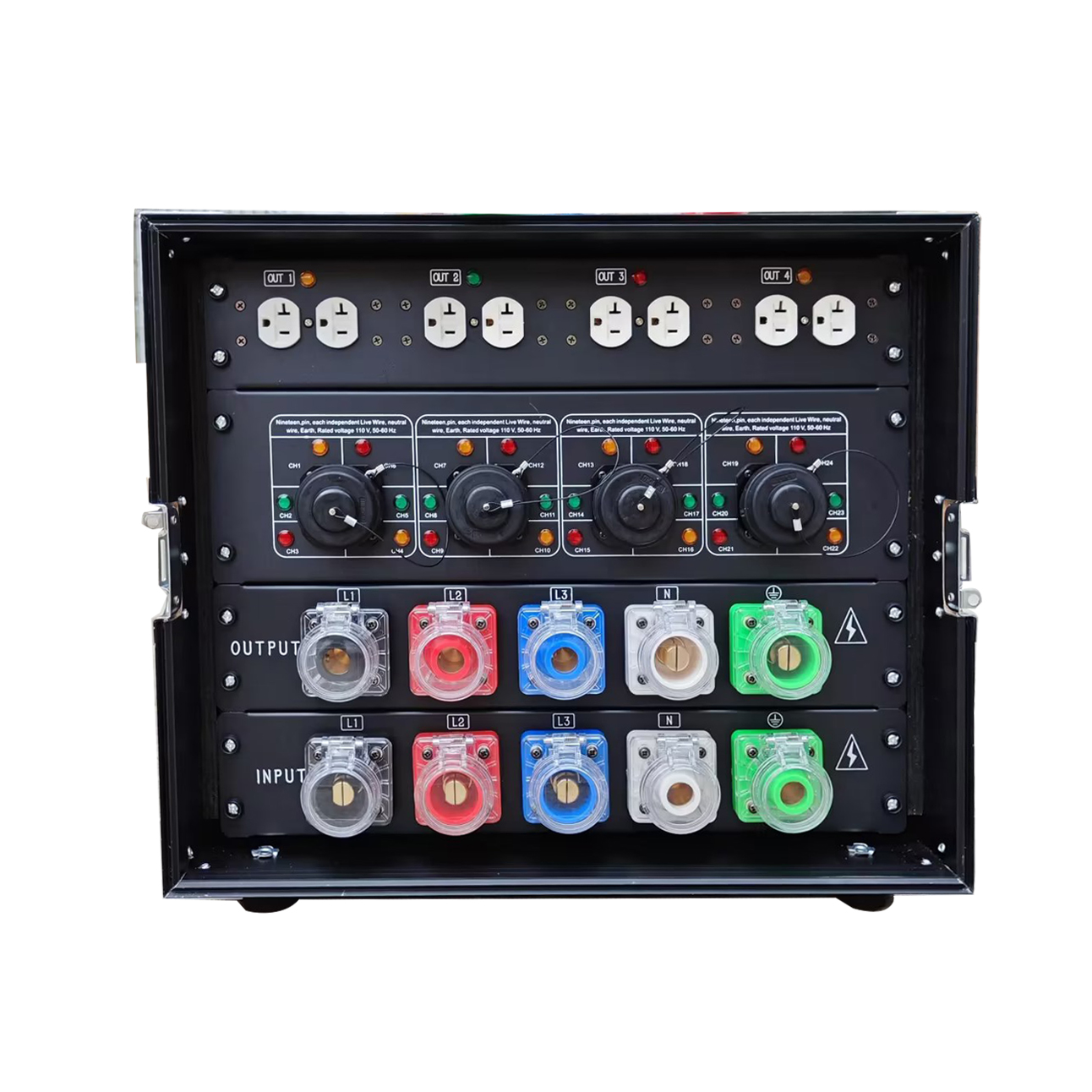

• Dual Output Flexibility: 20A American Edison + 19-Pin Socapex in one unit

• Tour-Ready Power Distribution: Clean, organized power for stage rigs and racks

• Fast Connect Workflow: Camlock in/out for quick load-in and strike

• Reliable Multi-Circuit Delivery: Built to handle demanding show power needs

• Road-Tough Build: Designed for frequent transport and rough environments

• Compact Footprint: High output capacity without taking up valuable space

• Pro-Grade Solution: Ideal for touring, events, rentals, and permanent installs

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPD0420419C+

Rated Voltage: three phase

Rated Current: 400A

Product Name: 4 road 20A American Edison plug 4 ways 19pin output power distro box

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

Input current: self-locking 400A rhino plug (IN & OUT)

Output: 4-way US plug + 4-way 19-pin 110V output

Gross Weight: 34kg

Product size (mm): 54*55*47cm

Color: black

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPDC10

Rated Voltage: three phase

Rated Current: 250A

Product Name: Pro 12 L21-30 8 19pin socapex 24 20A American plug output power distro

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

Input current: self-locking 400A rhino plug (IN & OUT)

Output: L21-30 (5P-220V)*12PCS+19pin*8Pcs (110V)+Edsion 24Pcs (110V)

Color: black

Power supply: three-phase five-wire AC220±10%, frequency 50Hz/60Hz±5%
Input current: 400A Rhino plug Camlock (US standard, black, red, blue, white, green grounding)
Output: 4-way 19-core Socapex*220V+4-way US plug Edison 110V
Body: Made of exquisite and durable double-layer shockproof hexagonal pattern plate; 11U standard cabinet.
The main switch uses 200A Delixi MCCB, and the air switch uses Delixi MCCB
Size: 60*68*75CM, 11U
Weight: about 52KG
