  • 4 Road 20A American Edison Plug 4 Ways 19pin Output Power Distro Box
    4 Road 20A American Edison Plug 4 Ways 19pin Output Power Distro Box
    4 Road 20A American Edison Plug 4 Ways 19pin Output Power Distro Box
    ❤ Add to collection

  • 4 Road 20A American Edison Plug 4 Ways 19pin Output Power Distro Box

    Place of Origin: Guangdong, China

    Brand Name: NWIITC

    Model Number: BPD0420419C+

    Rated Voltage: three phase

    Rated Current: 400A

    Product Name: 4 road 20A American Edison plug 4 ways 19pin output power distro box

    Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

    Input current: self-locking 400A rhino plug (IN & OUT)

    Output: 4-way US plug + 4-way 19-pin 110V output

    Gross Weight: 34kg

    Product size (mm): 54*55*47cm

    Color: black

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPD0420419C+

Rated Voltage: three phase

Rated Current: 400A

Product Name: 4 road 20A American Edison plug 4 ways 19pin output power distro box

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

Input current: self-locking 400A rhino plug (IN & OUT)

Output: 4-way US plug + 4-way 19-pin 110V output

Gross Weight: 34kg

Product size (mm): 54*55*47cm

Color: black

4 road 20A American Edison plug 4 ways 19pin output power distro box

Product Description

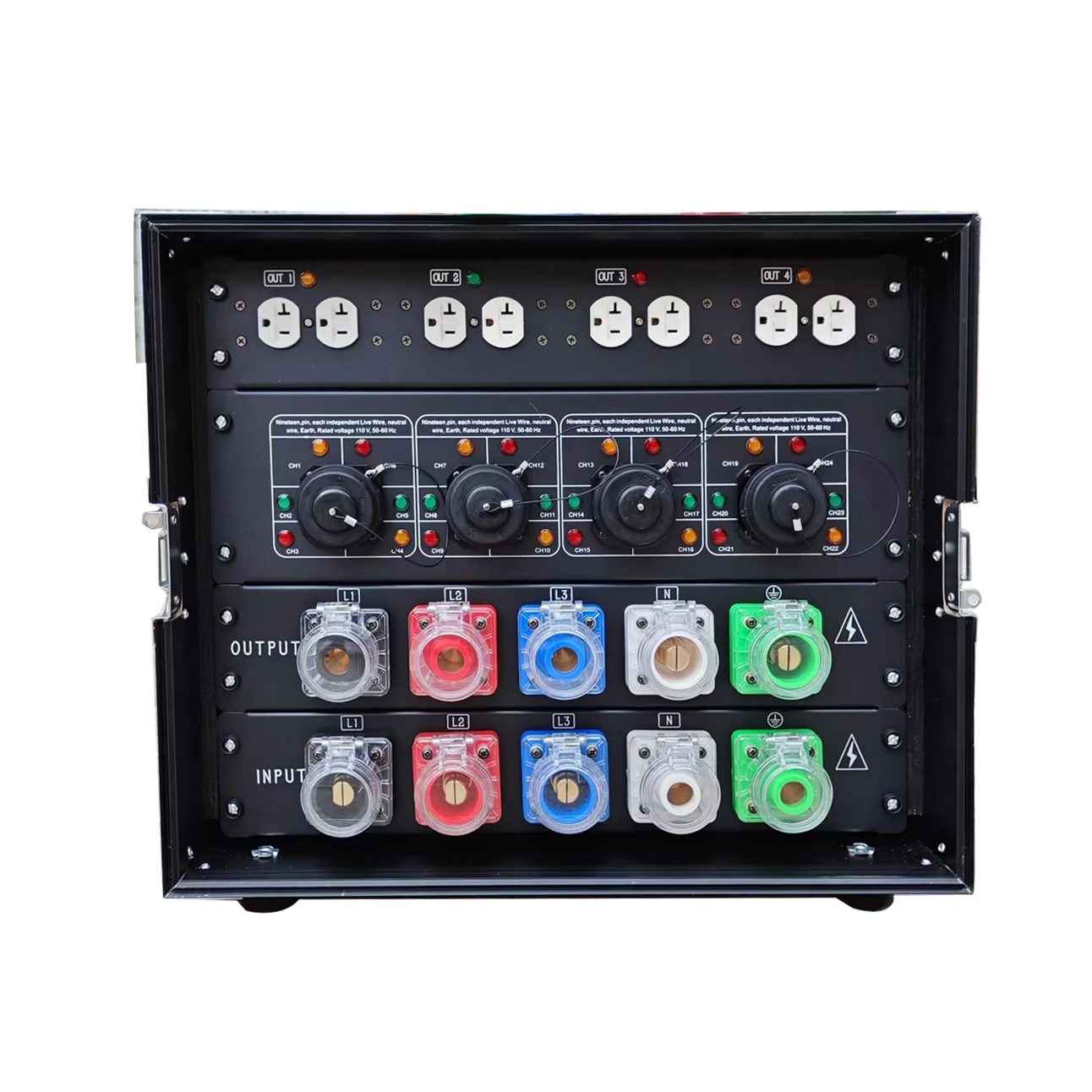

Product name:4 road 20A American Edison plug 4 ways 19pin output power distro box
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: self-locking 400A rhino plug (IN & OUT)
Display: With three-phase A.B.C direct-reading independent liquid crystal current and voltmeter display, various data can be monitored in real time without switching
Output: 4-way US plug + 4-way 19-pin 110V output, each output has an indicator light display
Body: It adopts exquisite and durable double-layer shock-proof hexagonal plate; 11U standard cabinet.
Control system: the total control adopts 200A total air switch; each independent separate air switch is C20A, with overload and short circuit double protection
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with LED blue light work light
Gross Weight: 34kg
Product size (mm): 54*55*47cm



More details of our 4 road 20A American Edison plug 4 ways 19pin output power distro box as below:

4 road 20A American Edison plug 4 ways 19pin output power distro box
