Designing lighting for a small theater may sound like a constraint-heavy challenge, but with the right tools, it becomes an opportunity for creative, budget-conscious expression. Whether you're working in a black box studio, community theater, or fringe performance space, achieving professional-level stage effects is absolutely possible—with just four well-chosen lighting fixtures.

In this article, we explore how to execute a fully functional theatrical lighting plan using only four fixtures. We’ll focus on versatility, spatial efficiency, and aesthetic control, featuring four recommended lights that combine quality, flexibility, and ease of use.

I. The Lighting Demands of Small Theaters

Small theaters often come with several overlapping limitations:

• Low ceilings

• Limited truss or rigging points

• Minimal power infrastructure

• Acoustic sensitivity (noise must be kept low)

• Budget constraints

At the same time, they demand lighting that:

• Clearly illuminates performers

• Creates depth, texture, and mood

• Enhances scenic elements without overwhelming them

Therefore, fixture versatility is critical—each unit must serve multiple roles or offer advanced control options to adjust easily between cues and scenes.

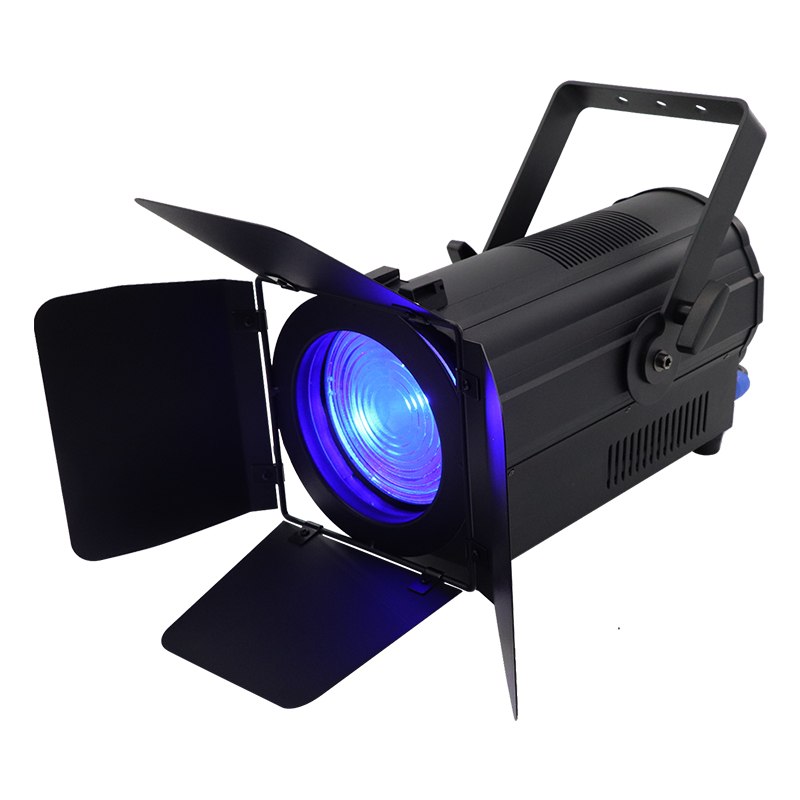

II. Fixture 1: The Main Workhorse – 200W RGBW LED Fresnel Zoom Light

The 200W RGBW LED Fresnel Zoom Light is ideal as a core general wash or front light. Its soft beam edges allow for even coverage without harsh cut lines, which is perfect for small performance spaces. The RGBW system also enables subtle tonal shifts for mood changes.

Key benefits include:

• Manual or DMX zoom (for beam width adjustment)

• RGBW color flexibility for subtle or bold effects

• Low fan noise, suitable for quiet dramatic performances

• High CRI and color rendering for skin tones and costume fidelity

With just one or two of these fixtures at strategic angles, you can achieve soft front lighting, overhead wash, or warm side fills—all with the 200W RGBW LED Fresnel Zoom Light.

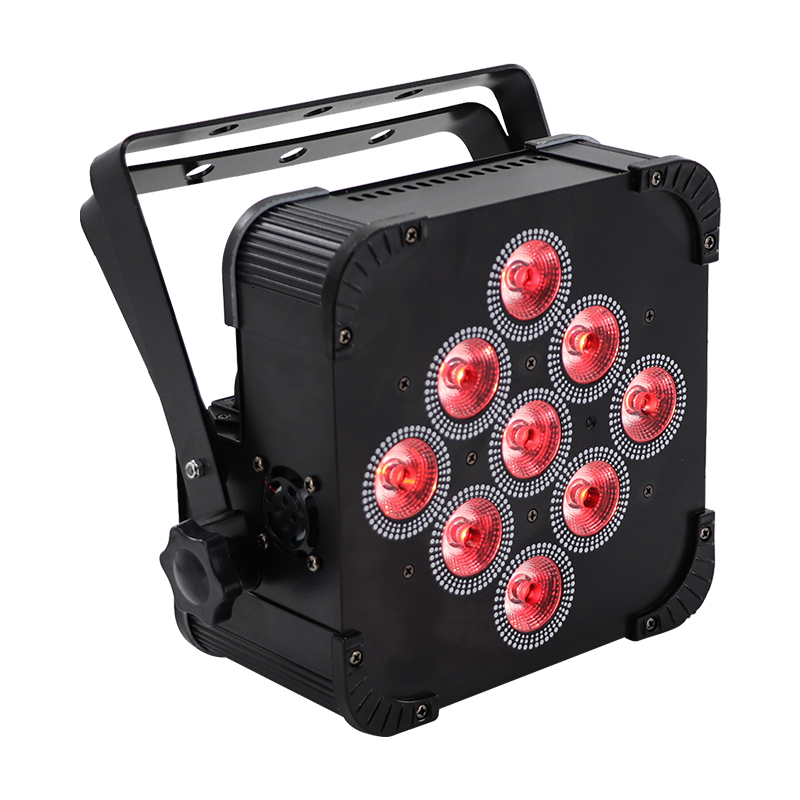

III. Fixture 2: Ambient and Background Magic – 9x18W 6in1 Wireless Battery LED Par

Every theater design needs at least one element that paints the stage in expressive tones. The 9x18W 6in1 Wireless Battery LED Par fills that role while offering extreme setup flexibility due to its battery-powered, wireless operation.

Why it’s powerful in small spaces:

• No cables = no clutter

• Can be placed in hard-to-reach or unusual positions (behind set pieces, on ground, overhead pipes)

• Includes UV and amber LEDs for nuanced coloration

• Wireless DMX control for easy cueing

This fixture is perfect for back wall uplighting, curtain color washing, or even footlighting—especially in modern or abstract productions. Despite its small size, the 9x18W 6in1 Wireless Battery LED Par can create full-scene atmospheres with very little real estate.

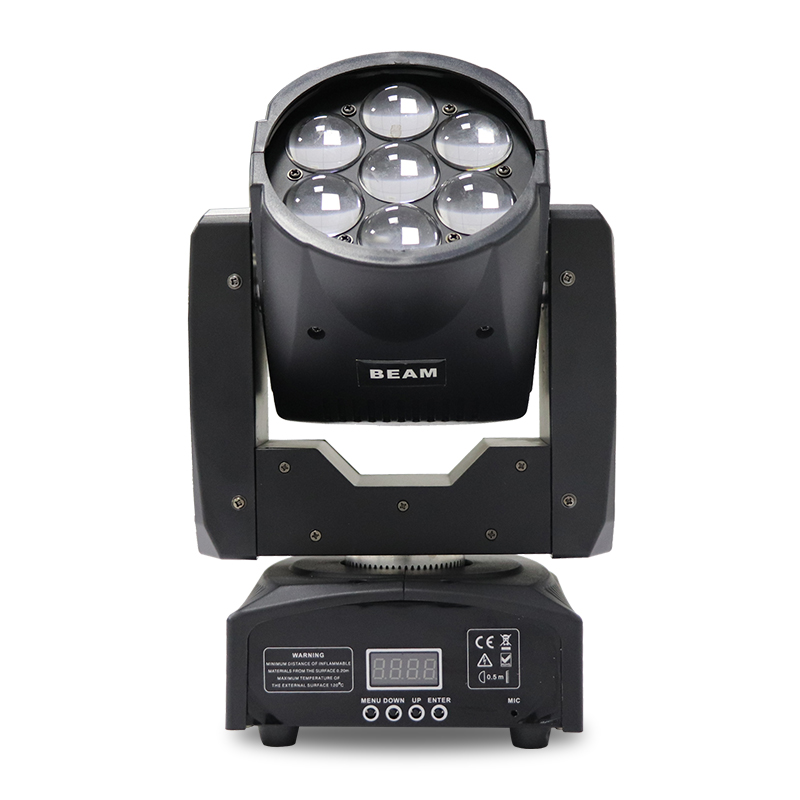

IV. Fixture 3: Dynamic Movement – Mini 7x12W LED Moving Head

The Mini 7x12W LED Moving Head brings dynamic movement, texture, and color to a space that might otherwise feel too static. While moving heads are more common in concerts or clubs, a compact, quiet model like this one can work beautifully in theatrical contexts.

How to use this unit effectively:

• Low-angle sweeps across the stage for mood shifts

• Highlighting entrances or solos

• Slow pan-and-tilt “breathing” movement to create ambient energy

• Center-stage top light for symmetrical color washes

It’s small enough to mount discreetly on a lighting pipe or shelf, yet powerful enough to wash a scene with color and gentle motion. The Mini 7x12W LED Moving Head is ideal for punctuating emotional beats or transitions.

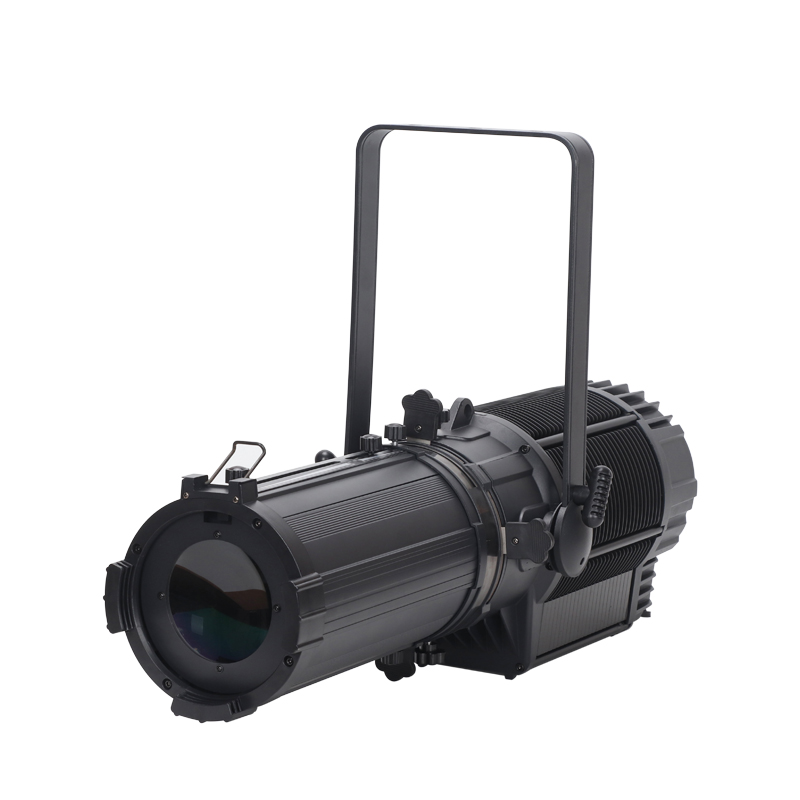

V. Fixture 4: High-Precision Key Light – 300W Warm White Profile Spotlight

No minimalist lighting rig is complete without a high-contrast, clean-edge profile. The 300W Warm White Profile Spotlight provides exactly that, allowing designers to sculpt light on specific performers or stage areas.

What makes it essential:

• High output, theater-friendly warm white (3200K)

• Framing shutters for sharp edge control

• Optional gobo insertion for pattern projection

• Zoom lens for flexibility across varying throw distances

This unit excels in face light, monologue highlights, and creating architectural framing. It’s especially valuable in intimate settings where the audience sits close to the stage. The 300W Warm White Profile Spotlight ensures precision with elegance.

VI. Putting It All Together: 4 Fixtures, Full Show

With these four lights alone, a lighting designer can execute:

• A full front wash using the 200W RGBW LED Fresnel Zoom Light

• Dynamic back/side color from the 9x18W 6in1 Wireless Battery LED Par

• Movement, top-down tinting, and color transitions with the Mini 7x12W LED Moving Head

• Isolated spot effects and cutting shapes using the 300W Warm White Profile Spotlight

By re-aiming between scenes, applying color mixing, and using even simple DMX programming, this setup offers creative power beyond its size.

VII. Best Practices for Small-Theater Lighting

VIII. When to Scale This Setup

This 4-fixture system can scale up by:

• Doubling fixture count symmetrically (e.g., add a second Fresnel or profile)

• Replacing the moving head with a higher-power zoom wash for larger throws

• Using additional battery-powered pars for audience-side immersion or ceiling bounce

But for a true minimalist theater rig, these four deliver a balanced, professional, and artistically flexible foundation.
