Designing a lighting system for a 12-meter by 8-meter stage presents a common but critical challenge: how to balance punch, coverage, and flexibility within a mid-sized footprint. With approximately 96 square meters of space to illuminate, the lighting setup must adapt to concerts, theater, corporate events, and more—often within tight rigging constraints.
This guide outlines the optimal combination of moving lights for such a stage, highlighting two professional fixtures that offer full-stage versatility: the 380W 3in1 Moving Head Stage Light and the 7x40W BEE EYE RGBW Zoom LED.
Understanding the Stage Lighting Needs
Before selecting equipment, it's important to break down the lighting needs of a stage of this size into functional zones:
Front wash: Coverage from FOH or downstage trusses for face lighting
Backlight and halo: For depth and performer separation
Effect lighting: Beams, spots, or movement to energize the performance
Color wash: Background ambiance and thematic fills
Aerial effects: Mid-air beams and gobo projection
A successful fixture layout must address all of these while remaining scalable and tourable.

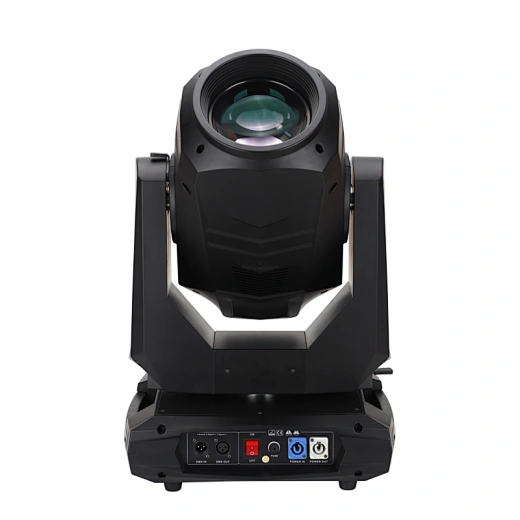

The 380W 3in1 Moving Head Stage Light is a core element of any dynamic mid-sized rig. Its hybrid capabilities—beam, spot, and wash—allow it to function as multiple fixture types in one.
Key Benefits for 12m x 8m Stage:
Beam mode: Sharp aerial effects across the depth of the stage
Spot mode: Precise gobo projection for performer highlighting
Wash mode: Wide-angle coverage when used in pairs or groups
With 380 watts of power and high-efficiency optics, these fixtures provide enough intensity to stand out even in bright stage environments. Positioned in groups of 2–4 along upstage and downstage trusses, the 380W 3in1 Moving Head Stage Light forms the foundation of both key and effect lighting.

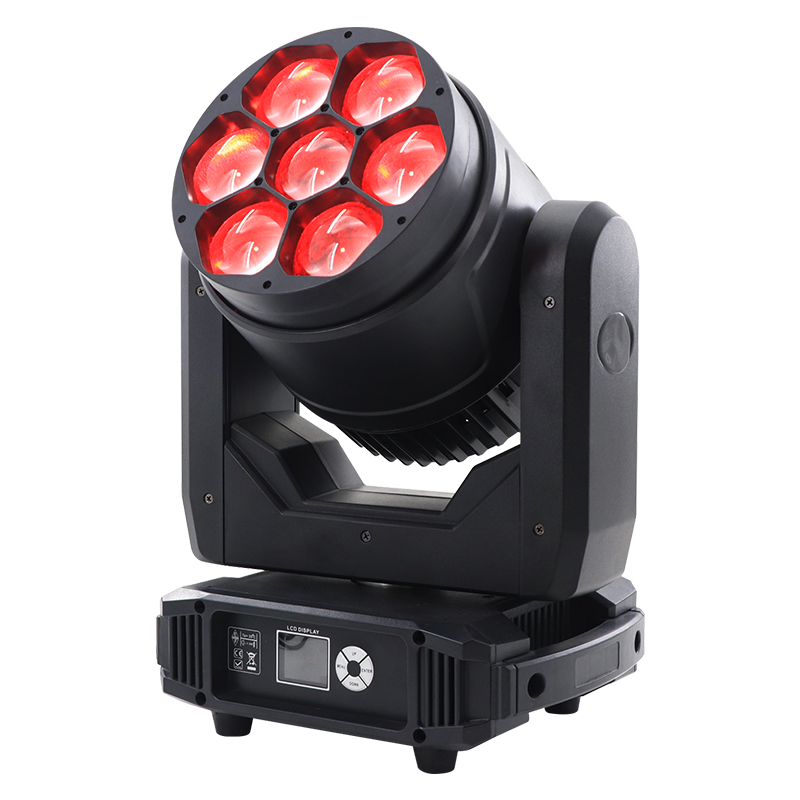

For visual texture, color flexibility, and matrix-based movement, few fixtures perform as elegantly as the 7x40W BEE EYE RGBW Zoom LED. With seven individually controllable RGBW pixels and rotating lens effects, this fixture excels at both wash and eye-candy effects.
Why It Works for This Stage Size:
Pixel-level control enables matrix chases, color waves, and visual sparkle
Zoom range transitions from tight beam to wide wash (ideal for mood shifts)
Compact footprint fits in tight truss locations and on floor stands
Dynamic rotating FX adds high-energy movement without needing additional strobes
The 7x40W BEE EYE RGBW Zoom LED is typically placed along the sides of the stage, as well as in back truss clusters, where it adds atmospheric background movement and color enhancement.
Recommended Layout for a 12m x 8m Stage
Here's a typical lighting layout using a combination of the two fixtures:
| Fixture Location | Quantity | Type |
|---|
| Upstage truss | 4 | 380W 3in1 Moving Head Stage Light |
| Downstage truss | 2 | 380W 3in1 Moving Head Stage Light |
| Side floor stands | 4 | 7x40W BEE EYE RGBW Zoom LED |
| Back truss (effect) | 4 | 7x40W BEE EYE RGBW Zoom LED |
This 14-fixture configuration provides a complete solution for:
Lighting Design Flexibility for Multiple Events
For multi-genre usage—concerts, speeches, dance, weddings—the above mix remains adaptable:
Theater Mode: Use 380W 3in1 Moving Head Stage Light in wash or spot mode with CTO filters
Club/Live: Activate beam mode + pixel FX from the 7x40W BEE EYE RGBW Zoom LED
Corporate: Use wide zoom washes in cool color temperature to ensure camera-friendly visibility
Wedding/Decor: Use rotating lens FX and pixel chases from Bee Eyes to create ambiance
Power and Rigging Considerations
Both fixtures are designed with compact size and lightweight housing:
This makes the system suitable for small mobile rigs or permanent venue installs alike.
