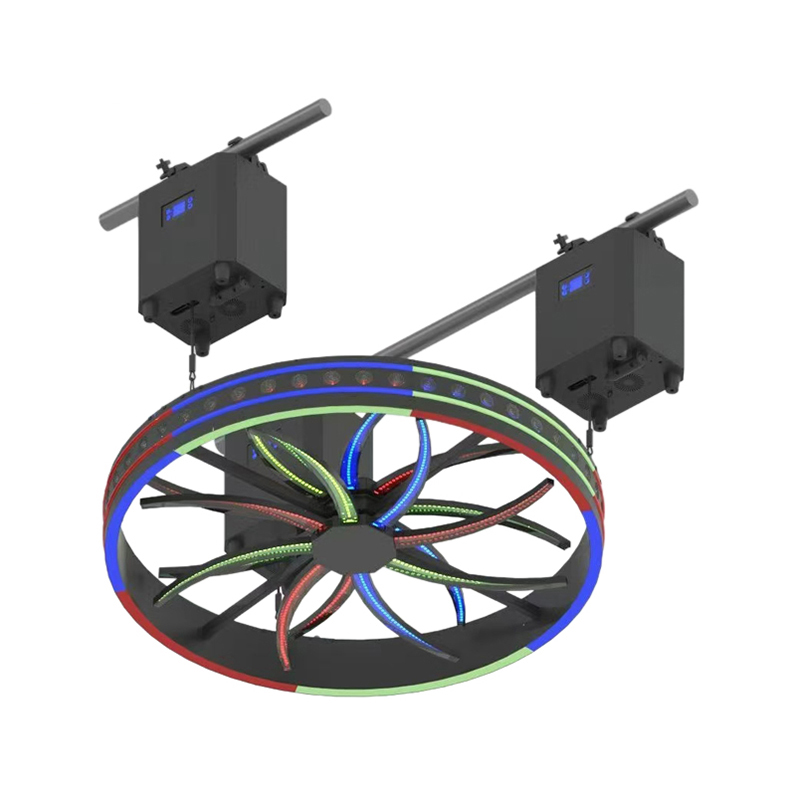

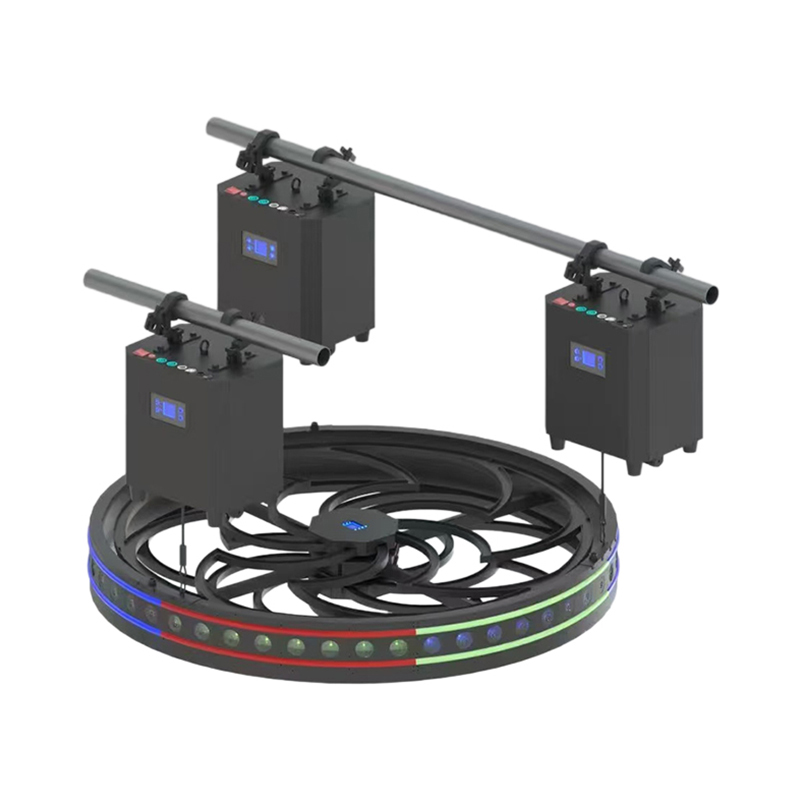

Dynamic Kinetic Lighting System: Combines motion, beams, and halo effects into one immersive visual experience
Powerful RGBW Beam Output: High-intensity beams create sharp aerial effects and stage impact
Halo Windmill Effect: Eye-catching rotating visuals with vibrant RGB color performance
Integrated Kinetic Hoist Control: Smooth vertical movement adds depth and dynamic stage motion
Independent DMX Addressing: Separate control for lighting and hoist systems for advanced programming
Ultra-Narrow Beam Angle: Concentrated beam effects deliver stunning mid-air visuals
Massive Visual Coverage: Large ring structure creates a bold centerpiece for concerts and shows
Professional DMX & RDM Support: Flexible integration with modern lighting control systems
Reliable Dual Safety Protection: Physical braking and electronic protection ensure secure operation
Fast & Smooth Motion Performance: Precise lifting movement enhances synchronized stage effects
Touring-Ready Construction: Durable build with dedicated flight cases for transport protection
Perfect for Large Productions: Ideal for concerts, festivals, nightclubs, TV studios, and immersive events
Light Source
Beam:48 × 20W RGBW LEDs
Fill Light:1315pcsRGB 3in1 LEDs
Lifespan: 20,000 hours
Optical System
Beam Angle: 2.5°
Control System
Interface: 4 tactile buttons + LCD display
Protocols: DMX512, RDM
Independent addressing for light and hoist
Light DMX Modes: 3 (33/63/96 channels)
Hoist Control Channels: 4CH

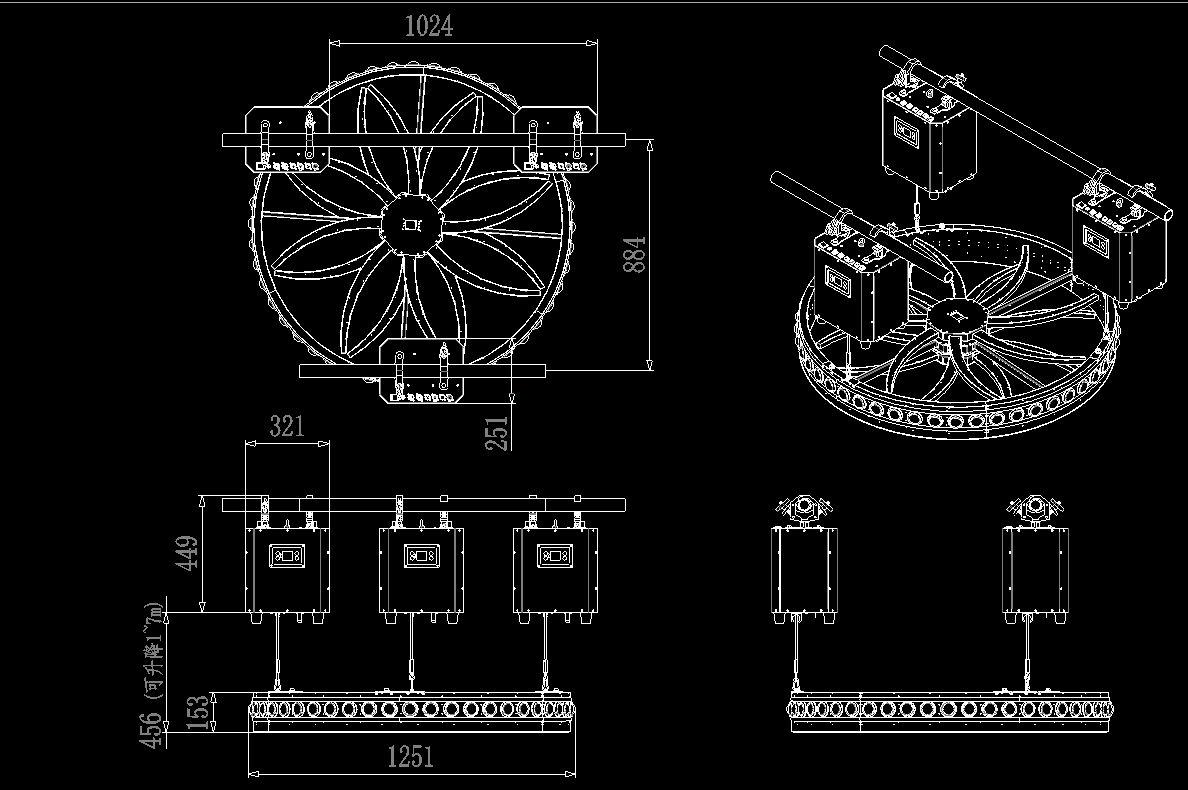

Fixture Dimensions
Light Ring: Ø1251mm
Weight: 28kg
Hoist Unit: 321mm(L) × 251mm(W) × 324mm(H)
Weight: 20kg
Hoist System
Quantity: 3 units
Travel: 6m
Speed: 0.5m/s
Load Capacity: 10kg/unit
Safety: Physical brake + electronic protection
Electrical Specifications
Input Voltage: AC 100-240V, 50/60Hz
Light Power: 700W
Hoist Power: 3 × 400W
Connectors: Power-CON in/out, 3-pin/5-pin XLR
Working environment
Temperature Range: 0°C to 40°C
IP Rating: IP20
Installation
Vertical hanging with equilateral spacing
Includes safety hooks and folding hangers
Package Contents
User manual
Power cables
Signal cables
Detachable folding hooks
Flight Case Size: 1310×1310×750mm + 135mm Wheel Height (1-in-2 Packing)
Hoist Flight Case Size: 960×390×570mm (Packed 3 Units in 1 Case)
Windmill Lights and Hoists Are Packed Separately.
- User name Member Level Quantity Specification Purchase Date
- Satisfaction ：
-
-
.png)
.png)
.png)
3m/6m/9mHeight DMX Winch Kinetic System LED Crystal Drop
Stunning Visuals: RGBW SMD LEDs create dazzling crystal drop effects
Dynamic Control: Compatible with DMX512 and MADRIX for synchronized shows
Compact Elegance: Sleek crystal ball design adds brilliance to any venue
Versatile Applications: Perfect for clubs, events, and stage performances
Reliable Performance: Stable operation within a wide temperature range
Complete Package: One winch + crystal drop for easy installation
￥0.00￥0.00 -
L-180 RGB Lifting LED Kinetic Ball Stage Lights 9m Height Disco Wedding Moving Lights
Color Temperature(CCT): RGB
Lamp Luminous Efficiency(lm/w): 90
Color Rendering Index(Ra): 90
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, Project Installation
Input Voltage(V): AC100V-240V/50-60HZ
Type: Moving Lights
Lifespan (hours): 50000
Product Weight（kg）: 5.6 KG
Lamp Luminous Flux(lm): 9000
Working Temperature(℃): -30 - 40
Place of Origin: Guangdong, China
IP Rating: IP33
Brand Name: NWIITC
Emitting Color: RGB
Application: Night club, dj, disco, etc.
Material: Aluminum+plastic
Light Source: LED
Control Method: DMX512
Warranty(Year): 1-Year
Activity schedule: 9 meters, can be customized
Color: red/green/blue
Maximum load: ≤2KG
Speed: ≤1.2m/s
Control method: DMX512, ArtNet
Control channel: 9 channels
Connector: 3-pin/5-pin XLR input/output
Information screen: 4-digit digital tube display
Anti-fall protection: Physical braking, electronic protection
Product name: DJ club disco wedding 9m height rgb lifting LED kinetic ball light
￥0.00￥0.00 -
RGBW Kinetic Ring Beam Light with DMX512 Winch for Club, DJ & Concert
Dynamic Kinetic Motion: Triple winch system creates powerful vertical choreography
Stunning Beam Ring Effect: 48× RGBW LEDs deliver vibrant, immersive visuals
Precision Control: Seamless DMX512 & MADRIX integration for pro-level programming
Impressive Lift Range: Smooth 0–8m movement for dramatic stage transformations
All-in-One Design: Winch + beam ring combo for versatile creative setups
Built for Performance: Stable operation across wide temperature conditions
Durable Construction: Rugged aluminum body with sleek black finish
Tour-Ready Packaging: Flight case included for easy transport and protection
￥0.00￥0.00 -
9m Kinetic LED Ring for Hotel Applications
Color Temperature(CCT): 5000K (Daylight)
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, Project Installation
Input Voltage(V): AC100-240v/50-60Hz
Type: Projection Lights
Lifespan (hours): 50000
Product Weight（kg）: 5.6 KG
Working Temperature(℃): -25 - 45
Place of Origin: Guangdong, China
IP Rating: IP33
Brand Name: NWIITC
Emitting Color: RGBW
Application: DJ event architecture party church wedding exhibition, DJ Disco Studio Party Bar Club Wedding Theatre Architechtural light
Material: Aluminum
Light Source: LED, 144PCS RGB SMD LEDS
Control Method: DMX512
Warranty(Year): 2-Year
Install Style: Hanging clamp
Logo/graphic design: UV printing, Laser Printing
Product name: 9m Kinetic LED Ring
Power: 300W
Effects: Pixel, Beam, Wash
Lifting height: 0-9meter
Protection rate: IP33
COMPLIANCE: CE conforms
Control mode: Standard DMX512, Automatic and Master/ slave mode/and sound
￥0.00￥0.00
