    W-12 Stage Equipment Power Distribution 4 Road 20A American Edison + 4 Ways 19pin Output Power Distributor
    W-12 Stage Equipment Power Distribution 4 Road 20A American Edison + 4 Ways 19pin Output Power Distributor
    ❤ Add to collection

  • W-12 Stage Equipment Power Distribution 4 Road 20A American Edison + 4 Ways 19pin Output Power Distributor

    Place of Origin: China

    Product  :: 4 road 20A American Edison + 4 ways 19pin output Power Distributor

    Power supply:: three-phase

    OEM service:: Yes

    Display: With three-phase A.B.C direct-reading

    Output: 4 road 20A American Edison + 4 ways 19pin output

    Normal working environment: Ambient temperature: 0-±45C

    Model: BPD0420419C+

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Place of Origin: China

Product  :: 4 road 20A American Edison + 4 ways 19pin output Power Distributor

Power supply:: three-phase

OEM service:: Yes

Display: With three-phase A.B.C direct-reading

Output: 4 road 20A American Edison + 4 ways 19pin output

Normal working environment: Ambient temperature: 0-±45C

Model: BPD0420419C+

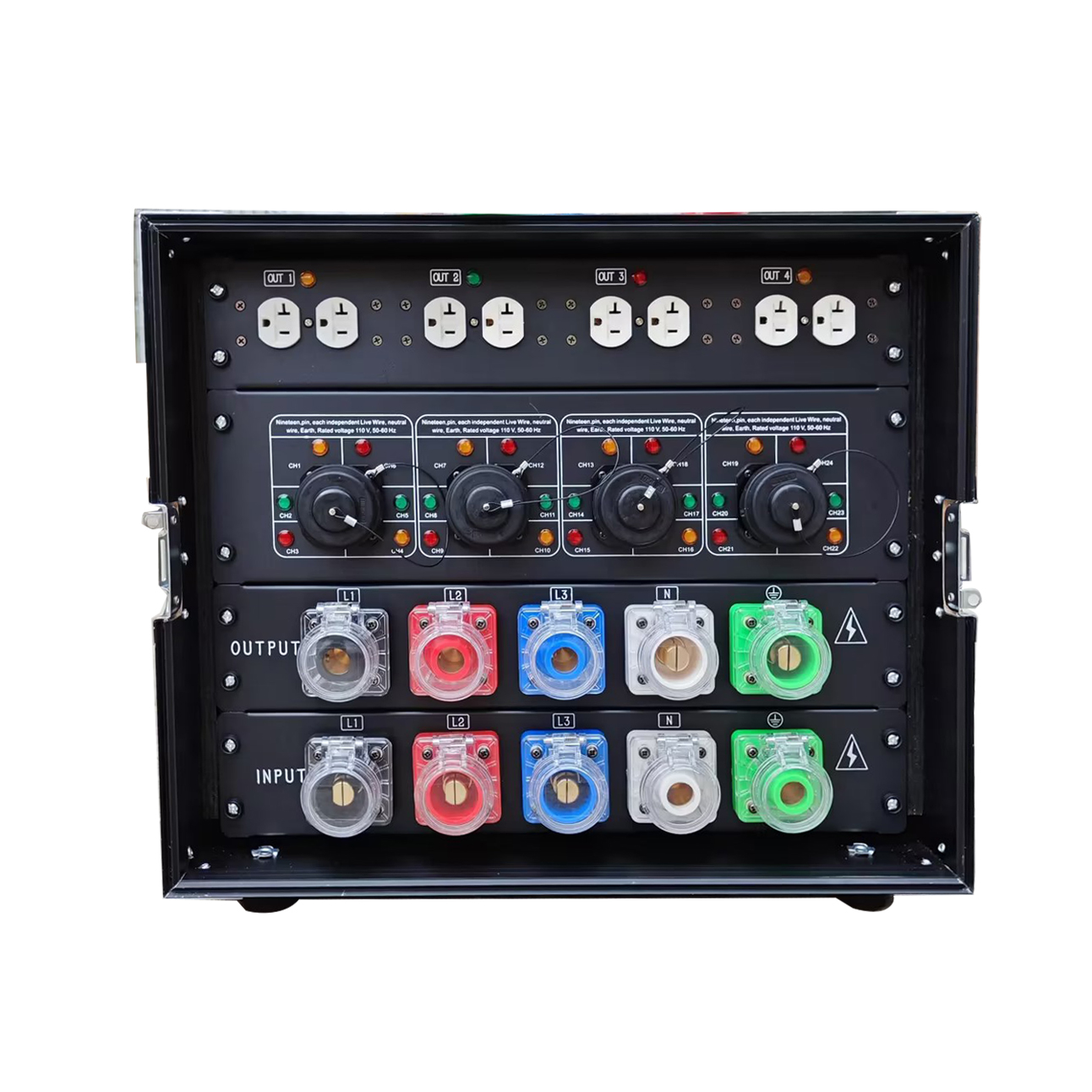

 Stage Equipment  4 road 20A American Edison + 4 ways 19pin output Power Distributor



Product DescriptionPr
Product name:Stage Equipment  4 road 20A American Edison + 4 ways 19pin output Power Distributor
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: self-locking 400A rhino plug (IN & OUT)
Display: With three-phase A.B.C direct-reading independent liquid crystal current and voltmeter display, various data can be monitored in real time without switching
Output: 4-way US plug + 4-way 19-pin 110V output, each output has an indicator light display
Body: It adopts exquisite and durable double-layer shock-proof hexagonal plate; 11U standard cabinet.
Control system: the total control adopts 200A total air switch; each independent separate air switch is C20A, with overload and short circuit double protection
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with LED blue light work light
Gross Weight: 34kg
Product size (mm): 54*55*47cm



More details of our  Stage Equipment  4 road 20A American Edison + 4 ways 19pin output Power Distributor   as below
