HOME >> Power Distributor >> Stage Distro 63A 5pin Input 24 Road 16A EU Plug Output Power Distributor
  • Stage Distro 63A 5pin Input 24 Road 16A EU Plug Output Power Distributor
    Stage Distro 63A 5pin Input 24 Road 16A EU Plug Output Power Distributor
    Stage Distro 63A 5pin Input 24 Road 16A EU Plug Output Power Distributor
    Stage Distro 63A 5pin Input 24 Road 16A EU Plug Output Power Distributor
    ❤ Add to collection

  • Stage Distro 63A 5pin Input 24 Road 16A EU Plug Output Power Distributor

    Place of Origin: Guangdong, China

    Brand Name: NWIITC

    Model Number: BPD2420

    Rated Voltage: three phase

    Rated Current: 63A

    Product Name: Stage distro 63A 5PIN input 24 road 16A EU output power distributor

    Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

    Input current: 63A 5 PIN

    Output: 24 channels 16A EU plug output

    Dimensions: 67x60x88cm

    Color: black

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPD2420

Rated Voltage: three phase

Rated Current: 63A

Product Name: Stage distro 63A 5PIN input 24 road 16A EU output power distributor

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

Input current: 63A 5 PIN

Output: 24 channels 16A EU plug output

Dimensions: 67x60x88cm

Color: black

Stage distro 63A 5pin input 24 road 16A EU plug output power distributor

Product Description
Product name:Stage distro 63A 5pin input 24 road 16A EU plug output power distributor
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: 63A 5 PIN

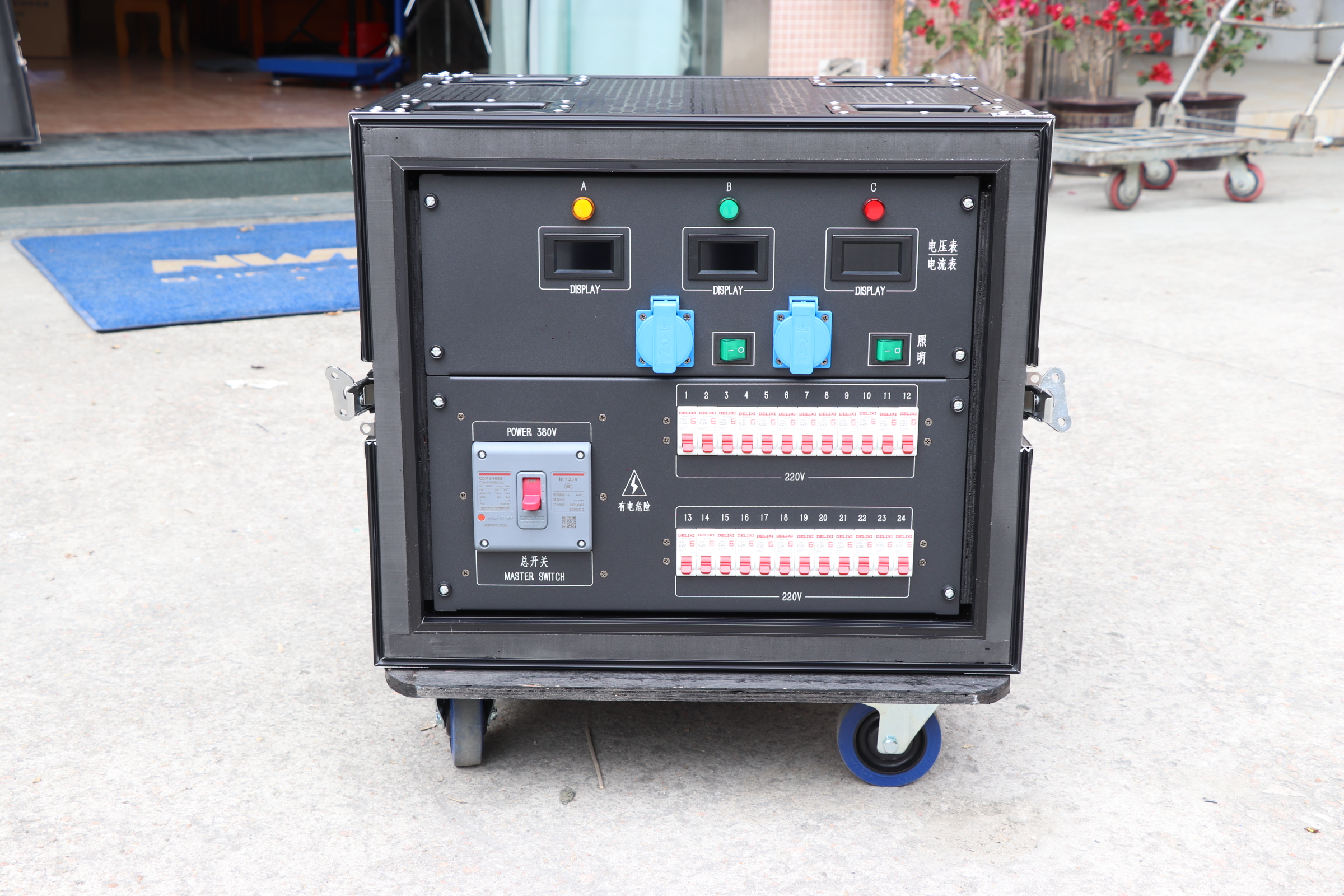

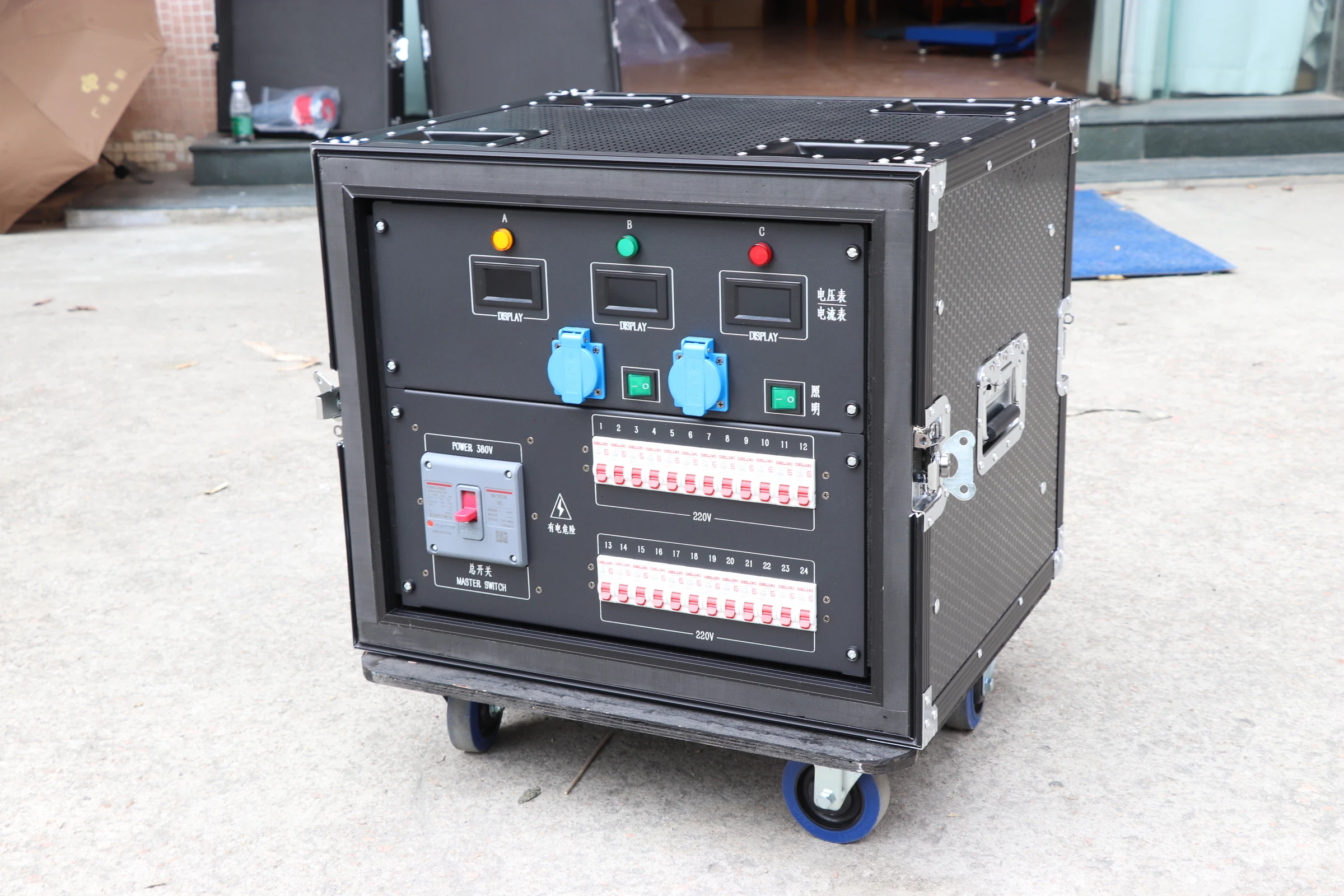

Display: With three-phase A.B.C direct-reading independent LCD current and voltmeter display, various data can be monitored in real time without switching

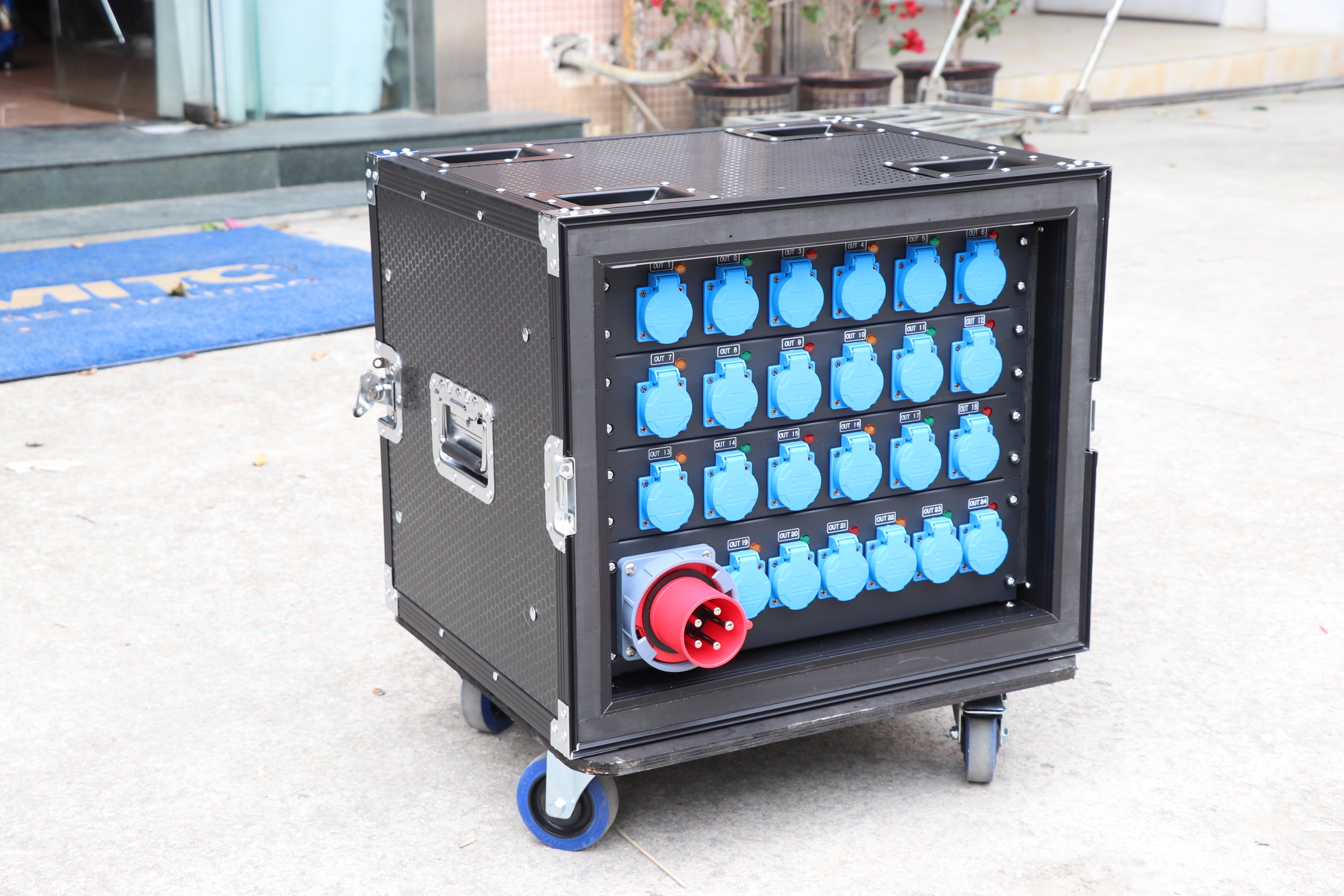

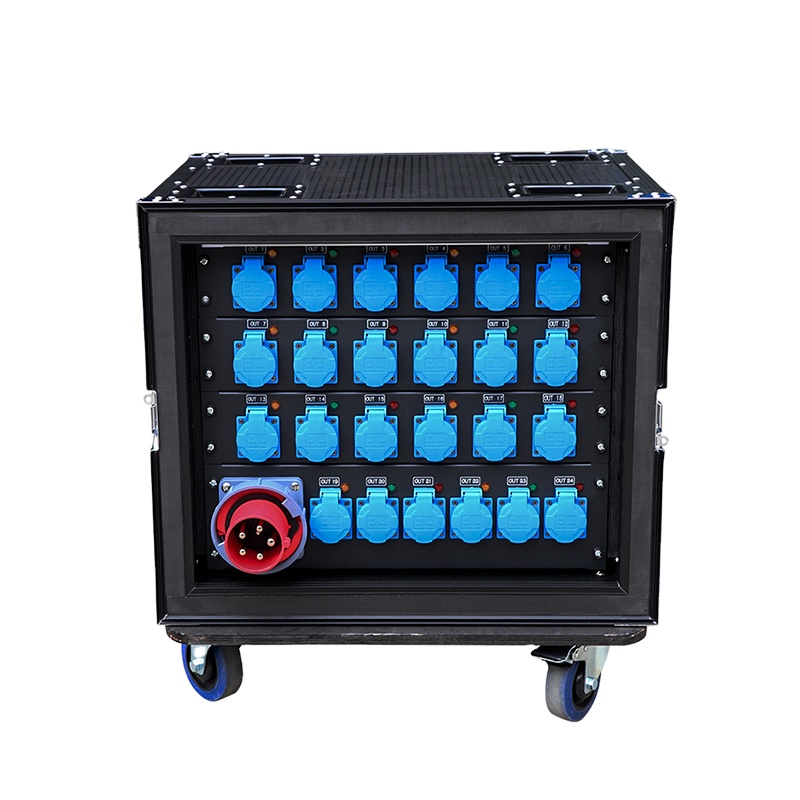

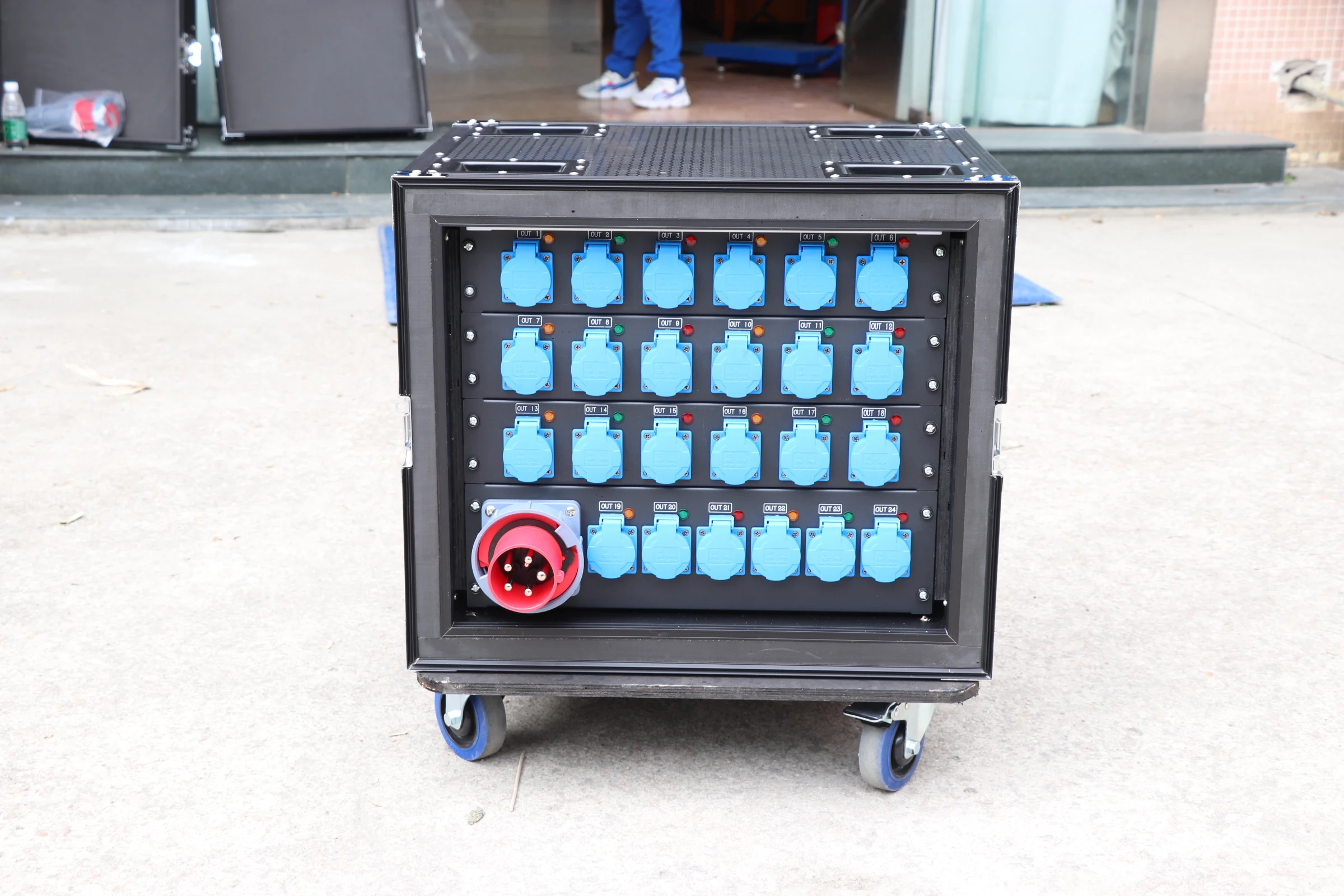

Output: 24 channels 16A waterproof output, each output with indicator light display

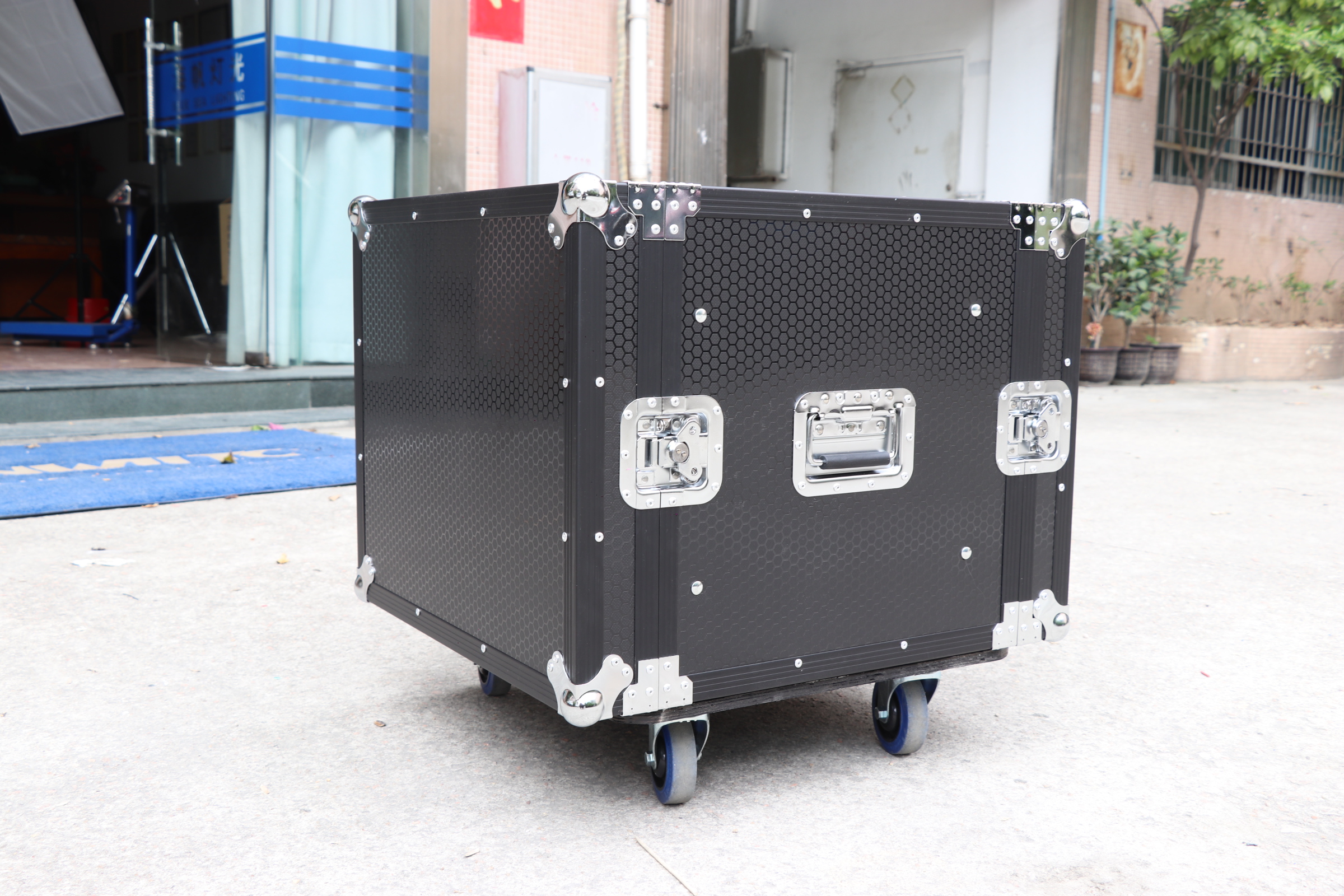

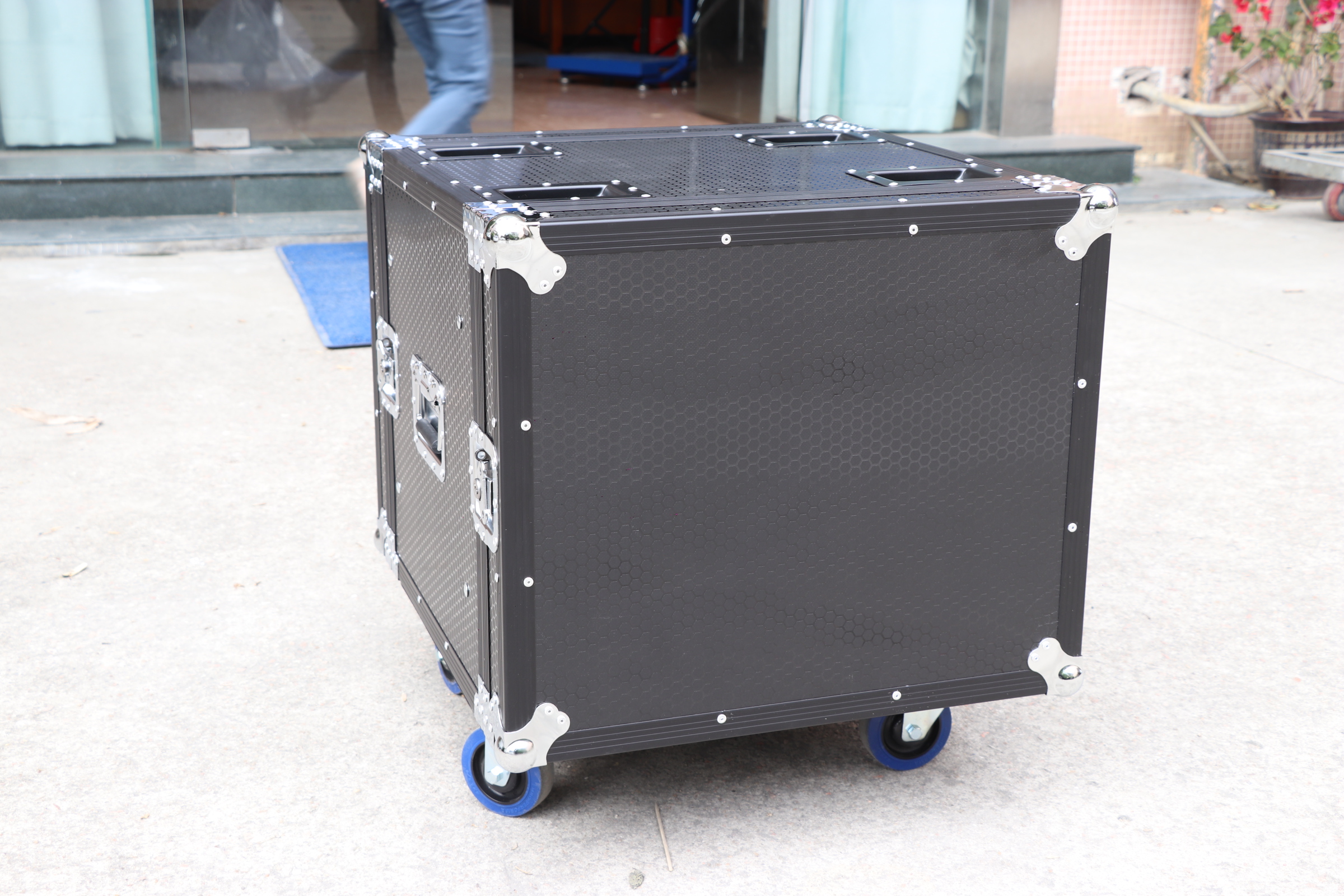

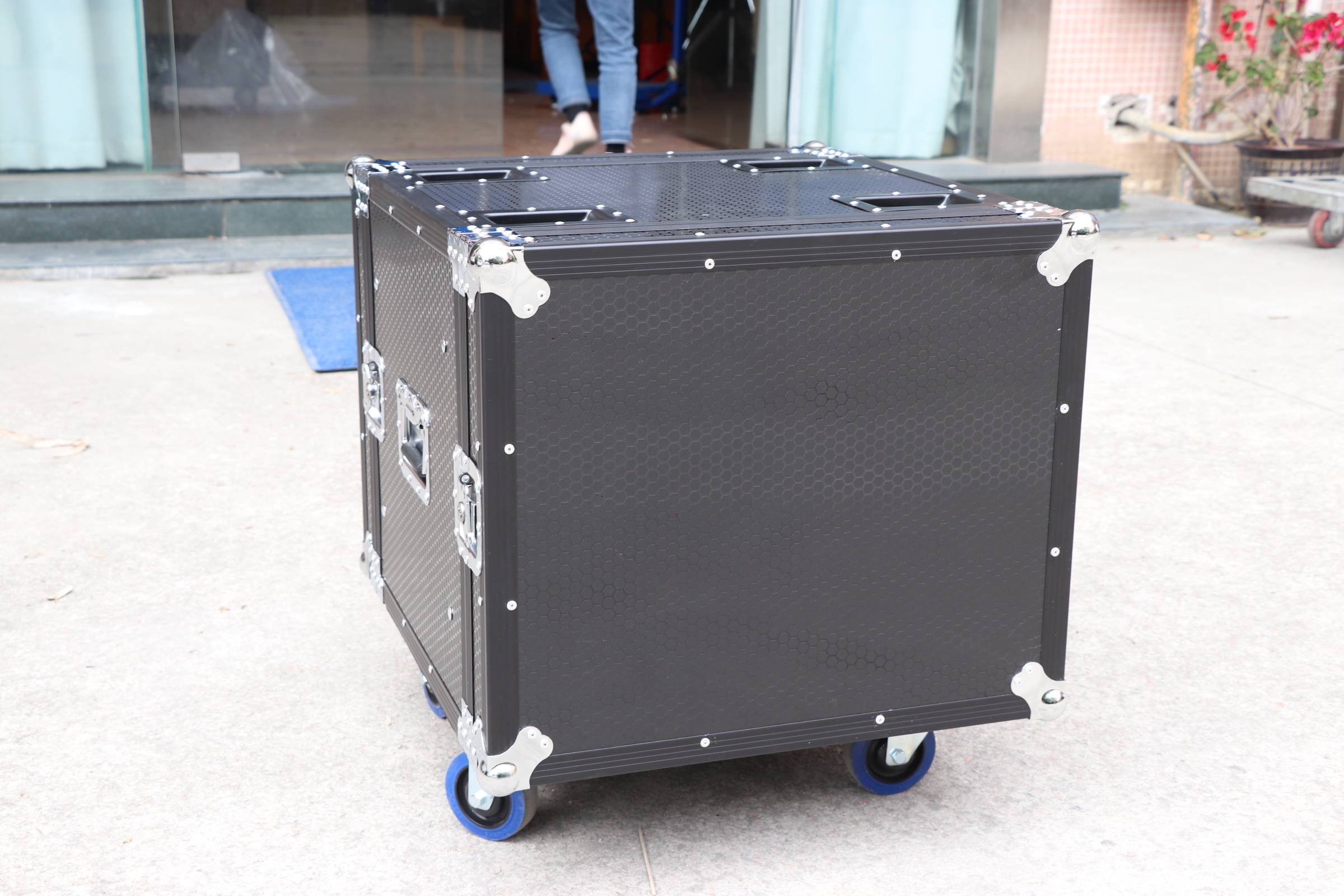

Body: Use exquisite double-layer shock-proof hexagonal pattern plate; 14U standard cabinet.
Control system: 200A main circuit breaker is used for the main control; each independent circuit breaker C20A, with double protection of overload and short circuit
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with LED blue light work light
Product size (mm): L670×W600×H880



More details of our Stage distro 63A 5pin input 24 road 16A EU plug output power distributor as below:

Stage distro 63A 5pin input 24 road 16A EU plug output power distributor
