HOME >> Power Distributor >> Pro 4 Road L14-30 Twist Lock 16 Way 19pin Socapex Output Power Distro
  • Pro 4 Road L14-30 Twist Lock 16 Way 19pin Socapex Output Power Distro

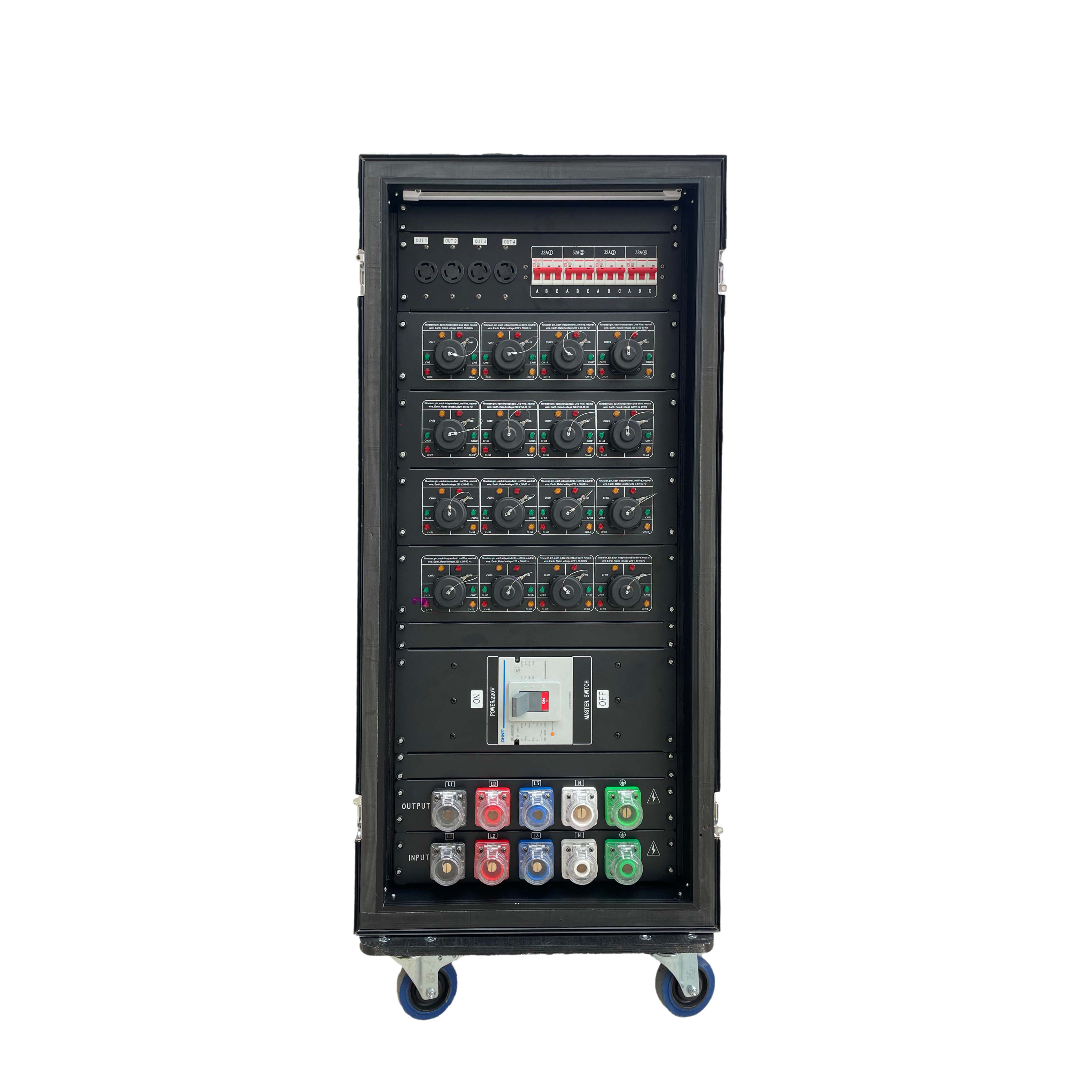

    Pro 4 Road L14-30 Twist Lock 16 Way 19pin Socapex Output Power Distro
    Pro 4 Road L14-30 Twist Lock 16 Way 19pin Socapex Output Power Distro
    ❤ Add to collection

  • Pro 4 Road L14-30 Twist Lock 16 Way 19pin Socapex Output Power Distro

    Place of Origin: Guangdong, China

    Brand Name: NWIITC

    Model Number: BPDC11

    Rated Voltage: three phase

    Rated Current: 400A

    Product Name: Pro 4 road L14-30 twist lock 16 way 19pin socapex output power distro

    Power supply: three-phase five-wire system AC220V±10%, frequency 50Hz/60Hz±5%

    Input current: self-locking 400A rhino plug; reverse output 400A

    Output: 19pin (220V)*16pcs+L14-30*4pcs

    Color: black

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPDC11

Rated Voltage: three phase

Rated Current: 400A

Product Name: Pro 4 road L14-30 twist lock 16 way 19pin socapex output power distro

Power supply: three-phase five-wire system AC220V±10%, frequency 50Hz/60Hz±5%

Input current: self-locking 400A rhino plug; reverse output 400A

Output: 19pin (220V)*16pcs+L14-30*4pcs

Color: black

Pro 4 road L14-30 twist lock 16 way 19pin socapex output power distro

Product Description
Product name:Pro 4 road L14-30 twist lock 16 way 19pin socapex output power distro
Power supply: three-phase five-wire system AC220V±10%, frequency 50Hz/60Hz±5%
Input current: self-locking 400A rhino plug; reverse output 400A
Display: With three-phase A.B.C direct-reading independent liquid crystal current and voltmeter display, various data can be monitored in real time without switching
Output: 19pin (220V)*16pcs+L14-30*4Pcs
Body: using exquisite and durable double-layer shockproof hexagonal board
Control system: the main control adopts 250A main air switch; each independent separate air switch is C20A, with overload and short circuit double protection
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with LED blue light work light



More details of our Pro 4 road L14-30 twist lock 16 way 19pin socapex output power distro as below:

Pro 4 road L14-30 twist lock 16 way 19pin socapex output power distro
