Pro 4chs 125A 5pin+6chs 63A 5pin+12chs 5pin Output Power Distro Distributor Distribution

Place of Origin: Guangdong, China
Brand Name: NWIITC
Model Number: BPDC32
Rated Voltage: three phase
Rated Current: 400A
Product Name: Pro 4chs 125A 5pin+6chs 63A 5pin+12chs 5pin Output power distro
Output: 4-way 125A 5P + 6-way 63A 5P + 12-way 32A 5P
Input current: 400A Camlock (black, red, blue, white, green) one in and one out
Product size (mm): 670*600*1200
- Price：￥0

  List price：￥0.00

  MemberPrice：
  Ordinary：￥0.00

  VIP：￥0.00

  Distribute
- Satisfaction：

  Sales： 0

  Review： 0
Weight：0.000KG
- Quantity：
- Add to the cart

  Buy now

Description

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPDC32

Rated Voltage: three phase

Rated Current: 400A

Product Name: Pro 4chs 125A 5pin+6chs 63A 5pin+12chs 5pin Output power distro

Output: 4-way 125A 5P + 6-way 63A 5P + 12-way 32A 5P

Input current: 400A Camlock (black, red, blue, white, green) one in and one out

Product size (mm): 670*600*1200

Pro 4chs 125A 5pin+6chs 63A 5pin+12chs 5pin Output power distro distributor distribution

Product Description

Product name:	Pro 4chs 125A 5pin+6chs 63A 5pin+12chs 5pin Output power distro distributor distribution

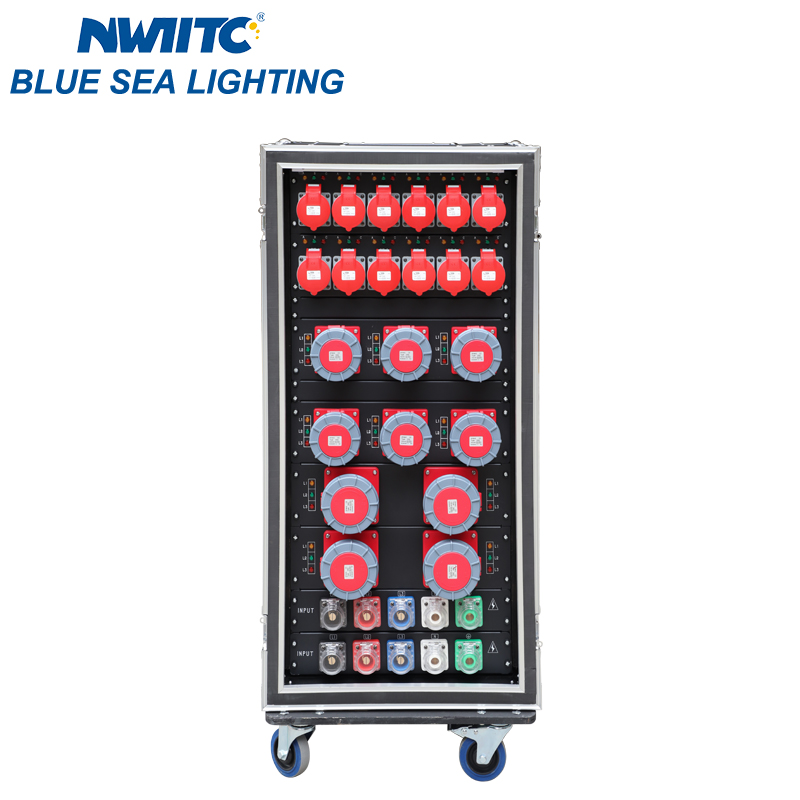

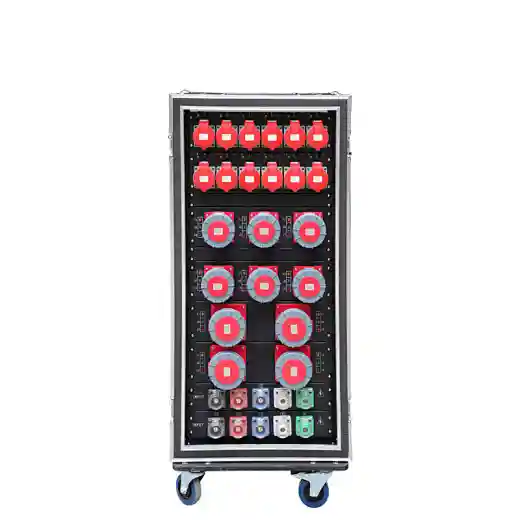

Output:	4-way 125A 5P + 6-way 63A 5P + 12-way 32A 5P, each output with indicator light
Input current:	400A Camlock (black, red, blue, white, green) one in and one out

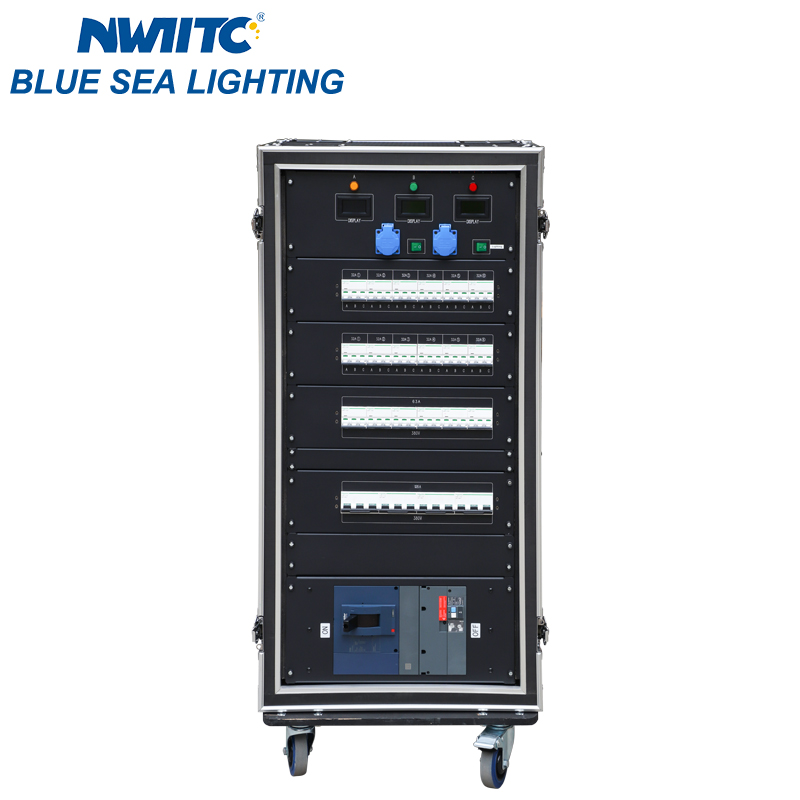

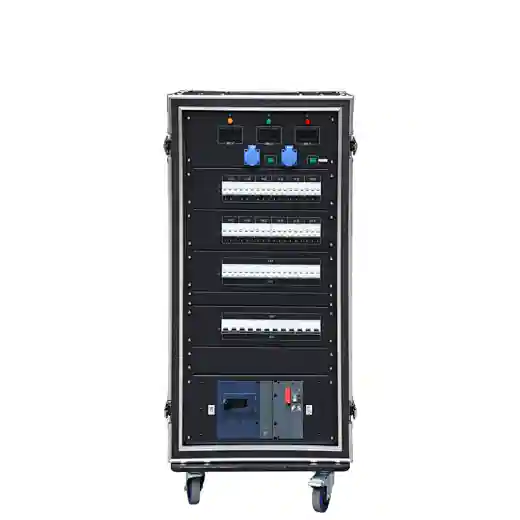

Display:	With three-phase A.B.C direct-reading independent LCD current and voltage meter display
Control system:	The main control adopts 400A/Rccd leakage protection Schneider main circuit breaker; each independent Schneider circuit breaker 3p32A, 3P63A, 3P 125A, with overload and short circuit dual protection
Dimensions (mm):	6706001200

More details of our Pro 4chs 125A 5pin+6chs 63A 5pin+12chs 5pin Output power distro distributor distribution as below:

Pro 4chs 125A 5pin+6chs 63A 5pin+12chs 5pin Output power distro distributor distribution
