Lighting solutions service: Lighting and circuitry design, Project Installation
Input Voltage(V): AC100V-240V, 50-60Hz
Type: Beam Lights
Lifespan (hours): 50000
Product Weight（kg）: 7.5 KG
Lamp Luminous Flux(lm): 18000
Working Temperature(℃): -30 - 40
Place of Origin: Guangdong, China
IP Rating: IP65
Brand Name: NWIITC
Emitting Color: rgbwa uv 6in1
Application: Wedding, night club, party, etc.
Material: Aluminum+plastic
Light Source: LED
Control Method: DMX512
Warranty(Year): 1-Year
Product name: Pro DJ waterproof 18x18w RGBWA UV 6in1 pixel bar LED wall washer light
Light source: 18x18W RGBWA UV 6 in 1 pixel control
Lens angle: 15°, 25°, 40° optional
Operation mode: DMX, master/slave, voice control mode
DMX channel: 6/10/108CH
Dimming: 0-100% linear dimming
Net weight: 7.5KG
Size: 100*9.5*17CM
Outdoor RGBWA UV LED Wall Washer Product Description
Outdoor IP65 Pixel Control RGBWA UV Lighting

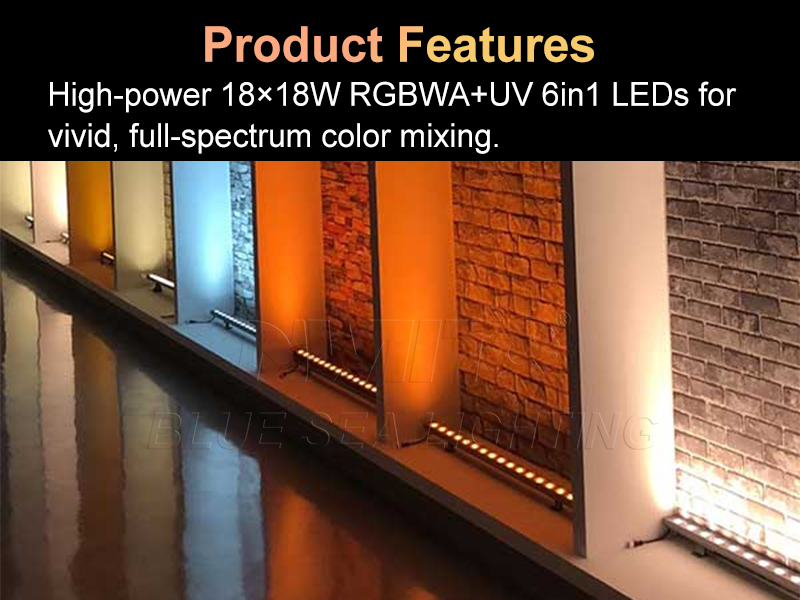

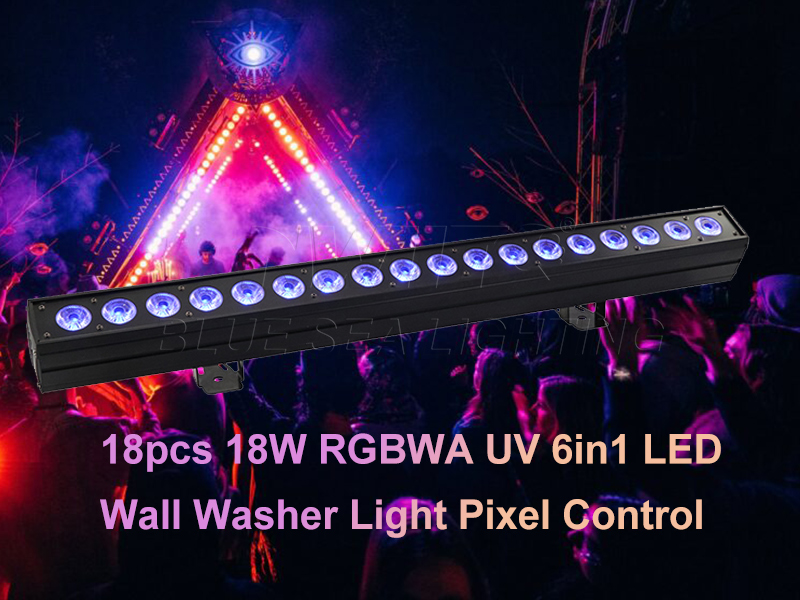

The Outdoor 18pcs 18W RGBWA UV 6in1 Pixel LED Wall Washer features 18×18W RGBWA UV LEDs with pixel control, delivering rich colors and dynamic effects.
With 15°/25°/40° beam angles and support for DMX, master/slave, and sound control(6/10/108 channels), it enables precise programming and creative lighting design.
Its IP65 waterproof rating, lightweight 7.5 kg build, and compact 100×9.5×17 cmsize ensure stable performance and easy installation.

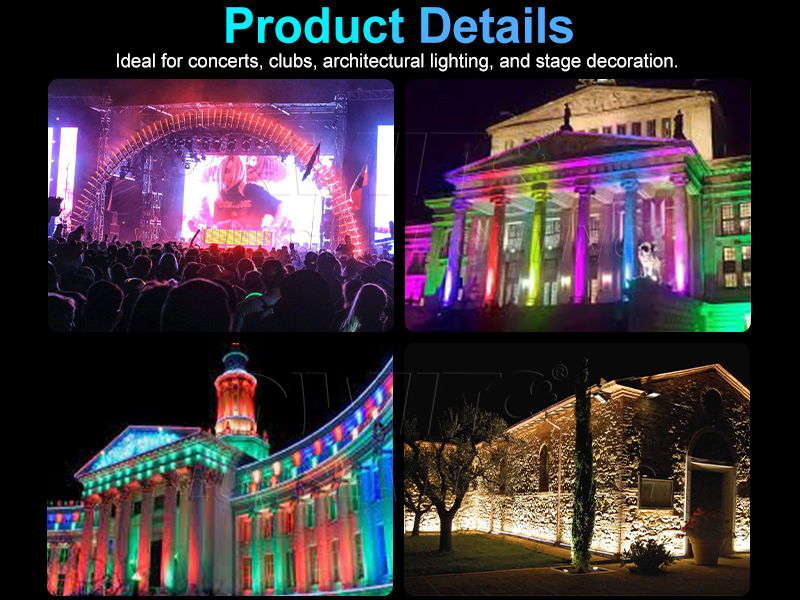

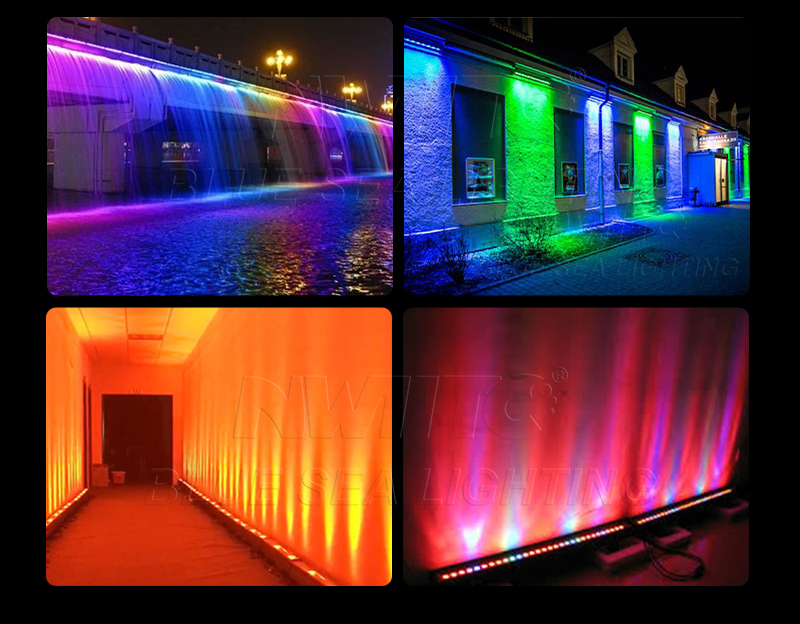

Outdoor RGBWA UV LED Wall Washer Application Scenarios
Bluesea Lighting’s Outdoor 18pcs 18W RGBWA UV 6in1 Pixel LED Wall Washer is perfect for a wide range of applications, including large-scale performances,music festivals, architectural lighting, theme parks, landscape illumination,and commercial events.
Outdoor RGBWA UV LED Wall Washer Technical Specifications
Parameter
value
Input voltage
100-240Vac, 50-60Hz
Light source
18×18W RGBWA UV 6 in 1 pixel control
Rated power
180W
Lens angle
15°, 25° 40° optional
Operation mode
DMX, master/slave, voice control mode
DMX channel
6/10/108CH
Dimming
0-100% linear dimming
Protection level
IP65
Net weight
7.5KG
Size
100×9.5×17CM
Outdoor RGBWA UV LED Wall WasherApplication Benefits
Outdoor Durability
Built with an IP65 waterproof rating, this fixture
ensures stable performance in harsh outdoor
environments.
Its compact 100×9.5×17 cm sizeand lightweight
7.5 kg design make installationand transport fast
and efficient.

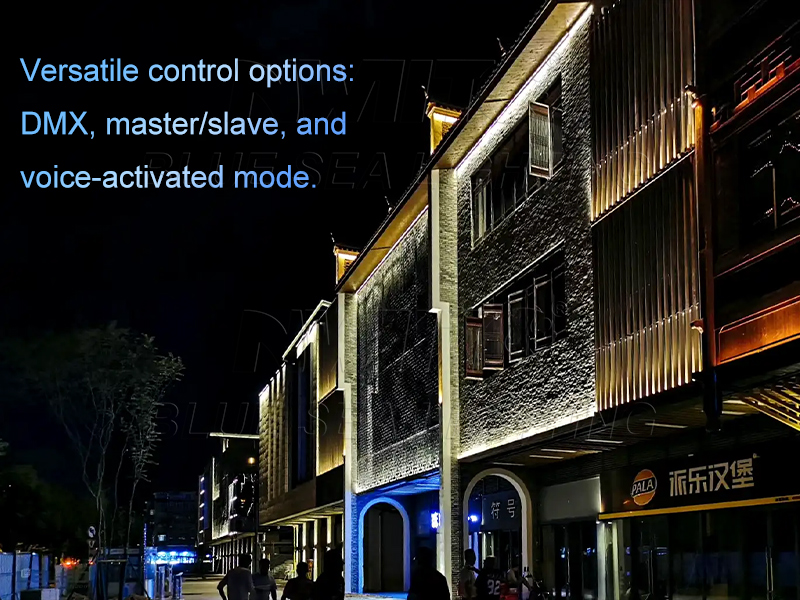

Control Options
Supports DMX, master/slave, and voice-activated
modes with 6/10/108 DMX channels, allowing
precise programming and creative
light shows for various applications.

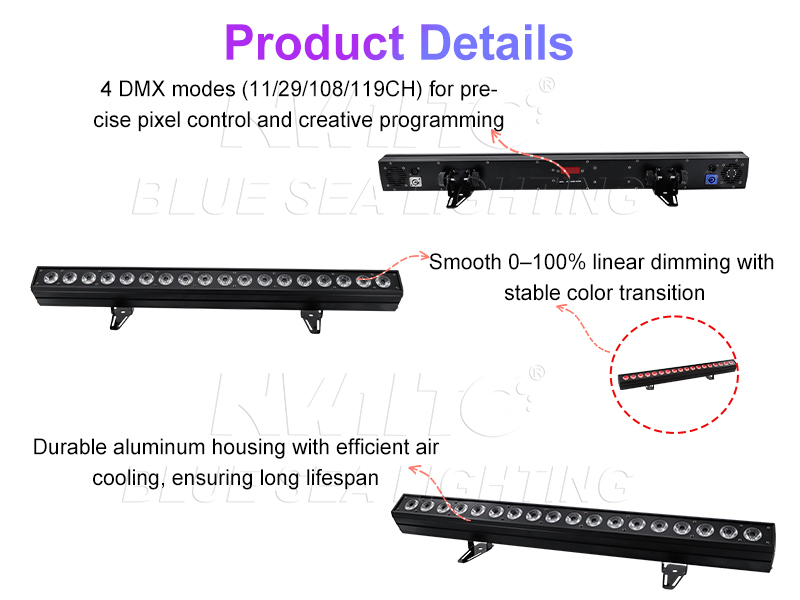

Product Detalis
The Outdoor 18pcs 18W RGBWA UV 6in1
Pixel LED WallWasher features 4 DMX modes,
smooth 0–100% dimming, and a durable aluminum
housing with efficient cooling,ensuring stable
performance and a long lifespan.

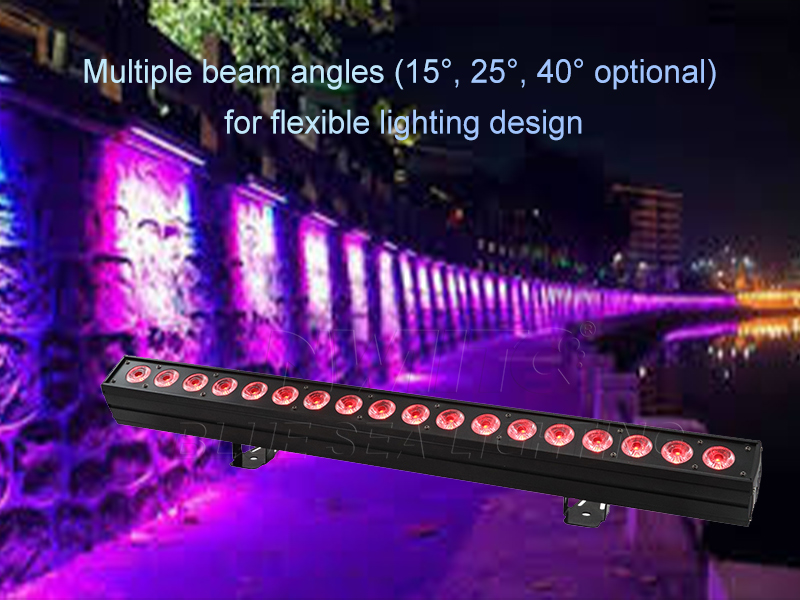

Optics & Effects
Multiple beam angle options (15°, 25°, 40°)provide versatile lighting coverage, making it suitable for architectural lighting, stage backgrounds,and landscape illumination.
