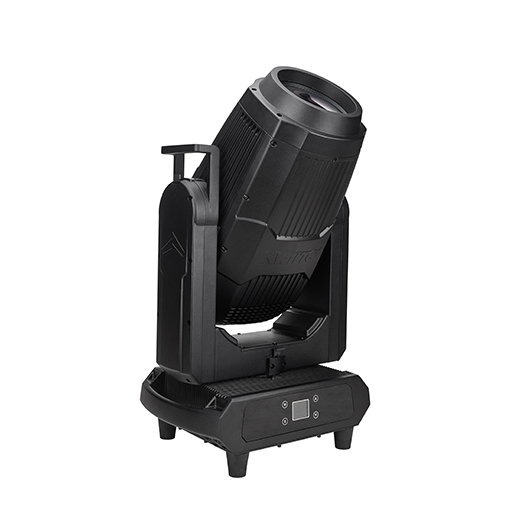

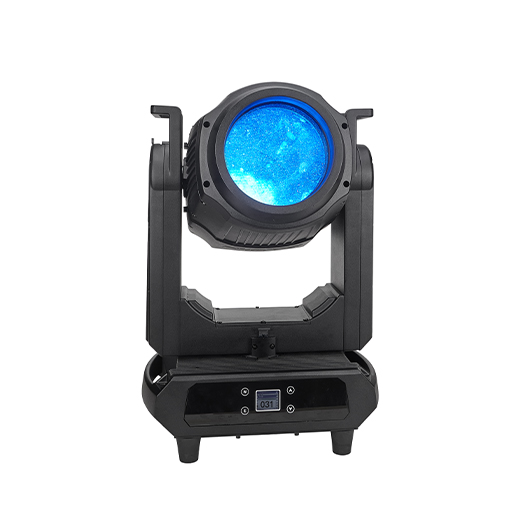

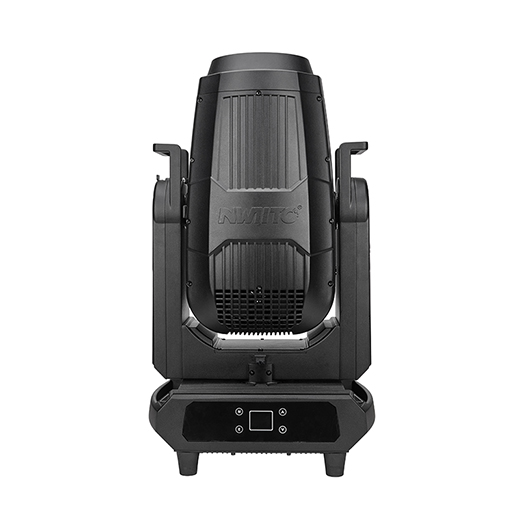

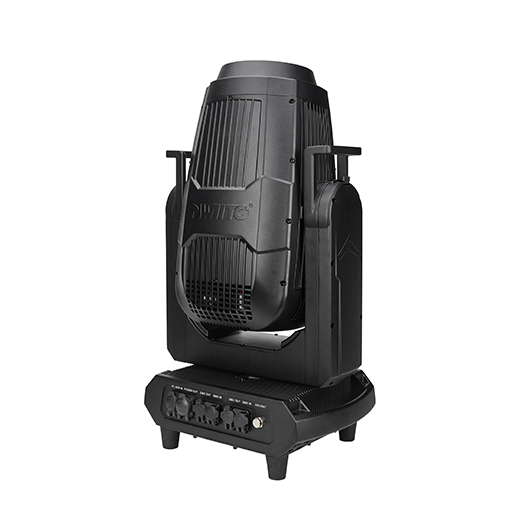

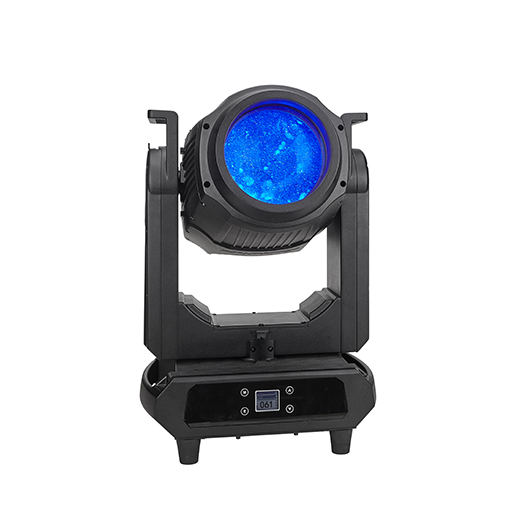

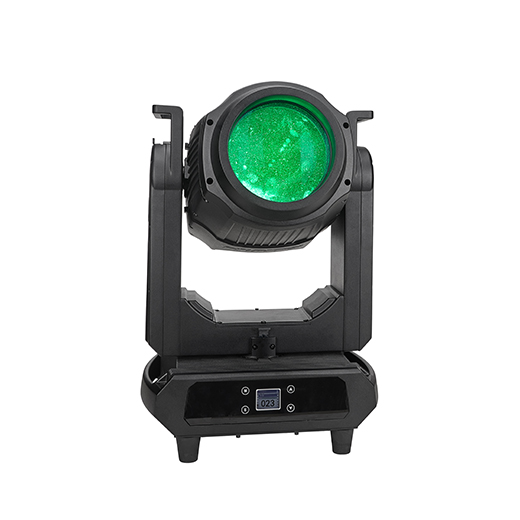

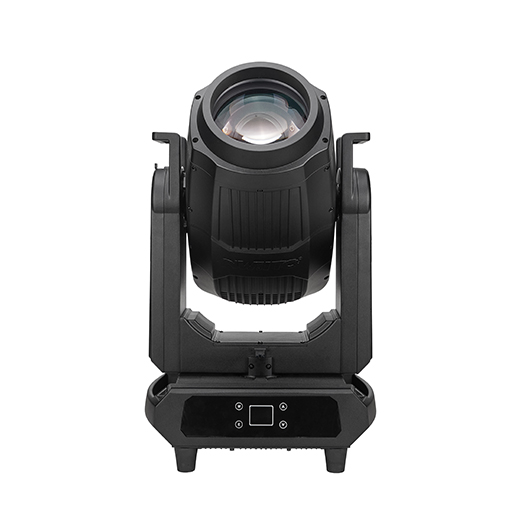

Powerful 600W LED Engine: Delivers high-intensity output with exceptional brightness, stable performance, and a long service life for professional stage applications.
4-in-1 Hybrid Lighting: Combines beam, spot, wash, and framing functions in one fixture for versatile stage creativity.
IP66 Outdoor Protection: Advanced waterproof and dustproof design ensures reliable operation in concerts, festivals, and outdoor events.
CMY + CTO Color System: Independent CMY mixing and linear CTO adjustment create rich colors and precise color transitions.
Precision Framing System: Four independent framing blades provide accurate beam shaping, cutting, and creative projection effects.
Wide Zoom Range: Smooth 3.5°-52° zoom adjustment delivers sharp beams, focused spots, and wide-area washes.
Dynamic Visual Effects: Built-in prism, gobo, frost, iris, flame simulation, and water flow effects enhance stage expressions.
High-Precision Movement: 16-bit pan and tilt control delivers smooth, fast, and accurate positioning for dynamic performances.
Professional Optical Performance: Large-diameter lens system provides powerful projection, clear beams, and outstanding light output.
Smart Control System: Supports DMX512 and RDM protocols for flexible programming and seamless integration.
Durable Magnesium Alloy Housing: Aviation-grade construction offers excellent heat resistance, lightweight design, and long-lasting reliability.
Input Voltage: AC100-240V, 50/60Hz
Rated Power: 730W
Light Source: 600W LED Module
LED Lifespan: 50,000 hours
Color Temperature: 9000K
Effective Lens Diameter: 145mm
Zoom Angle: 3.5°-52°
Control Mode: DMX512, RDM
Channel Modes: 40CH Framing / 31A CH F-Wash / 31B CH Spot / 22CH Wash
Display System: LCD display, Chinese and English menu, 180° rotatable
Colors: 7 Colors + White
Color Mixing System: Independent CMY Color Mixing System
Color Temperature Adjustment: Independent CTO Linear Adjustment 2800K-7000K
Prism Wheel: Bi-directional rotating 4-facet prism + 4-facet linear prism
Effect Wheel: Dynamic effects including flame simulation and flowing water effects
Fixed Gobo Wheel: 11 Fixed Gobos + White
Rotating Gobo Wheel: 8 Replaceable Gobos + White
Framing System: 4 Independent Framing Blades, each blade can block light individually and rotate ±60°
Frost System: Light Frost Filter and Medium Frost Filter
Iris System: 5%-100% Smooth Adjustment
Housing Material: Aviation-grade die-cast magnesium alloy, flame retardant, high-temperature resistant, with folding clamps
Dimming System: 0-100% Linear Dimming
Strobe System: Maximum frequency up to 25Hz, with random strobe and pulse strobe modes
Pan Movement: 540° (16-bit precision scanning)
Tilt Movement: 270° (16-bit precision scanning)
Protection Rating: IP66
Working Temperature: 0-45℃
Product Dimensions: L297 × W270 × H657mm
Net Weight: 27.75kg
- User name Member Level Quantity Specification Purchase Date
- Satisfaction ：
-
-
.jpg)
.jpg)
.jpg)
Super Bright 1000w/1200w Profile Spot Beam Wash Framing 4in1 Hybrid CMY CTO Led Moving Head Light
Ultra-Bright 1200W LED: Powerful output with long 50,000h lifespan.
5–50° Creative Zoom: Sharp beams to wide spots in one fixture.
Pro Framing System: 4 blades with full rotation for precise shaping.
Rich Color Performance: Smooth CMY + CTO for perfect tones.
HD Gobo Effects: Rotating glass gobos and 4-facet prism for stunning visuals.
Silent & Fast Movement: 3-phase motors deliver smooth, quiet operation.
Soft Light Control: Adjustable edge for cinematic looks.
Rugged Build: Aluminum + V0 flame-retardant housing for extreme durability.
DMX + RDM Ready: Fully compatible with professional control systems.
￥0.00￥0.00 -
.jpg)
.jpg)
.jpg)
1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO
1200w Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO
Input voltage: AC100-240V, 50/60Hz
Rated power: 1400W
Light source: 1020W LED module
LED life: 50,000 hours
Color temperature: 6500K
Caliber: 150mm Frontal lens for greater performance
Color rendering index: Standard mode Ra>70, high CRI mode Ra>90
Luminous flux: 38000LM
Signal interface: three-pin XLR (five-pin XLR optional)
Control mode: DMX512, RDM, Auto Mode, master-slave, Sound activation
Channel mode: 36CHs
Display system: 2.8-inch touch LCD display, Chinese and English display, 180-degree rotation
Fixed color: 6 colors + open position
Color mixing system: independent CMY color mixing system
Color temperature adjustment: independent CTO 2800K-6500K linear adjustment
Prisms: Rotating 3-faced prism+6-faced linear prism, two prisms can be overlaid
Effect wheel: dynamic effects such as stunning simulated dynamic flames, gurgling water, etc.
Fixed Gobo wheel: 11 plug-in fixed gobos with an outer diameter of 25.4mm+open position
Rotating gobo Wheel: 7 gobos (pluggable), outer diameter 26.9mm, effective diameter 16.5mm, thickness 1.1mm+Open position
Framing system: 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/- 90°
Frost system: Dual atomization system
Iris system: 6%~100% smooth adjustment
Beam Aperture: 5.5°~60° fast motorized linear zoom
Dimming system: 0-100% linear adjustment
Strobe system: the highest frequency can reach 25Hz, and random strobe and pulse strobe can be selected
Pan: 540° (16 bit precision scanning)
Tilt: 270° (16 bit precision scanning)
Pan/Tilt: Five-phase motor with magnetic encoding positioning function
Protection rate: IP20
Working environment: 0-45℃
Product size: 510*345*800(mm)
Carton size: 730*690*590 (mm)
Product net weight: 43KG
Product gross weight: 51.5KG
Product appearance: flame retardant, high temperature resistance, folding clamp￥0.00￥0.00 -
.jpg)
.jpg)
.jpg)
Magnesium Alloy IP Waterproof 800w Framing Beam Spot Wash 4in1 Led Moving Head With CMY CTO
800W LED Power: Bright, stable output
4-in-1 Function: Beam · Spot · Wash · Framing
Precision Framing: Clean, sharp light edges
CMY + CTO Color: Smooth mixing, accurate tones
Wide Zoom Range: From tight beam to wide wash
Dynamic Effects: Prism and effect wheel
IP65 Waterproof: Ready for outdoor shows
Magnesium Alloy Body: Strong and lightweight
Smooth Pan & Tilt: Fast, precise movement
￥0.00￥0.00 -
.jpg)
.jpg)
.jpg)
Outdoor IP65 Waterproof 800W Framing Beam Spot Wash 4in1 Hybrid Led Moving Head Light With CMY CTO
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, Project Installation
Input Voltage(V): AC100-240v/50-60Hz
Type: Moving Head Lights
Lifespan (hours): 50000
Product Weight（kg）: 25.5 KG
Working Temperature(℃): -25 - 45
Place of Origin: Guangdong, China
IP Rating: IP65
Brand Name: NWIITC
Emitting Color: RGBW
Application: DJ event architecture party church wedding exhibition, DJ Disco Studio Party Bar Club Wedding Theatre Architechtural light
Material: Aluminum+plastic
Light Source: LED, 800W white LED, 8000K
Control Method: DMX512
Warranty(Year): 2-Year
Install Style: Hanging clamp
Product name: Outdoor Waterproof 800w Framing Led Moving Head Light With CMY CTO
Power: 800W
Effects: Pixel, Zoom, LED, Beam, Wash
Dimmable: 0~100% linear dimmer
Zoom angle: 6°~ 53° linear zoom
Protection rate: IP65
COMPLIANCE: CE conforms
Control mode: Standard DMX512, Automatic and Master/ slave mode/and sound
Working Time (hours): 50000
Working Lifetime(Hour): 50000
￥0.00￥0.00
