  • 8ch L21-30 208V + 8ch 19pin 120V + 6ch Edison 120V 400A Camlock In/Out Power Distribution
    8ch L21-30 208V + 8ch 19pin 120V + 6ch Edison 120V 400A Camlock In/Out Power Distribution
    8ch L21-30 208V + 8ch 19pin 120V + 6ch Edison 120V 400A Camlock In/Out Power Distribution
    8ch L21-30 208V + 8ch 19pin 120V + 6ch Edison 120V 400A Camlock In/Out Power Distribution
    8ch L21-30 208V + 8ch 19pin 120V + 6ch Edison 120V 400A Camlock In/Out Power Distribution
    ❤ Add to collection

  • 8ch L21-30 208V + 8ch 19pin 120V + 6ch Edison 120V 400A Camlock In/Out Power Distribution


    • Ultra High-Capacity Power: 400A Camlock system built for demanding, large-scale power distribution

    • Full-System Visibility: Independent three-phase LCD meters for instant, real-time monitoring

    • Maximum Output Versatility: Edison, 19-pin, and L21-30 outputs for complete equipment compatibility

    • High-Density Power Distribution: Multi-channel outputs designed to handle complex setups with ease

    • Smart Status Indication: Individual indicator lights for fast and accurate operational checks

    • Professional Rack Integration: 19U standard rack design for organized and scalable installations

    • Rugged Anti-Shock Construction: Reinforced double-layer housing with durable hex-pattern panels

    • Advanced Protection System: 400A MCCB main breaker with independent branch breakers for total safety control



    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description


  • Ultra High-Capacity Power: 400A Camlock system built for demanding, large-scale power distribution

  • Full-System Visibility: Independent three-phase LCD meters for instant, real-time monitoring

  • Maximum Output Versatility: Edison, 19-pin, and L21-30 outputs for complete equipment compatibility

  • High-Density Power Distribution: Multi-channel outputs designed to handle complex setups with ease

  • Smart Status Indication: Individual indicator lights for fast and accurate operational checks

  • Professional Rack Integration: 19U standard rack design for organized and scalable installations

  • Rugged Anti-Shock Construction: Reinforced double-layer housing with durable hex-pattern panels

  • Advanced Protection System: 400A MCCB main breaker with independent branch breakers for total safety control



Input current: 400A Camlock in and out, US standard connectors (black, red, blue, white, green)

Display: Equipped with independent three-phase A/B/C direct-reading LCD ammeter and voltmeter, allowing real-time monitoring without switching

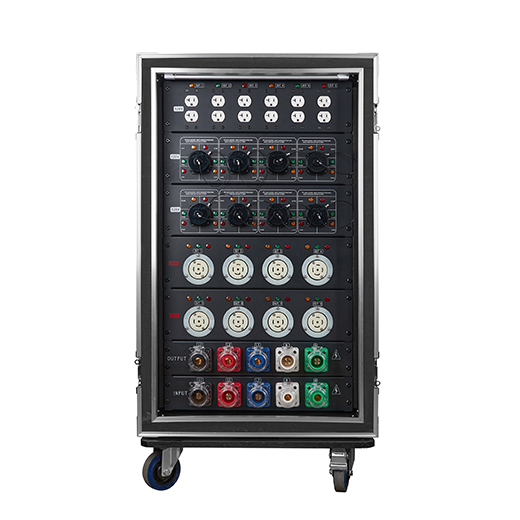

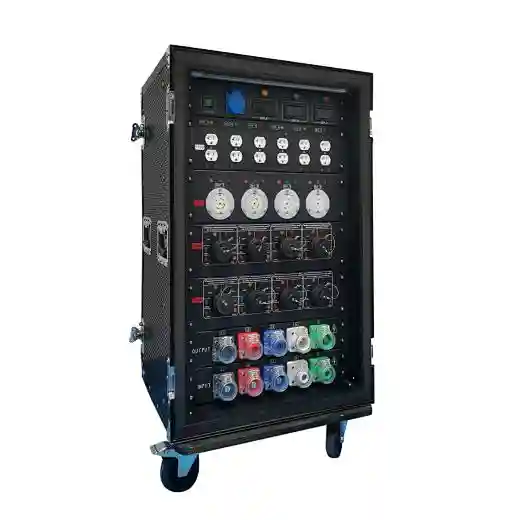

Output: 6-way Edison 120V (cross type) + 8-way 19-pin 120V + 8-way L21-30 208V outputs, each output with indicator light

Housing: Made of refined and durable double-layer anti-shock hex-pattern panels, 19U standard rack

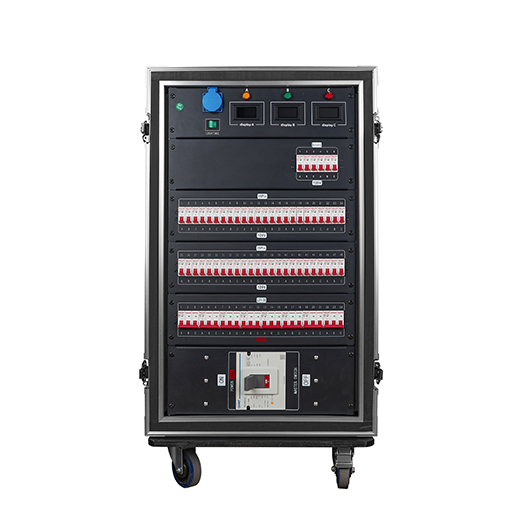

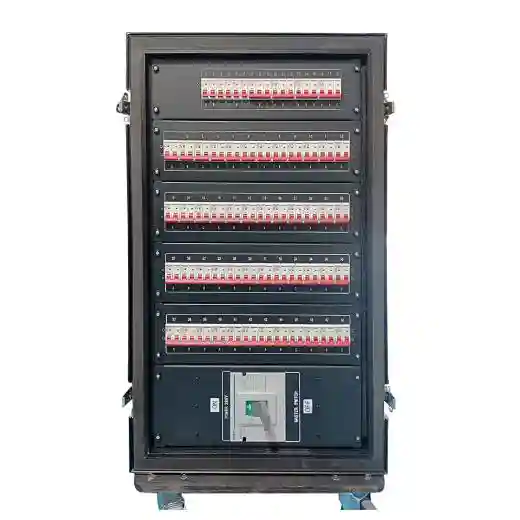

Control system: Main control uses 400A (MCCB) main breaker, each output with independent branch breaker
