HOME >> Power Distributor >> 63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor
  • 63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor
    63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor
    63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor
    63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor
    63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor
    ❤ Add to collection

  • 63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor

    Place of Origin: Guangdong, China

    Brand Name: NWIITC

    Model Number: BPDE2416635+

    Rated Voltage: three phase

    Rated Current: 63A

    Product Name: 63A 5Pin Input  customized  power distributor

    Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

    Input current: 63A 5Pin one in and one out

    Output: 24-way European plug output

    Dimensions: 67x60x65cm

    Application: for all events

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPDE2416635+

Rated Voltage: three phase

Rated Current: 63A

Product Name: 63A 5Pin Input  customized  power distributor

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

Input current: 63A 5Pin one in and one out

Output: 24-way European plug output

Dimensions: 67x60x65cm

Application: for all events

63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor

Product Description
Product name:63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: 63A 5 PIN

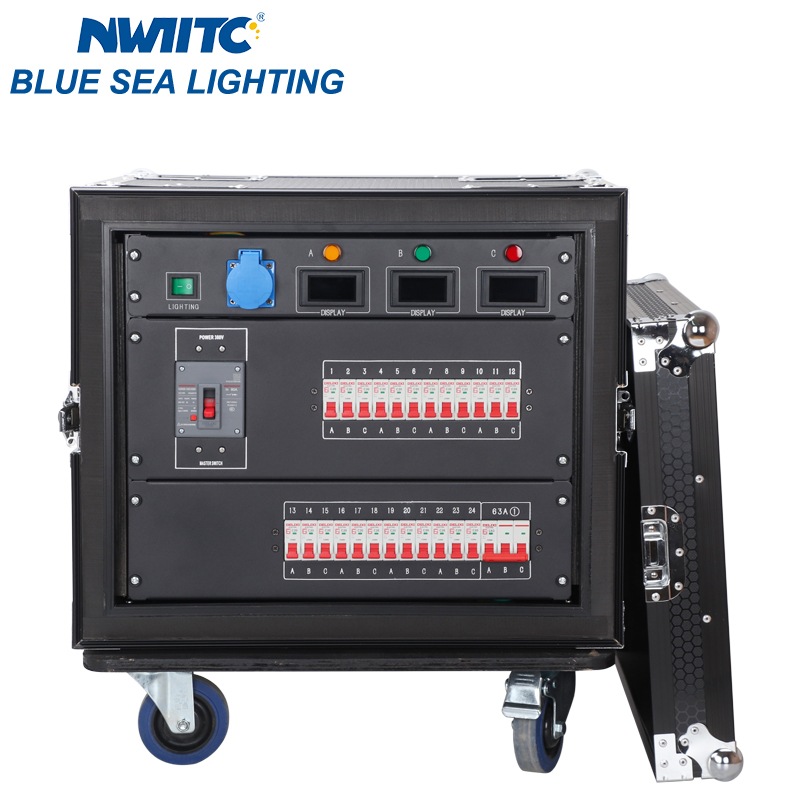

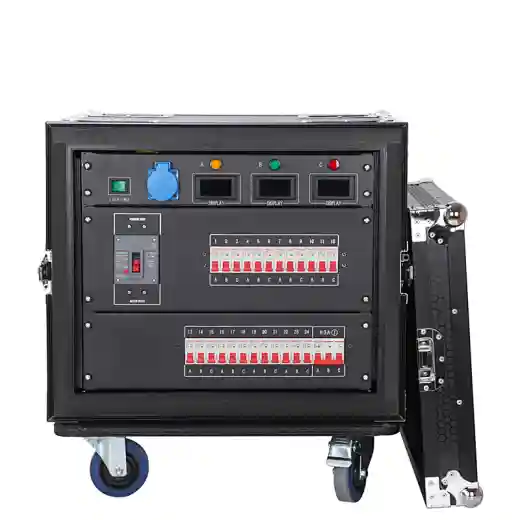

Display: With three-phase A.B.C direct-reading independent LCD current and voltmeter display, various data can be monitored in real time without switching

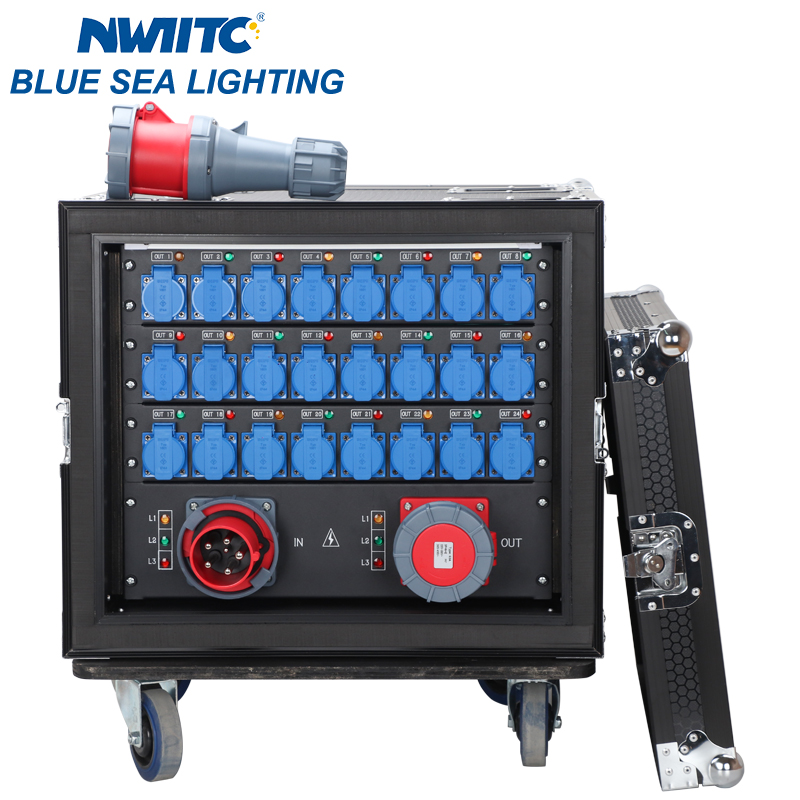

Output: Output 24 Road 16A Waterproof Output Power Distributor
Body: Use exquisite double-layer shock-proof hexagonal pattern plate; 14U standard cabinet.
Control system: 200A main circuit breaker is used for the main control; each independent circuit breaker C20A, with double protection of overload and short circuit
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with LED blue light work light
Product size (mm): L670×W600×H650



More details of our 63A 5Pin Input and Output 24 Road 16A Waterproof Output Power Distributor as below:
