HOME >> Power Distributor >> 63A 5PIN Input 24 Road 16A Waterproof Output Power Distributor Distro
  • 63A 5PIN Input 24 Road 16A Waterproof Output Power Distributor Distro
    63A 5PIN Input 24 Road 16A Waterproof Output Power Distributor Distro
    63A 5PIN Input 24 Road 16A Waterproof Output Power Distributor Distro
    ❤ Add to collection

  • 63A 5PIN Input 24 Road 16A Waterproof Output Power Distributor Distro

    Place of Origin: Guangdong, China

    Brand Name: NWIITC

    Model Number: BPD2416635A

    Rated Voltage: three phase

    Rated Current: 63A

    Product Name: 63A 5PIN input 24 Road 16A waterproof output power distributor distro

    Power supply: three-phase five-wire AC/220V±10%, frequency 50Hz/60Hz±5%

    Input current: 63A 5P with self-locking interlaced zero fire

    Output: 24 channels 16A waterproof

    Color: black

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPD2416635A

Rated Voltage: three phase

Rated Current: 63A

Product Name: 63A 5PIN input 24 Road 16A waterproof output power distributor distro

Power supply: three-phase five-wire AC/220V±10%, frequency 50Hz/60Hz±5%

Input current: 63A 5P with self-locking interlaced zero fire

Output: 24 channels 16A waterproof

Color: black

63A 5PIN input 24 Road 16A waterproof output power distributor distro

Product Description
Product name:63A 5PIN input 24 Road 16A waterproof output power distributor distro
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: 63A 5P with self-locking interlaced zero fire

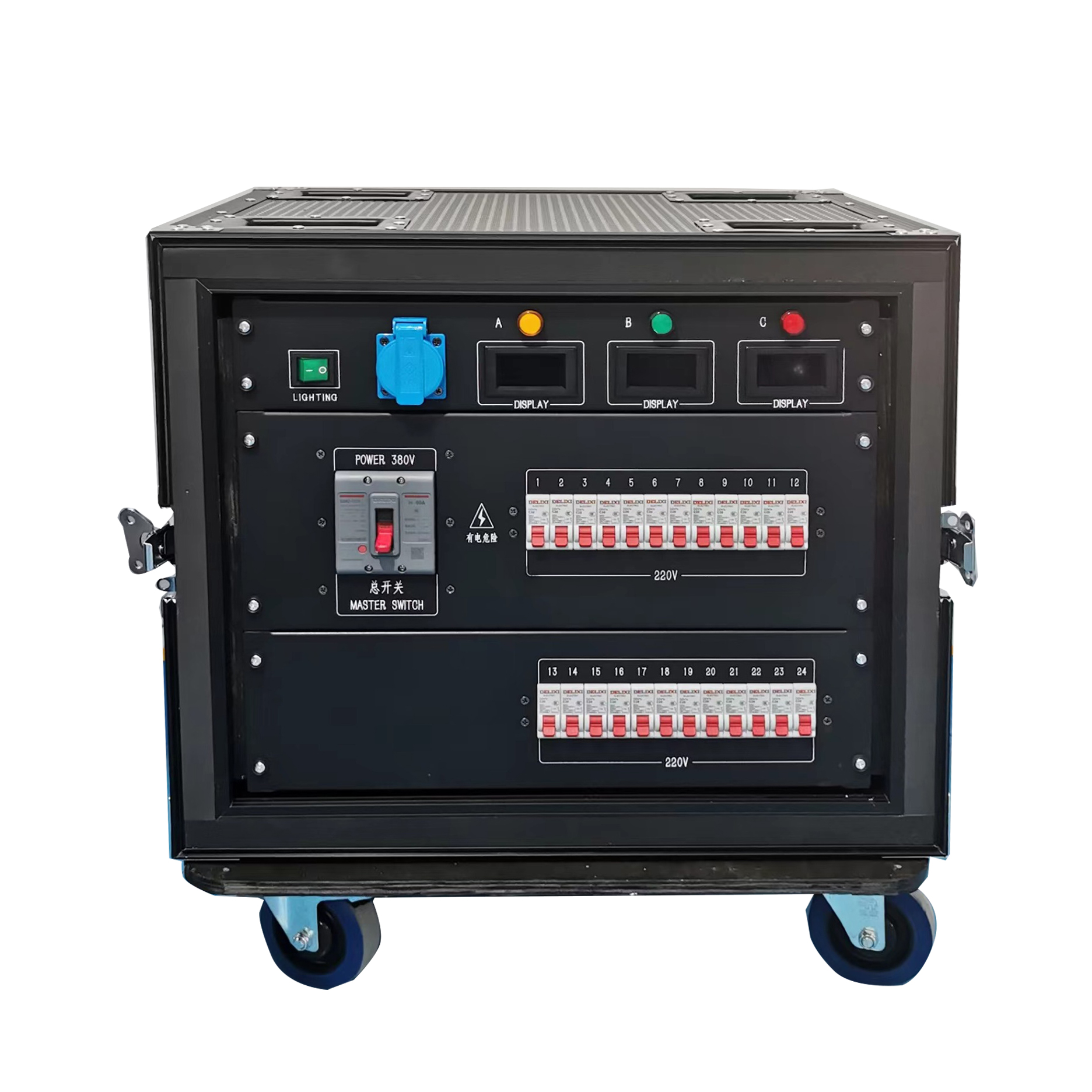

Display: with three-phase A.B.C direct-reading independent LCD current and voltmeter display; real-time monitoring of various data without switching

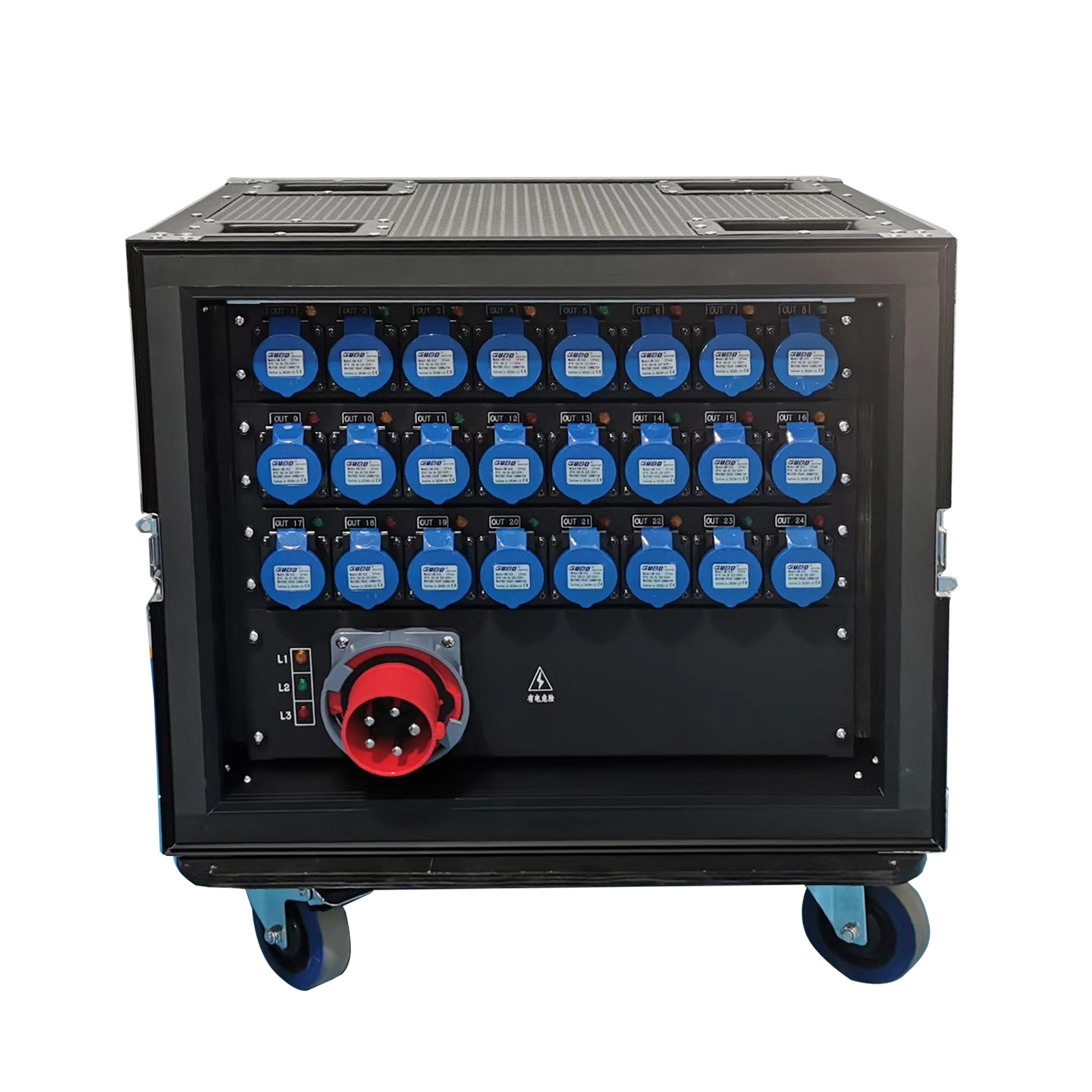

Output: 24 channels 16A CEE waterproof, each output with indicator light display
Body: Use exquisite double-layer shock-proof hexagonal pattern plate; 14U standard cabinet.
Control system: 160A/200A main air switch is used for the main control; each independent air switch is C20A, with overload and short circuit double protection
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with LED blue light work light
Product size (mm): L670×W600×H630



More details of our 63A 5PIN input 24 Road 16A waterproof output power distributor distro as below:

63A 5PIN input 24 Road 16A waterproof output power distributor distro
