Input voltage:100-240Vac 50/60HZ
Light source

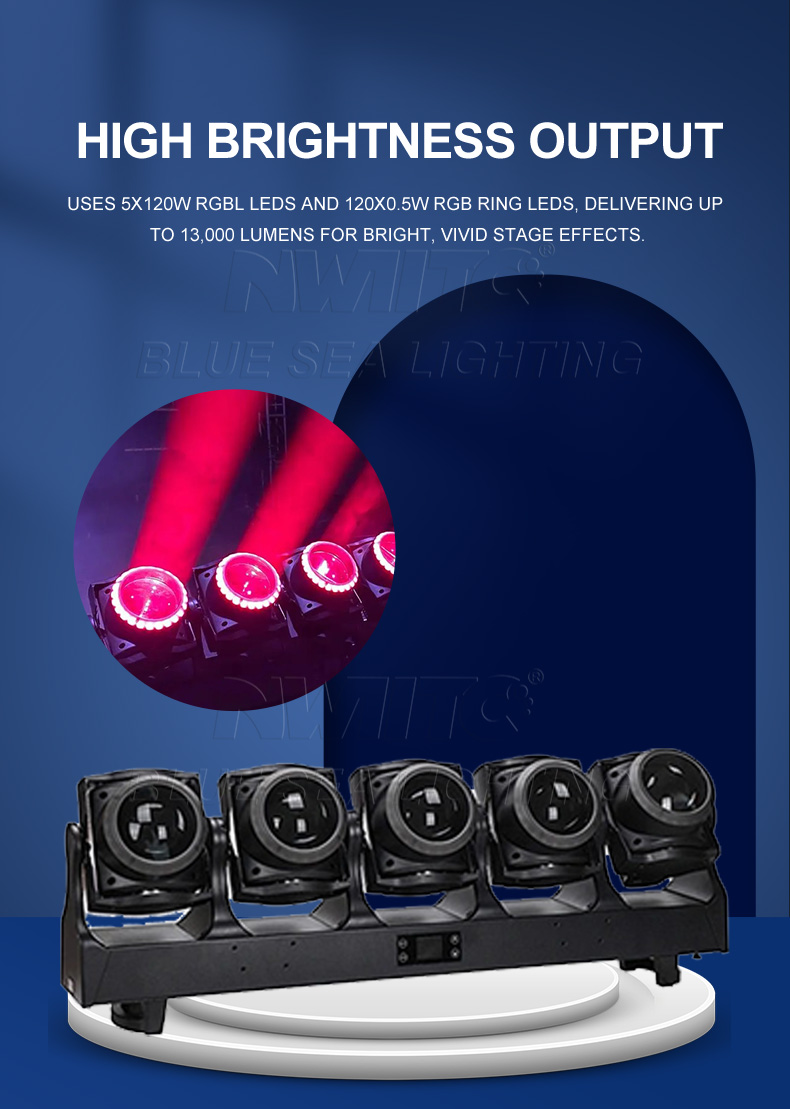

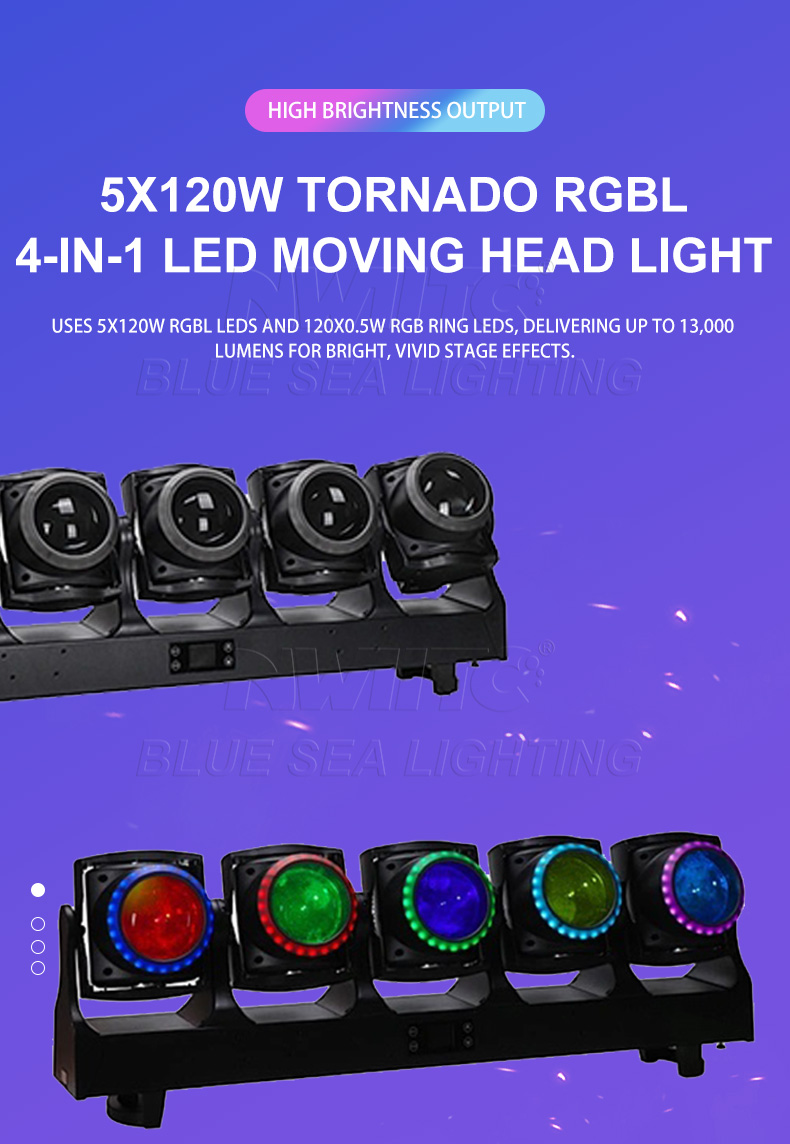

Light source: Beam end: 5 x 120W RGBL LED
Outer ring LED: 120 x 0.5W RGB LED
Luminous flux: 13,000 lumens
Expected service life of light source: 20,000 hours*Data provided by light source supplier
Optical system
Beam angle: 3°-30°
Spot angle: 4°-35°
Control and program
4 touch buttons
Control panel: LCD display
Control protocol: DMX512, RDM, Art-Net, sACN
DMX channel mode: 5 types
Control channels: 41/71/75/85/170
Software upgrade: Software upgrade via DMX connection
X-axis/Y-axis
X-axis running angle: 59°
Y-axis running angle: 221°
X-axis/Y-axis position loss automatic correction
X-axis/Y-axis: 16 bit Precision scanning
Other effects
Multiple speed strobe effects
0-100% smooth dimming
Excellent color mixing function
Excellent color macro effect
Fast linear focus function
Light source
Light source: Beam end: 5 x 120W RGBL LED
Outer ring LED: 120 x 0.5W RGB LED
Luminous flux of lamp: 13,000 lumens
Expected service life of light source: 20,000 hours*Data provided by light source supplier
Optical system
Beam angle: 3°-30°
Spot angle: 4°-35°
Control and program
4 touch buttons
Control panel: LCD display
Control protocol: DMX512, RDM,
Optional network: Art-Net, sACN
DMX channel mode: 5 types
Control channels: 41/71/75/85/170
Software upgrade: Upgrade software via DMX connection
X-axis/Y-axis
X-axis operation angle: 59°
Y-axis rotation angle: 221°
X-axis/Y-axis position desynchronization automatic correction
X-axis/Y-axis: 16 bit precision scanning
Other effects
Multiple speed strobe effects
0-100% smooth dimming
Excellent color mixing function
Excellent color macro effect
Fast linear focus function
