HOME >> Power Distributor >> 12 Road 16A Waterproof Output 4 Road 32A 5pin Output Power Distributor
  • 12 Road 16A Waterproof Output 4 Road 32A 5pin Output Power Distributor

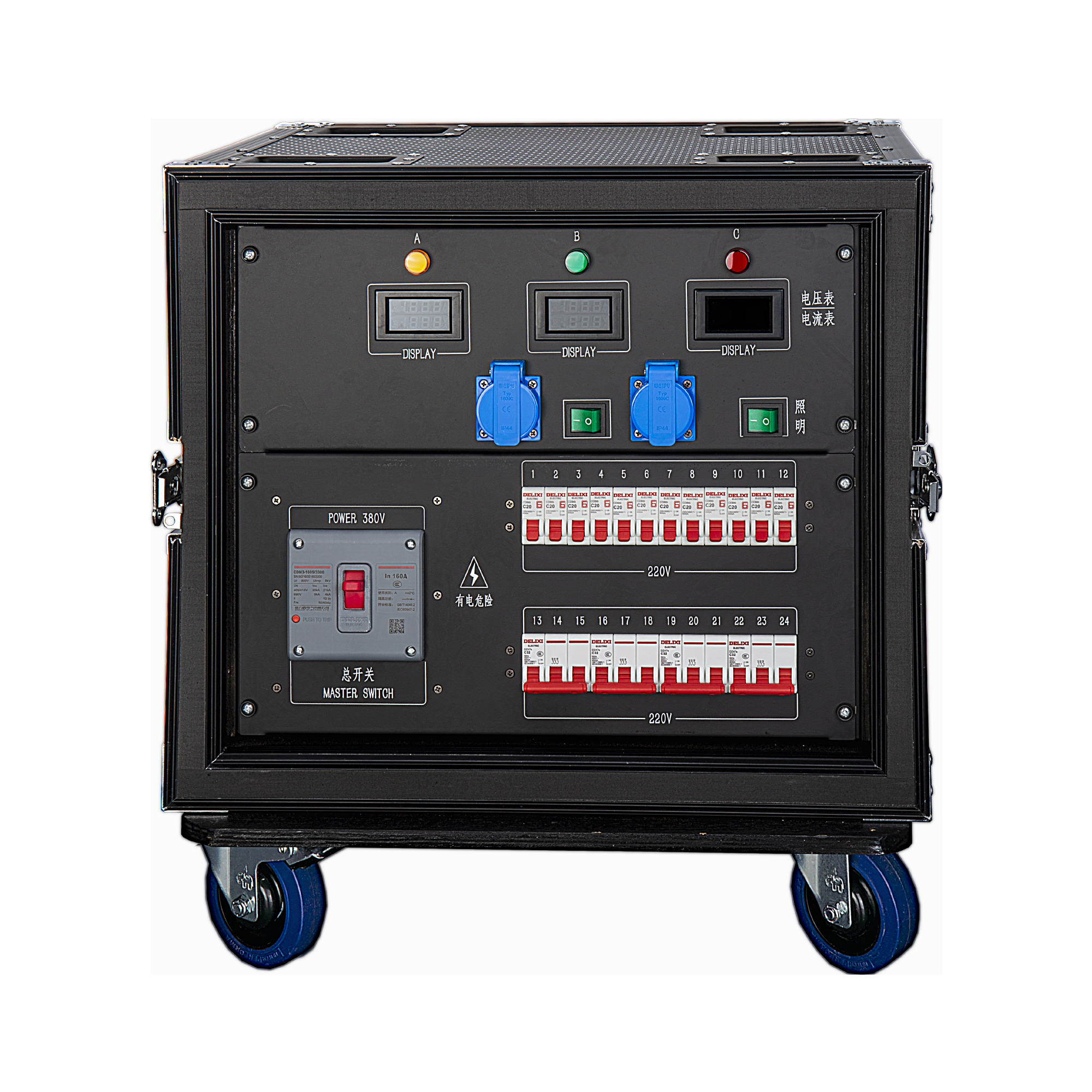

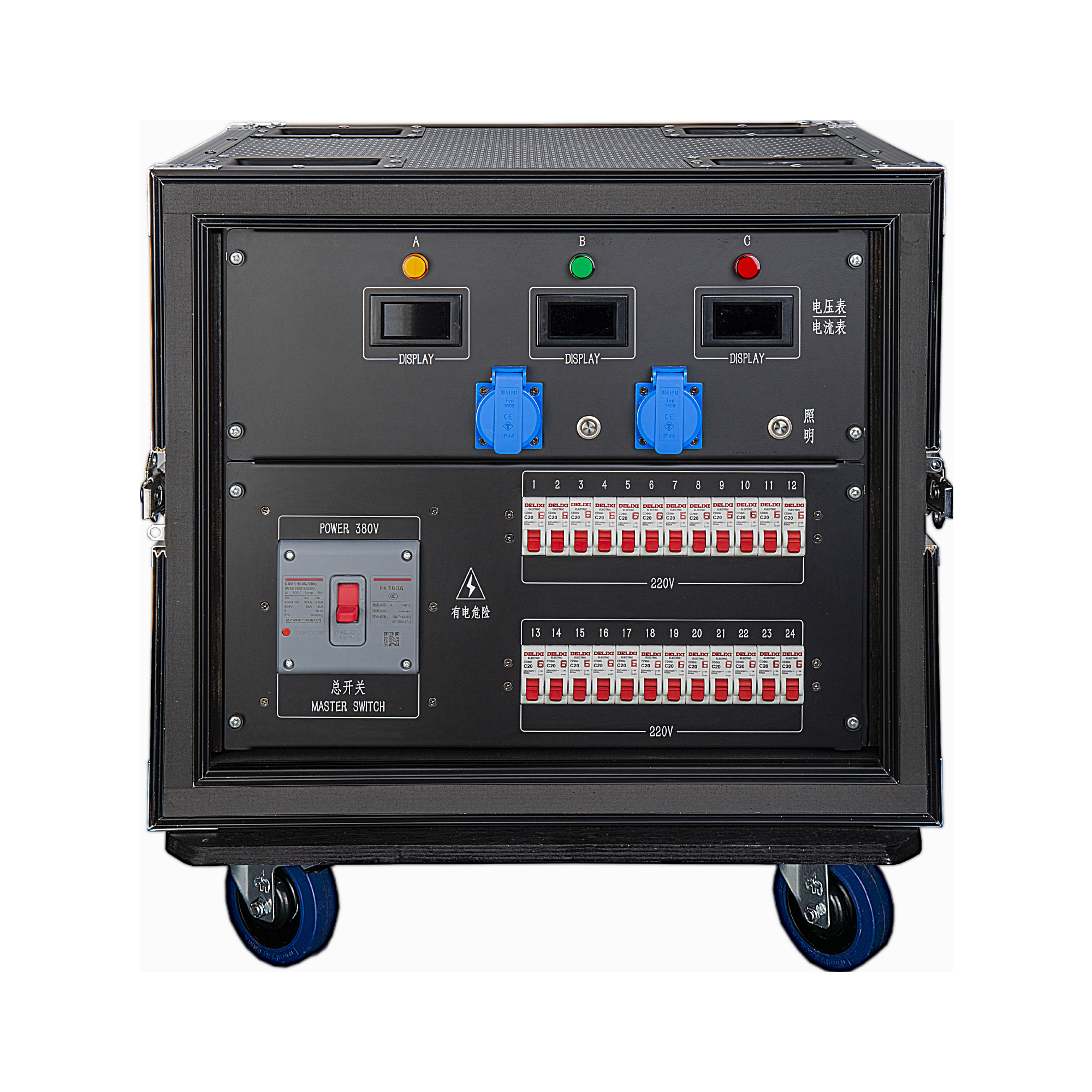

    12 Road 16A Waterproof Output 4 Road 32A 5pin Output Power Distributor
    12 Road 16A Waterproof Output 4 Road 32A 5pin Output Power Distributor
    ❤ Add to collection

  • 12 Road 16A Waterproof Output 4 Road 32A 5pin Output Power Distributor

    Place of Origin: Guangdong, China

    Brand Name: NWIITC

    Model Number: BPD1216432

    Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

    Input current: 200A rhino plug with self-locking staggered zero fire

    Ambient temperature: 0-±45C

    Relative humidity: 40%-80%

    Product size (mm): L670*W600*H630

    Product Name: 12 road 16A waterproof output 4 road 32A 5pin output power distributor

    Color: black

    • ￥0
      ￥0.00
      ￥0.00
      ￥0.00

    • Satisfaction：

      Sales： 0

      Review： 0

    Weight：0.000KG
    • Quantity：
Description

Place of Origin: Guangdong, China

Brand Name: NWIITC

Model Number: BPD1216432

Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%

Input current: 200A rhino plug with self-locking staggered zero fire

Ambient temperature: 0-±45C

Relative humidity: 40%-80%

Product size (mm): L670*W600*H630

Product Name: 12 road 16A waterproof output 4 road 32A 5pin output power distributor

Color: black

12 road 16A waterproof output 4 road 32A 5pin output power distributor

Product Description
Product name:12 road 16A waterproof output 4 road 32A 5pin output power distributor
Power supply: three-phase five-wire system AC380±10%, frequency 50Hz/60Hz±5%
Input current: 200A rhino plug with self-locking staggered zero fire
Display: with three-phase A.B.C direct-reading independent LCD current and voltmeter display; real-time monitoring of various data without switching
Output: 12 channels 16A waterproof + 4 channels 32A5 core output, each output with indicator light display
Body: Use exquisite double-layer shock-proof hexagonal pattern plate; 9U standard cabinet.
Control system:  the total control adopts 160A/200A main circuit breaker; each circuit has independent circuit breaker C20A, with double protection of overload and short circuit.
Normal working environment:
Ambient temperature: 0-±45C
Relative humidity: 40%-80%
Equipped with blue LED work light
Product size (mm): L670×W600×H630



More details of our 12 road 16A waterproof output 4 road 32A 5pin output power distributor as below:

12 road 16A waterproof output 4 road 32A 5pin output power distributor
