Stage lighting is one of the most exciting parts of any live performance. It can turn an ordinary stage into a concert arena, a theater scene, a festival platform, or a professional broadcast space. Beams, washes, strobes, pixel bars, moving heads, blinders, and LED fixtures help create emotion, rhythm, atmosphere, and visual impact. However, behind every beautiful lighting effect, there is one basic rule that must never be ignored: safety first.

Lighting fixtures are often installed above performers, audiences, workers, cameras, speakers, LED screens, decorations, and expensive stage equipment. Many fixtures are heavy. Some are mounted at high positions. Some are used outdoors in wind, rain, heat, dust, and long working hours. If a fixture is not rigged correctly, the result can be dangerous. A loose clamp, an overloaded truss, a missing safety cable, or a poorly planned installation can cause serious accidents.

This complete guide explains stage lighting rigging and hardware in simple language. It is suitable for beginners, event companies, school stage teams, theater technicians, rental companies, and professional lighting crews. The goal is not only to explain what equipment is used, but also to help teams build safer habits before, during, and after every show.

1. Why Rigging Safety Matters in Stage Lighting

Stage lighting rigging means mounting, hanging, securing, and supporting lighting equipment safely. This includes the use of trusses, pipes, clamps, brackets, hooks, bolts, safety cables, shackles, hoists, stands, and other hardware. Rigging is not only about placing a light where it looks good. It is about making sure the light stays exactly where it should be, even during long operation, movement, vibration, weather changes, or accidental contact.

Safety matters because stage environments are dynamic. Workers move equipment quickly. Performers rehearse under the lights. Audiences may stand close to the stage. Outdoor shows may face wind and rain. Moving head lights rotate and tilt repeatedly. Strobe lights and LED bars may be installed in rows. Each fixture adds weight and stress to the support structure.

A professional lighting design should never separate creativity from safety. A beautiful lighting effect is only successful when the equipment is properly installed, the load is controlled, and the crew understands the risks. Safety should be part of the design from the beginning, not something added at the last minute.

2. Understanding the Basic Rigging Structure

Most stage lighting installations use one or more support systems. The most common are truss systems, hanging pipes, lighting bars, ground stands, roof structures, and temporary stage frames.

A truss is a metal structure, usually made of aluminum, designed to support lighting fixtures and other stage equipment. It may be placed above the stage, at the back of the stage, on both sides, or around the performance area. Trusses are popular because they are strong, modular, and easy to assemble. However, every truss has a load limit. The load limit depends on the truss type, span, support points, material, and installation method.

A lighting pipe or bar is often used in theaters, studios, schools, and indoor stages. Fixtures can be mounted to the pipe with clamps. The pipe must also have a safe load rating. Never assume that a pipe can carry unlimited weight simply because it looks strong.

Ground stands and towers are used when hanging points are not available. They can be helpful for small events, mobile performances, exhibitions, and temporary outdoor stages. However, stands must be placed on stable ground, properly balanced, and protected from tipping.

The support structure is the foundation of safety. Before installing any fixture, the crew should know what the fixture weighs, where it will be mounted, and whether the structure can safely support the total load.

3. Load Capacity: The First Calculation

Load capacity is one of the most important ideas in rigging. Every lighting fixture, clamp, cable, truss, hoist, bracket, and stand has a rated capacity. This rating tells you how much weight the item is designed to support under proper conditions.

When calculating load, do not only count the weight of the lighting fixture. You must also include clamps, safety cables, power cables, signal cables, accessories, rain covers, brackets, and any other attached parts. If several fixtures are installed on the same truss, their combined weight must be calculated.

Load should also be distributed correctly. Placing too many heavy fixtures in one small area can create stress on the truss or pipe. A balanced layout is safer and usually looks better. For example, if several moving heads are installed across a front truss, they should be spaced evenly whenever possible.

It is also important to understand that dynamic movement can affect safety. Moving head lights pan and tilt. Outdoor wind can push fixtures. Stage vibration can loosen parts. For this reason, professional rigging should always include a safety margin. Do not operate equipment close to the maximum limit unless a qualified professional has confirmed the plan.

4. Clamps: Small Parts with Big Responsibility

A clamp may look simple, but it plays a major role in stage lighting safety. The clamp connects the lighting fixture to the truss or pipe. If the clamp is weak, damaged, loose, or incorrect for the pipe size, the whole installation becomes unsafe.

There are many types of clamps, including C-clamps, half couplers, trigger clamps, quick clamps, omega brackets, and special mounting brackets. The right choice depends on the fixture weight, pipe diameter, installation angle, and working environment.

For heavy moving head lights, strong professional clamps should be used. The clamp must match the fixture’s mounting point and the truss or pipe size. The bolt must be tightened properly, but not damaged by over-tightening. Washers, lock nuts, and proper fastening parts should be used when required.

Before each installation, check the clamp for cracks, deformation, rust, missing bolts, damaged threads, and loose parts. A clamp that has been dropped, bent, or overloaded should not be used. It is much cheaper to replace a clamp than to deal with a falling fixture.

5. Safety Cables: The Essential Backup

A safety cable is a secondary protection device. Its job is to hold the fixture if the main clamp or mounting point fails. Every hanging lighting fixture should have a properly rated safety cable.

A common mistake is treating the safety cable as optional. It is not optional. It is an essential part of professional rigging. Even when the clamp is strong, a safety cable provides an extra layer of protection. If something unexpected happens, the safety cable can prevent the fixture from falling directly onto people or equipment below.

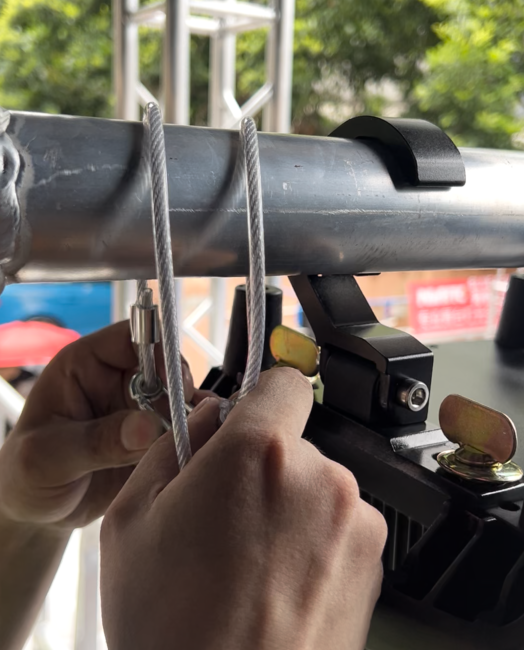

The safety cable should be attached to a dedicated safety point on the fixture and then looped around the truss or pipe. It should not be attached to weak handles, plastic covers, temporary hooks, or decorative parts. The cable should be short enough to limit falling distance but long enough to avoid pulling tightly during normal movement.

Safety cables must also be inspected. Look for broken wires, rust, damaged locking clips, loose sleeves, or deformation. If the cable looks questionable, replace it. Safety cables are simple, affordable, and extremely important.

6. Bolts, Screws, and Fasteners

Many rigging problems begin with small fasteners. Bolts, screws, nuts, washers, and locking parts may seem minor, but they hold the system together. A missing washer or loose nut can slowly become a serious problem during vibration and movement.

When installing stage lights, always use the correct fasteners recommended for the fixture and mounting bracket. Do not replace professional hardware with random screws from a toolbox. The size, material, thread type, and strength grade matter.

Fasteners should be tightened firmly and checked again after installation. For touring shows or rental equipment, repeated assembly and disassembly can wear threads over time. Any stripped, rusty, bent, or loose fastener should be replaced immediately.

Good rigging practice includes organizing hardware carefully. Keep clamps, brackets, safety cables, bolts, and washers in dedicated boxes. Do not mix damaged parts with good parts. A clean hardware system helps the crew work faster and safer.

7. Fixture Positioning and Spacing

Lighting position is not only a design decision. It is also a safety decision. Fixtures should be installed where they can operate freely without hitting other lights, cables, curtains, speakers, LED screens, decorations, or stage structures.

Moving head lights need enough space to pan and tilt. If two fixtures are placed too close together, their heads may collide during movement. If a fixture is too close to a curtain or banner, heat, motion, or airflow may create problems. Even LED fixtures, which are cooler than traditional lamps, still need ventilation space.

Cables should also be planned carefully. Power cables and DMX signal cables should not hang loosely where they can be pulled, stepped on, or caught by moving parts. Cable ties, cable clips, and proper routing help reduce risk. However, cables should not be tied so tightly that they damage connectors or prevent safe movement.

When installing fixtures above people, avoid unnecessary risk. Check the height, angle, support points, and possible falling zone. A safe lighting position protects performers, workers, and the audience.

8. Outdoor Rigging: Extra Challenges

Outdoor stage lighting requires more attention than indoor installation. Weather can change quickly. Wind, rain, heat, humidity, dust, and sunlight can all affect equipment and rigging hardware.

For outdoor use, fixtures should have suitable weather protection. Waterproof moving heads, outdoor LED bars, IP-rated wash lights, and weather-resistant power connectors are better choices for outdoor events. However, waterproof fixtures still need correct installation. Water should not collect around connectors, vents, or mounting points.

Wind is one of the biggest outdoor risks. Large fixtures, LED panels, banners, and stage roofs can catch wind. A fixture that is safe indoors may become risky outdoors if the wind is strong. The crew should monitor weather forecasts and prepare a plan for lowering or removing equipment when conditions become unsafe.

Outdoor trusses and stands must be properly secured. Ground conditions should be checked. Soft ground, uneven surfaces, rainwater, and vibration can affect stability. Ballast, guy wires, and professional support systems may be needed.

Outdoor rigging should never be rushed. A few extra minutes of checking can prevent serious accidents.

9. Electrical Safety and Cable Management

Rigging safety is closely connected to electrical safety. Stage lighting needs power, and power systems must be planned carefully. Overloaded circuits, damaged cables, poor connectors, water exposure, and messy cable routes can all create hazards.

Use power cables with correct ratings. Do not use damaged cables with exposed wires, loose connectors, or broken insulation. Outdoor power connections should be protected from rain and water. Connectors should be placed where they are not easily stepped on or pulled.

Power and signal cables should be separated when possible to reduce interference and improve organization. Labeling cables can save time during troubleshooting. Cable ramps or covers should be used in walkways to prevent tripping.

Never pull a fixture by its cable. Never hang a fixture from its power cord or signal cable. Cables are not rigging hardware. They are for electrical connection only.

Good cable management makes the stage look professional and reduces risks for everyone working around the equipment.

10. Inspection Before Installation

A safe show begins before the first light is hung. Inspection should be part of every setup.

Before installation, check each fixture. Look for damage to the housing, lens, bracket, handles, display, connectors, fans, and mounting points. Test the fixture if possible. Make sure the pan and tilt movement is smooth and not blocked.

Check every clamp and safety cable. Make sure bolts and locking parts work correctly. Inspect trusses, pipes, stands, and hanging points. Look for cracks, dents, rust, deformation, missing pins, loose connections, and signs of overload.

The crew should also inspect the stage area. Is the floor stable? Is there enough working space? Are ladders or lifts safe? Are weather conditions suitable? Are there people walking under the installation area?

A simple inspection checklist can help the team avoid mistakes. Professional crews often use written checklists because memory alone is not reliable during a busy setup.

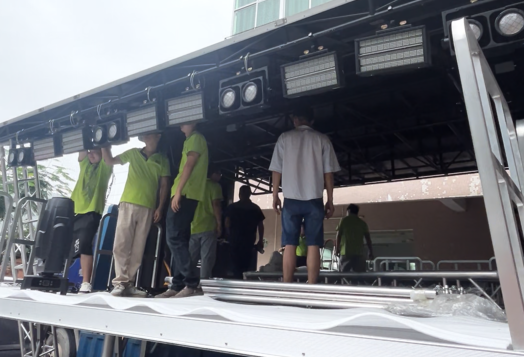

11. Safe Installation Process

During installation, the work area should be controlled. People who are not involved should stay away from the rigging zone. When lights are being lifted or mounted overhead, no one should stand directly underneath unless the task requires it and proper protection is in place.

Workers should use suitable ladders, lifts, scaffolding, or access equipment. Standing on unstable boxes, chairs, flight cases, or stage decorations is dangerous. When working at height, personal protective equipment may be required depending on the job site.

Install one fixture at a time. Attach the clamp correctly. Tighten the hardware. Add the safety cable. Check cable routing. Then move to the next fixture. Do not leave a fixture temporarily hanging without full protection.

Communication is very important. The lighting crew, stage crew, audio team, video team, and event manager should understand who is working where. Clear communication prevents people from moving equipment at the wrong time.

12. Final Check Before Showtime

After all fixtures are installed, the crew should perform a final safety check. This should happen before programming, rehearsal, and audience entry.

Check that every fixture has a main clamp and a safety cable. Confirm that all clamps are tight. Make sure cables are secure but not under strain. Move each moving head through its pan and tilt range to confirm it does not hit anything. Test dimming, color, strobe, zoom, focus, and other functions carefully.

Look at the entire rig from different angles. Sometimes a problem is easier to see from the side or below. Check whether any fixture is tilted unexpectedly, whether any cable is hanging too low, or whether any truss section looks overloaded.

For outdoor shows, check the weather again. If rain or wind is expected, prepare protective action. Safety planning should continue throughout the event, not stop after installation.

13. Maintenance of Rigging Hardware

Good rigging hardware lasts longer when it is maintained properly. After each event, clamps, cables, brackets, and fasteners should be cleaned, checked, and stored correctly.

Moisture can cause rust. Dust and dirt can affect threads and locking parts. Repeated transport can damage hardware. Heavy impact can bend clamps or weaken components. Rental companies and touring crews should inspect hardware regularly because their equipment is used often and moved frequently.

Create a system to separate damaged hardware from usable hardware. Do not put questionable parts back into the normal tool case. Mark them clearly and remove them from service. Keeping damaged hardware in circulation increases the chance of accidental reuse.

Maintenance is not only about saving money. It is about protecting people.

14. Training and Team Responsibility

Even the best hardware cannot replace proper training. Every person involved in stage lighting installation should understand basic safety rules. New crew members should learn how to use clamps, safety cables, power connectors, and lifting tools correctly before working alone.

Training should be practical. Show people how to inspect a clamp. Teach them how to attach a safety cable. Explain load limits. Demonstrate safe ladder use. Review common mistakes. Encourage workers to ask questions.

A strong safety culture means everyone has the right to speak up. If someone sees a loose clamp, missing safety cable, unstable stand, or damaged cable, they should report it immediately. Safety is not only the responsibility of the head technician. It belongs to the whole team.

15. Common Rigging Mistakes to Avoid

Many accidents come from simple mistakes. One common mistake is using a clamp that is too weak for the fixture. Another is forgetting the safety cable. Some teams overload one truss section because they focus only on lighting design and forget load distribution.

Another mistake is rushing installation. Time pressure is common in event production, but speed should never replace safety. A fast setup is useless if it creates danger.

Using damaged hardware is also risky. Rusty clamps, bent brackets, broken safety cables, and stripped bolts should not be used. Temporary solutions, such as tying fixtures with random rope or using unsuitable hooks, are unsafe.

Poor cable management is another common issue. Loose cables can be pulled, damaged, or become trip hazards. Cables hanging near moving parts can be caught during fixture movement.

Avoiding these mistakes is one of the easiest ways to improve stage safety.

16. Choosing Reliable Stage Lighting Products

Reliable lighting fixtures make rigging easier and safer. A professional fixture should have strong mounting points, stable brackets, clear connection panels, durable housing, and compatibility with standard clamps and safety cables.

For outdoor events, IP-rated fixtures are especially useful. Waterproof beam lights, outdoor wash lights, battery uplights, and weather-resistant fixtures help reduce risk in difficult environments. For touring and rental use, compact and durable fixtures can save installation time and reduce handling problems.

BLUE SEA LIGHTING focuses on professional stage lighting solutions for concerts, festivals, theaters, schools, clubs, events, and outdoor performances. Good lighting equipment should combine strong visual performance with practical installation design. Brightness, color, beam effect, and control functions are important, but safety-friendly structure is equally important.

When selecting fixtures, buyers should consider not only the lighting effect but also weight, mounting options, cooling design, IP rating, connector quality, and hardware compatibility.

17. Safety Documentation and Checklists

A written checklist helps the crew work in a more organized way. It can include fixture weight, clamp type, safety cable status, truss load, power connection, DMX routing, weather check, final test, and responsible person.

For larger events, documentation may also include rigging plots, load calculations, equipment lists, inspection records, and emergency plans. This information helps the lighting team, production manager, and venue understand the setup clearly.

Documentation is especially useful for repeat events, rental projects, and touring shows. It helps the team learn from experience and improve each setup.

A safe stage is not created by luck. It is created by planning, checking, and recording.

18. Conclusion: Safety Makes Lighting More Professional

Stage lighting is powerful because it changes what people see and feel. It brings energy to concerts, beauty to theater, excitement to festivals, and focus to presentations. But all of this must be built on a safe foundation.

Rigging and hardware may not be as glamorous as colorful beams or dramatic effects, but they are the hidden support behind every successful show. Trusses, clamps, safety cables, bolts, brackets, and cables must all work together. Each part matters.

When crews understand load capacity, inspect equipment, use proper clamps, attach safety cables, manage cables, respect weather, and communicate clearly, the whole production becomes safer and more professional.

Safety first is not a slogan. It is a working method. It protects performers, audiences, technicians, equipment, and the reputation of the event. With the right knowledge, reliable hardware, and responsible teamwork, stage lighting can be both spectacular and safe.
