Introduction: Why Laser Fixtures Require Unique Attention

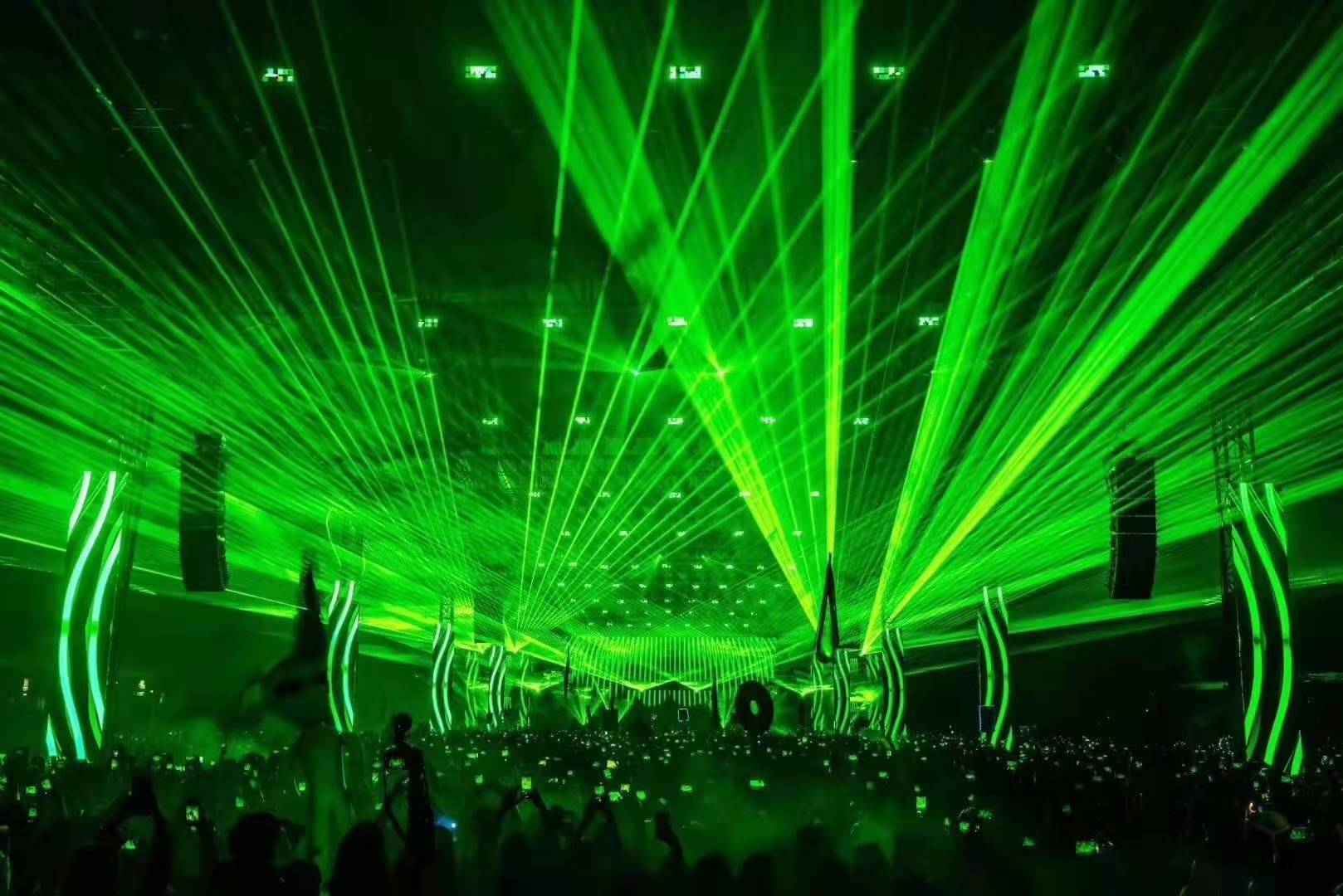

In the ever-evolving world of entertainment lighting, laser diode fixtures have become a standout for their intense brightness, sharp beams, and ability to project far greater distances than traditional LED or discharge sources. From massive arena tours to sleek corporate reveals, laser-powered lights are now a staple in high-impact visual environments.

But this power comes with responsibility.

Unlike conventional fixtures, laser diode systems pose specific eye and skin safety risks, and their operation is governed by strict international standards. Understanding these classifications and protections is critical for lighting designers, venue managers, and touring professionals alike.

What Is a Laser Diode Fixture?

A laser diode fixture uses a semiconductor-based laser as its light source. Unlike LEDs or lamps that emit light in all directions, laser diodes generate collimated beams—narrow, concentrated light that maintains its shape over long distances.

These fixtures are typically found in:

• Beam moving heads with razor-sharp aerial effects

• Logo or gobo projection units for corporate branding

• Architectural units requiring ultra-long throws

Laser diode lights are praised for:

• Exceptionally tight beam angles (often under 1°)

• Crisp pattern definition

• High optical efficiency

• Lower heat generation compared to traditional lasers

Understanding Laser Classifications

Lasers are classified based on their output power and potential biological hazards. The most commonly used framework is the IEC 60825-1 standard, adopted worldwide.

Most entertainment laser diode fixtures fall into Class 3B or Class 4, meaning they pose real dangers if misused.

Key Safety Features in Professional Fixtures

High-quality laser diode lights are engineered with built-in safety mechanisms to meet compliance:

• Mechanical shutters that block beam output when idle or malfunctioning

• Interlock circuits for emergency stops or power control

• Key-switch locks to prevent unauthorized operation

• Scan-fail detection that shuts down the laser if beam movement stops

• Remote control ports for laser enable/disable protocols

All laser systems intended for public use should comply with IEC 60825-1 and local laws such as:

• FDA/CDRH rules (USA) for public performance lasers

• DIN 56912 (Germany)

• EN 60825 (EU)

Failing to comply can result in bans, fines, or serious injuries.

Eye Safety: The Invisible Risk

Unlike visible discomfort from bright lights or strobes, laser eye damage can occur painlessly and instantly. Even Class 3B lasers can damage the retina in fractions of a second. Class 4 beams can cause permanent injury at several meters away.

Precautions include:

• Never look directly into laser apertures

• Keep audience scanning angles below head height unless pre-approved

• Use only certified equipment from licensed manufacturers

• Block off access to fixtures with physical barriers or truss positioning

• Provide Laser Safety Officer (LSO) supervision for large shows

Even reflections off shiny surfaces (mirrors, brass railings) can pose risks.

Regulatory Compliance in Live Events

Governments around the world regulate the use of laser systems in public environments. For example:

• In the USA, any Class 3B or 4 system used for public shows must be approved by the FDA/CDRH (Center for Devices and Radiological Health). Operators must submit Laser Light Show Variances and product reports.

• In Europe, systems must be CE marked and follow EN 60825 with documented testing.

• UK-based shows require adherence to HSE and ILDA guidelines.

When using laser diode fixtures in public events:

• Always check manufacturer certifications

• Hire qualified operators with laser safety training

• Log and document laser alignment, scanning zones, and cue programming

Designing Safe Laser Shows

Designing with laser diode fixtures isn’t just about aesthetics—it’s about risk-aware creativity.

Here are best practices:

1. Keep beams above audience heads at all times unless properly diffused or varianced

2. Avoid audience scanning unless the fixture is specifically certified and you hold legal permissions

3. Use fog or haze to visualize beams clearly and control intensity

4. Program intensity ramps into cues to avoid sudden blinding

5. Maintain minimum separation distances based on power and beam divergence

6. Include emergency kill-switches backstage and at FOH

Show design teams must treat laser effects like pyrotechnics—spectacular but strictly regulated.

Safety Labeling and User Training

All professional-grade laser fixtures should feature:

• Visible classification labels (e.g., Class 4 – avoid eye exposure)

• Beam aperture markings

• Interlock documentation

• Operating manuals with safety protocols

Operators should:

• Attend Laser Safety Officer (LSO) certification courses if working with Class 4 systems

• Use appropriate laser goggles when aligning beams

• Refrain from modifying fixtures or opening sealed optics

• Perform routine alignment and performance checks

Neglecting these responsibilities can lead to both safety violations and irreversible injuries.

The Role of Visual Simulation and Pre-Programming

Many modern lighting consoles and visualizers allow pre-show laser beam simulation using 3D modeling software. This not only helps visualize the creative intent but also ensures:

• Beam paths avoid audience zones

• Fixtures are aligned to safe scanning angles

• Cues don’t exceed power thresholds for scanning

Software like Pangolin, Realizzer, and Depence2 supports laser programming integration, allowing both safety and creativity.

Future of Laser Diode Fixtures in Entertainment

Laser diode technology is advancing rapidly, with innovations including:

• White-light laser diodes for full-spectrum output

• Digital beam steering with micro-mirrors

• Compact fixtures suitable for touring rigs and tight installs

• Laser+LED hybrid systems that combine output precision with rich fill light

As these become more common, safety education must evolve in parallel. Designers and technicians must stay informed about evolving standards and smarter fixture designs that embed automated protections.
