Introduction: Learn the Proper Way to Replace a Gobo Pattern in Moving Head Light

Moving head lights are one of the most important lighting fixtures in modern entertainment and event production. They are widely used in concerts, theaters, clubs, churches, weddings, exhibitions, outdoor performances, and commercial events because they can create powerful beams, colorful effects, dynamic movements, and creative projection patterns.

Among the many optical components inside a moving head light, the gobo system plays a key role in creating special visual effects. A gobo is a small pattern disc installed inside the fixture. When the light source passes through the gobo, the designed image or pattern can be projected onto the stage, wall, floor, or other surfaces.

For different applications, lighting designers may need to replace the original gobo with a new pattern. For example, event companies may install a custom company logo for brand promotion, wedding planners may use personalized patterns, and stage designers may change different textures to match the performance theme.

Knowing how to replace a gobo pattern in moving head light is an important maintenance skill for lighting technicians. Correct replacement not only saves service time but also helps maintain projection quality and extend the working life of the fixture.

BLUE SEA LIGHTING specializes in professional stage lighting solutions, including LED moving head lights, beam lights, hybrid moving heads, waterproof outdoor lighting fixtures, and customized lighting equipment. This guide explains the complete process of replacing a gobo pattern safely and efficiently.

What Is a Gobo Pattern in Moving Head Light?

Before replacing a gobo, it is helpful to understand the function of this important component.

A Gobo Pattern is a thin disc installed inside the optical system of a moving head light. It controls the shape and image of the projected light effect. Depending on the fixture design, gobos can be installed on a rotating gobo wheel or a fixed gobo position.

Different types of gobos are available for various lighting applications.

Metal Gobo

Metal gobos are commonly used for:

• Simple geometric patterns

• Lines and shapes

• Basic texture effects

They are durable and suitable for many stage lighting applications.

Glass Gobo

Glass gobos are designed for more detailed projection effects, including:

• Company logos

• High-resolution images

• Complex patterns

• Decorative designs

Because glass gobos can provide more detailed images, they are widely used in professional events and commercial projects.

Custom Gobo

Custom gobos allow users to create personalized lighting effects.

Common applications include:

• Brand advertising

• Wedding names and symbols

• Product launches

• Special event themes

Professional moving head lights usually support multiple gobo positions, allowing users to select different patterns through DMX controllers.

Preparation Before Replacing a Gobo Pattern

Before starting the replacement process, proper preparation is necessary to protect both the technician and the lighting fixture.

Recommended tools include:

• Screwdriver set

• Clean working table

• Soft gloves

• New gobo pattern

• Tweezers or small installation tools

Before opening the fixture, always follow these safety steps:

Disconnect the Power Supply

Turn off the moving head light and remove the power connection before maintenance.

Allow the Fixture to Cool Down

High-power lighting fixtures may generate significant heat. Wait until the internal components reach a safe temperature.

Keep Optical Components Clean

Avoid touching:

• Lens surfaces

• Reflective components

• Optical glass parts

Dust and fingerprints can reduce brightness and affect the sharpness of the projected image.

A clean maintenance environment helps ensure better lighting performance.

Step 1: Open the Fixture Cover and Locate the Gobo Wheel

The first step is opening the moving head light housing and finding the gobo wheel.

Before operation:

1. Turn off the fixture.

2. Disconnect the power cable.

3. Confirm that the fixture has completely stopped.

4. Carefully remove the housing cover.

After opening the fixture, locate the optical system area.

The gobo wheel is usually installed near:

• Focus lens

• Zoom lens

• Prism system

• Color wheel

The position may vary depending on different moving head light models, but it is normally located inside the optical module.

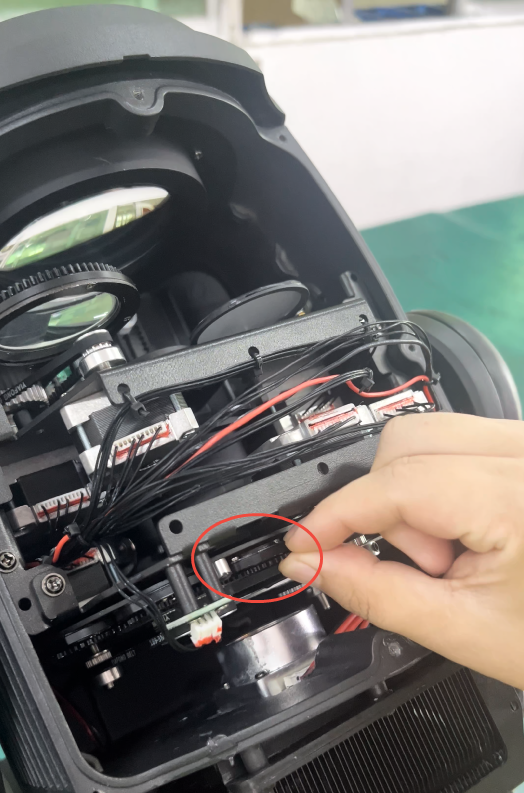

As shown in the image, the technician opens the fixture housing and locates the rotating gobo wheel near the optical system before replacing the gobo pattern.

Step 2: Remove the Gobo Holder From the Gobo Wheel

After locating the gobo wheel, the next step is removing the gobo holder.

The gobo holder is a small metal frame that fixes the gobo pattern in the correct position.

Carefully:

1. Release the holder from the gobo wheel.

2. Remove it slowly from the installation position.

3. Place it on a clean working surface.

During this process, avoid touching the optical lens and internal components.

Even small fingerprints on optical parts may cause:

• Blurry projection

• Reduced brightness

• Uneven lighting effects

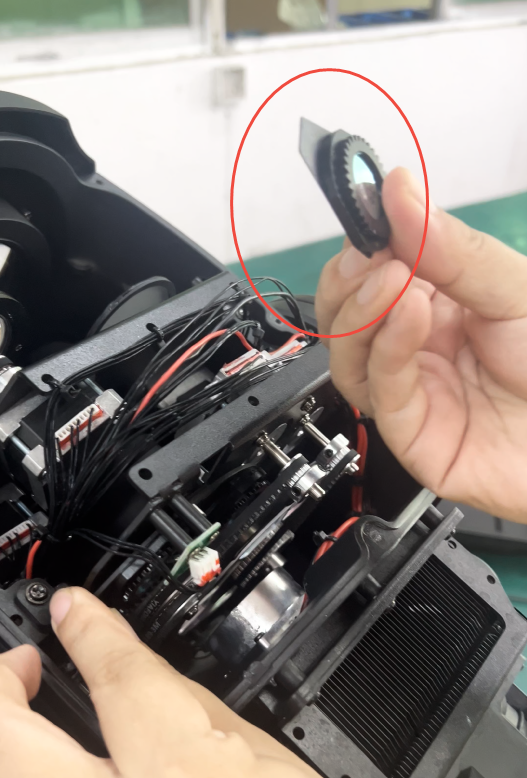

As shown in the image, the technician carefully removes the gobo holder from the rotating gobo wheel.

Step 3: Remove the Gobo Retaining Ring

After removing the gobo holder, the next step is taking off the retaining ring.

The retaining ring is used to keep the gobo pattern securely fixed inside the holder.

Different moving head lights may use different fixing methods:

Spring Retaining Ring

A flexible metal ring locks the gobo in position.

Pressing Plate

A small metal plate presses the gobo firmly.

Screw Fixing

Some professional fixtures use screws for stronger stability.

In this structure, the gobo is fixed by a retaining ring.

Carefully remove the ring and keep it safe for reinstallation.

Avoid bending or damaging the retaining ring because it is important for securing the new gobo.

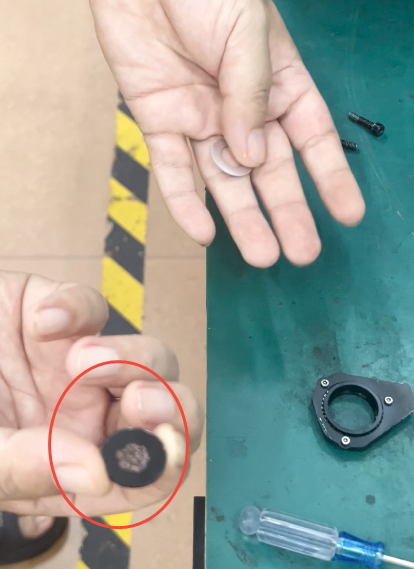

Step 4: Remove the Old Gobo Pattern

After removing the retaining ring, the old gobo pattern can be taken out.

During removal, pay attention to:

• Do not scratch the gobo surface.

• Do not touch the coating area.

• Remember the original installation direction.

For glass gobos, the coated side direction is especially important. Incorrect installation may affect:

• Projection sharpness

• Image brightness

• Pattern accuracy

For metal gobos, make sure the pattern direction matches the required visual effect.

Careful handling prevents unnecessary damage and ensures a smooth replacement process.

Step 5: Install the New Gobo Pattern

After removing the old pattern, install the new gobo into the holder.

Follow these steps:

1. Place the new gobo into the correct position.

2. Align the center of the gobo.

3. Confirm the front and back direction.

4. Make sure the gobo sits flat.

For different materials:

Glass Gobo Installation

Glass gobos usually have a coated surface. The correct direction helps achieve clearer projection.

Metal Gobo Installation

Metal gobos should be installed according to the required projection direction.

A correctly installed gobo ensures:

• Clear image projection

• Smooth rotation

• Stable lighting performance

Step 6: Install the Retaining Ring and Secure the Gobo

After placing the new gobo, reinstall the retaining ring.

Check carefully:

• Is the gobo fixed firmly?

• Is the gobo positioned evenly?

• Can the holder rotate smoothly?

A loose gobo may cause:

• Noise during operation

• Vibration

• Unclear projection effects

After confirming everything is correct, the gobo holder is ready to be installed back into the fixture.

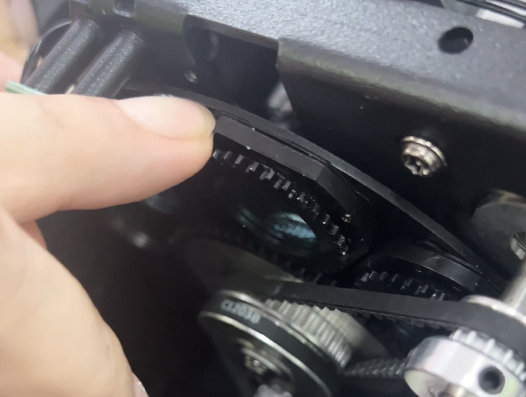

Step 7: Install the Gobo Holder Back Into the Fixture

The final installation step is placing the completed gobo holder back into the original gobo wheel position.

Make sure:

• The holder matches the correct slot.

• The installation position is secure.

• The surrounding wires and components are not blocked.

A correct installation allows the moving head light to perform:

• Gobo selection

• Pattern rotation

• DMX control

As shown in the image, the technician installs the gobo holder back into the rotating gobo wheel.

Step 8: Close the Housing and Test the Lighting Effect

After completing the replacement process:

1. Close the fixture housing.

2. Connect the power supply.

3. Turn on the moving head light.

4. Test the projection effect.

Check the following functions:

Pattern Clarity

Make sure the projected image is sharp and clear.

Gobo Rotation

Confirm that the gobo wheel rotates smoothly.

Focus Adjustment

Adjust the focus function to achieve the best image quality.

DMX Control

Check whether the lighting console can correctly control gobo selection and rotation.

A complete test ensures the moving head light is ready for professional applications.

Maintenance Benefits of Regular Gobo Replacement

Regular maintenance of the gobo system is important for keeping moving head lights working at their best performance. Whether the fixture is used for large concerts, rental projects, theaters, churches, or commercial events, proper gobo maintenance can improve reliability and reduce unexpected downtime.

Improve Projection Quality

A clean and correctly installed gobo can provide:

• Sharper image projection

• Higher light efficiency

• More accurate pattern effects

• Better visual performance

Dust, fingerprints, or incorrect installation may reduce the quality of the projected image. Regular inspection helps maintain professional lighting effects.

Extend the Service Life of the Fixture

Moving head lights contain many precision mechanical and optical components. Proper maintenance helps reduce unnecessary stress on:

• Gobo wheel motors

• Optical lenses

• Internal mechanical structures

• Rotation systems

By replacing damaged gobos and checking internal components regularly, users can extend the service life of their lighting equipment.

Improve Event Preparation Efficiency

For professional lighting companies and rental businesses, fast equipment preparation is very important.

Different events may require different lighting designs:

• Concerts need dynamic patterns and special effects.

• Weddings may require personalized designs.

• Corporate events may require company logos.

• Exhibitions may need customized visual branding.

Knowing how to quickly replace a gobo pattern allows technicians to prepare equipment more efficiently.

Reduce Maintenance Costs

Simple maintenance skills can help users solve common problems without sending equipment back for service.

Learning basic procedures such as:

• Replacing a gobo pattern

• Cleaning optical components

• Checking mechanical parts

can reduce repair costs and minimize equipment downtime.

Common Mistakes When Replacing a Gobo Pattern

Although replacing a gobo is a simple maintenance procedure, incorrect operation may affect lighting performance.

Here are several common mistakes to avoid:

Installing the Gobo in the Wrong Direction

For glass gobos, the coating direction is very important. Incorrect installation may result in unclear projection effects.

Always check the original installation position before replacing the gobo.

Touching the Optical Surface Directly

Fingerprints and dust can reduce projection quality.

Always handle optical components carefully and use clean gloves when necessary.

Forgetting to Secure the Retaining Ring

The retaining ring keeps the gobo stable inside the holder.

If it is not installed correctly, the gobo may:

• Move during operation

• Create vibration noise

• Affect projection stability

Always check that the gobo is firmly fixed before reinstalling the holder.

Installing the Wrong Gobo Size

Different moving head lights may use different gobo specifications.

Before replacement, confirm:

• Gobo diameter

• Thickness

• Installation type

• Compatible fixture model

Using the correct gobo size ensures proper operation.

How Professional Lighting Users Can Benefit From Gobo Customization

Customized gobo patterns have become increasingly popular in modern event lighting.

They allow lighting designers to create unique visual experiences.

Applications include:

Wedding Lighting

Custom names, symbols, and decorative patterns can create memorable wedding scenes.

Brand Events

Companies can project their logos to strengthen brand visibility.

Stage Performances

Creative patterns can enhance storytelling and improve the atmosphere.

Commercial Spaces

Hotels, restaurants, and entertainment venues can use custom lighting effects to create unique environments.

With professional moving head lights and customized gobos, users can achieve more creative lighting possibilities.

Choosing a Reliable Moving Head Light for Gobo Applications

When selecting a moving head light, users should consider several important features:

High-Quality Optical System

A good optical design provides:

• Clear projection

• Sharp edges

• Stable brightness

Accurate Gobo Positioning

Professional fixtures should provide accurate gobo positioning and smooth rotation.

Easy Maintenance Design

A user-friendly internal structure makes replacement and maintenance easier.

Reliable Mechanical Performance

Stable motors and high-quality components ensure long-term operation.

BLUE SEA LIGHTING designs professional moving head lights with reliable optical systems, precise movement control, and practical maintenance structures to meet the needs of global lighting professionals.

BLUE SEA LIGHTING Professional Stage Lighting Solutions

BLUE SEA LIGHTING is a professional stage lighting manufacturer specializing in the research, development, production, and export of high-quality lighting equipment.

Our product range includes:

• LED Moving Head Lights

• Beam Moving Head Lights

• Spot and Wash Fixtures

• Hybrid Moving Head Lights

• Waterproof Outdoor Lighting Fixtures

• LED Strobe Lights

• Stage Effect Machines

• Customized Lighting Solutions

Our lighting products are widely used by:

• Stage rental companies

• Event production companies

• Concert organizers

• Theater professionals

• Churches

• Clubs

• System integrators

With professional manufacturing experience and global export service, BLUE SEA LIGHTING provides reliable lighting solutions for different applications.

Understanding maintenance procedures such as how to replace a gobo pattern in moving head light helps customers achieve better performance and longer equipment life.

Whether preparing for a large-scale concert, outdoor event, exhibition, or commercial project, proper lighting maintenance ensures every performance delivers the best visual experience.

Conclusion

Replacing a gobo pattern in a moving head light is a practical skill that every professional lighting technician should understand.

By following the correct steps:

1. Open the fixture housing safely.

2. Locate and remove the gobo holder.

3. Replace the old gobo pattern.

4. Install the retaining ring correctly.

5. Reassemble the fixture.

6. Test the projection effect.

Users can quickly customize lighting effects while keeping their equipment in excellent condition.

With proper maintenance and reliable professional lighting equipment, moving head lights can continue creating impressive visual effects for countless events and performances.
