Introduction

Small stages don’t require premium budgets or industrial-grade systems to look professional. With smart lighting plans and efficient gear, venues like wedding receptions, local theaters, fashion shows, and corporate events can enjoy compelling lighting setups at a fraction of the cost.

This guide covers strategic lighting techniques, DMX integration tips, and three outstanding fixtures from Blue Sea Lighting that combine versatility, reliability, and budget-friendliness.

1. Planning Your Small‑Stage Lighting

Venue Assessment

Measure stage width, overhead height, and ceiling distance. For compact stages (5–10 m), seek fixtures with beam angles around 3°–15°. Keep wire runs short and power requirements minimal.

Key Lighting Roles

• Beam/Spot lights: for tight patterns or visual focus.

• Wash lights: for stage-wide illumination.

• Profile/Framing lights: for flexible pattern projection and cutoff.

Start with two beam units and, if needed, one hybrid wash fixture.

DMX Control for Flexibility

A basic DMX controller unlocks powerful programming: color fades, gobo changes, movement, and scene transitions—all automated.

2. Recommended Fixtures from Blue Sea Lighting

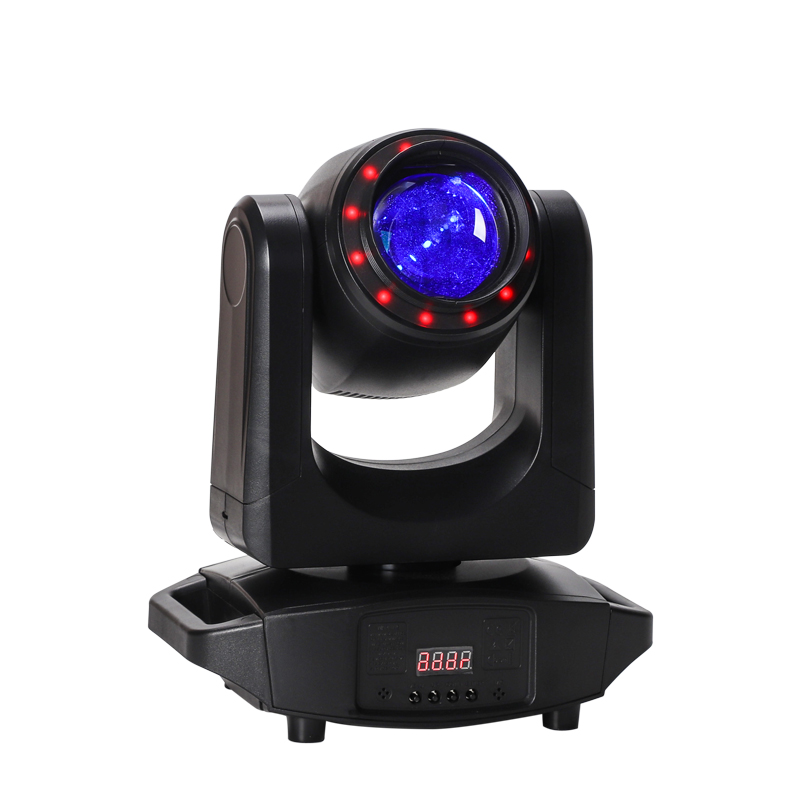

Mini 80W LED Beam Moving Head Light With Halo (BLM80B)

• 80W white LED + 12× RGB SMD halo ring

• 9‑pattern gobo wheel + open, with shake effect

• 7+1 color wheel + rainbow mode

• 18‑facet rotating prism

• 3°–5° tight beam angle—ideal for logo beams and dramatic accents

• Pan 540° / Tilt 270°, intensity dimming, 0–25 Hz strobe

• DMX512, Auto, Sound, Master–Slave control

• Lightweight (~3.6 kg), quiet, best for low ceilings and fast setups


Best for: Compact beam effects, mobile setups, DJ branding, small theatre.

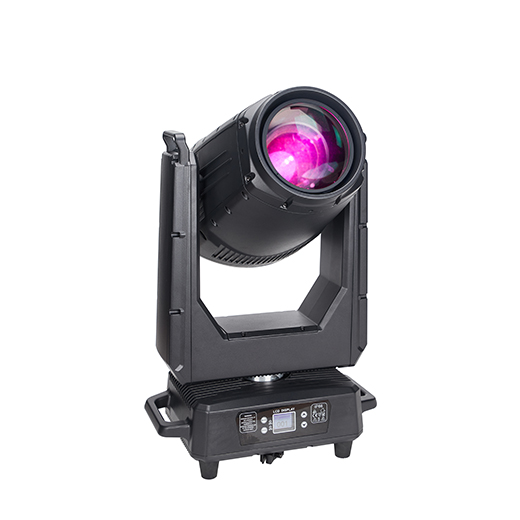

Outdoor Waterproof IP 400W CMY CTO Beam Spot Wash 3‑in‑1 Hybrid (BLMO400BS)

• 400W LED engine, 12,000 lux @15 m

• Zoom: 3°–30°, ultra-bright long‑throw beam

• Full CMY + CTO mixing, 1 fixed (11 gobos + blank) + 1 rotating gobo (8 replaceable), dual prism and frost

• DMX512/RDM/Sound/Auto, waterproof IP66, durable magnesium alloy build

• Silent cooling, 23 kg net weight


Best for: Outdoor branding, venue façade projection, or multi‑mode small-stage wash + beam.

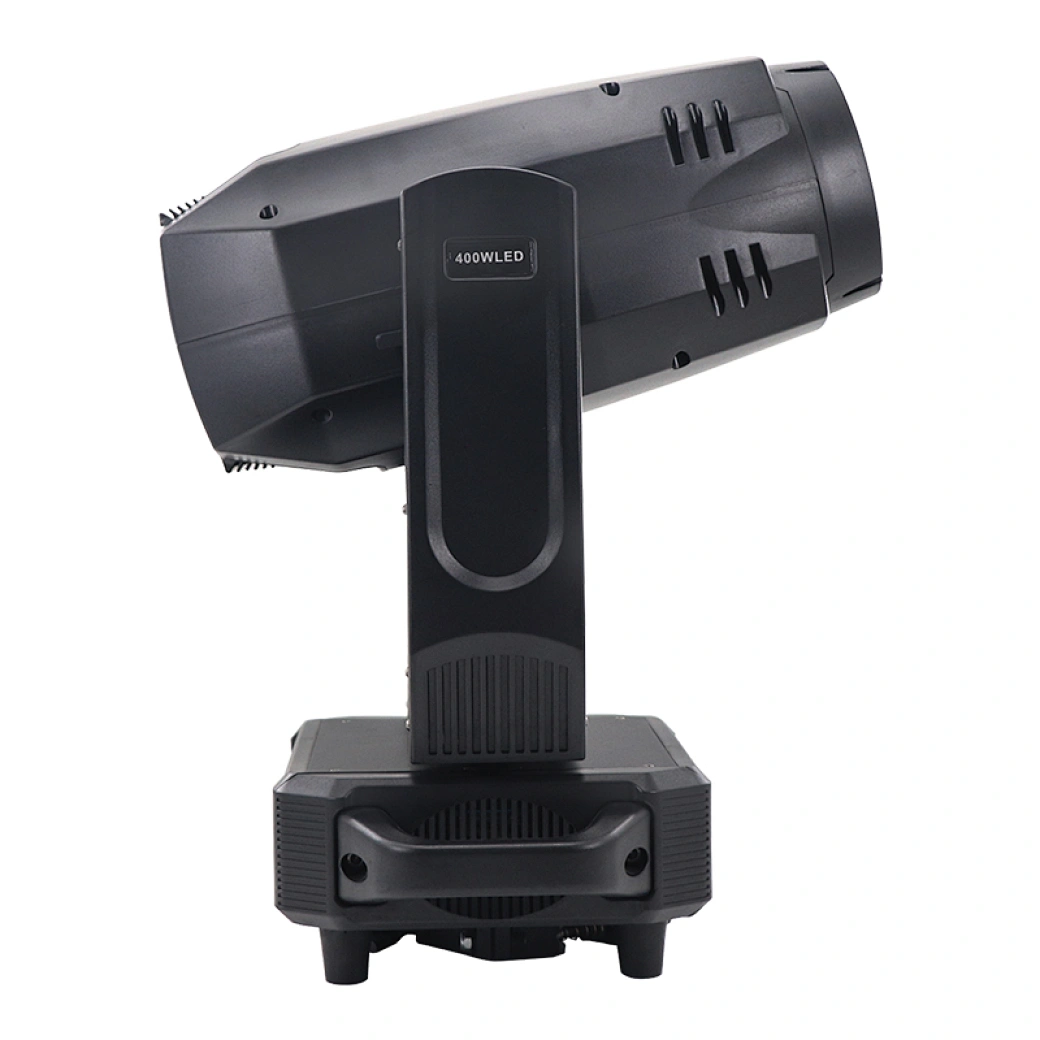

400W Profile Spot LED Moving Head with Framing and Animation (BLM400P)

• 400W crisp white LED, full-profile shaping

• Dual gobo wheels, animation wheel for moving shapes

• 4-blade framing shutter, zoom 6°–50°, CMY + CTO + color wheel

• DMX512, motorized focus, silent operation

• Built for refined patterning, tight edge projection


Best for: Precise logo projection, theatrical lighting, theme-based pattern use.

3. Compact Lighting Layout

Budget variation: Use two BLM80Bs plus the hybrid BLMO400BS for full coverage with minimal fixtures and power draw.

4. Programming Tips

• Pre‑program scenes: color changes → gobo transitions → beam movement

• Use BLM80B’s halo effect to create branded patterns or motion rings

• Employ the hybrid unit to switch between tight beam and full stage wash

• Use profile framing to sharply crop gobos or highlight performers

5. Budget and Efficiency Tips

• Begin with beam fixtures first, add hybrid or profile as budget increases

• Use pre‑made metal gobos or vector logos, skipping more expensive custom glass gobos

• Look for DMX controllers with multiple output channels for multi-fixture control

• Focus on energy-efficient, lightweight fixtures to minimize rig cost

6. Setup & Maintenance

• Secure fixtures with proper clamps and safety cables

• Keep lenses and filters clean for consistent illumination

• Rotate gobos weekly to reduce wear and prolong sharpness

• Test DMX channels before events to avoid cross-control issues

Conclusion

You can achieve professional small-stage lighting without breaking the bank. With strategic planning, DMX programming, and these Blue Sea Lighting® fixtures:

• [BLM80B Mini Beam with Halo]

• [BLMO400BS Hybrid Beam/Spot/Wash]

• [BLM400P Profile Spot with Framing]
