Introduction

With XR (Extended Reality) and virtual imagery becoming mainstream in live performance, broadcast, and entertainment venues, stage lighting must evolve to seamlessly integrate real and virtual elements. XR stages utilize LED volumes, camera tracking, and real-time rendering, and lighting design must coordinate virtual engine output and physical illumination. Blue Sea Lighting explores how stage lighting adapts to XR environments through design, integration, synchronization, and innovation.

Part I – Understanding XR and Virtual Production

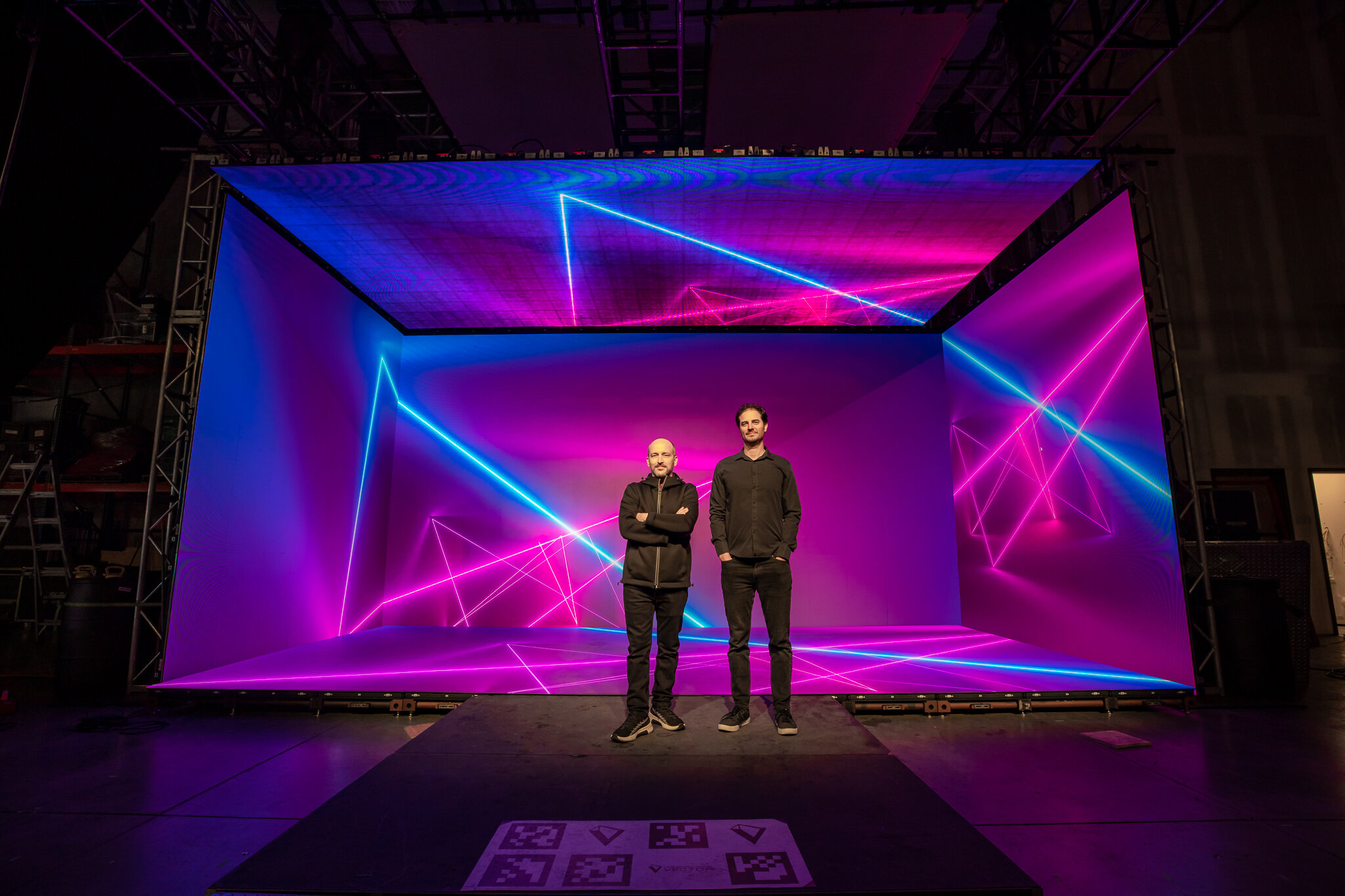

Extended Reality (XR)—including AR, VR, and MR—blurs the line between physical and virtual worlds. XR stages replace traditional green‑screens with immersive LED walls that project virtual backgrounds in real time, allowing actors and cameras to interact naturally .

Modern XR systems deploy LED wall volumes paired with real‑time engines such as Unreal Engine and camera tracking tools to align virtual perspective and parallax as the camera moves . This immersive LED volume ecosystem demands precise lighting coordination to blend virtual imagery and live subjects convincingly .

Part II – Lighting Principles for XR

1. Balancing LED Volume Emissive Lighting

LED walls are emissive light sources. When virtual backgrounds change, their brightness and color affect how actors and physical elements are lit. Cinematographers must consider LED output as a dynamic light source and balance it with key, fill, and rim lighting .

2. Color Accuracy and Consistency

Maintaining consistent color temperature and brightness across physical and virtual lighting is crucial. XR lighting systems rely on calibrated LED volumes and controlled fixtures to avoid color mismatches or strange hues that break immersion .

3. Syncing Virtual and Practical Lighting

Virtual lighting cues generated by the rendering engine (e.g. simulated sunset, candlelight) should match practical fixtures on set. This synchronization may involve mapping virtual color data, temperature, and intensity to physical stage lights controlled through consoles .

4. Perceptual Depth and Shadows

To convincingly integrate performers into virtual scenes, lighting must simulate shadows, bounce, and depth consistent with the rendered perspective. Techniques like image-based lighting (IBL) and spherical harmonics estimation help balance real lights with virtual ambient environments .

Part III – Design Workflow for XR-integrated Lighting

A. Pre‑Production Planning

• Define virtual environment style and lighting mood early. Designers should coordinate with XR scene designers and visual effects teams.

• Generate lighting simulation maps using virtual environment tests. Confirm practical fixtures match virtual shadows and color direction.

B. Technical Integration

• Install camera tracking markers and ensure synchronization between motion capture data and lighting desk cues.

• Deploy media servers (e.g. Disguise, Unreal Engine-based platforms) to manage real-time rendering and control signals .

• Use consoles capable of receiving virtual engine data — for example via OSC or protocol integration — to drive color/intensity of real lights in sync.

C. On‑set Calibration & Testing

• Calibrate LED wall brightness and gamma to match camera exposure settings and physical fixtures.

• Perform in-camera tests to evaluate how the combination of LED volume light and practical lighting appears during recorded footage.

D. Live Execution

• Adjust fixtures dynamically as virtual scenes change—e.g., dims during virtual sunset, intensifies during night scenes.

• Keep virtual lighting and physical lighting in the same timeline—automate transitions via time-coded cues.

Part IV – Technical Considerations and Challenges

1. LED Wall Brightness vs Camera Exposure

XR walls need to be bright enough for camera capture but not so overpowering as to wash out practical lighting. Balancing LED luminance and contrast is an ongoing challenge .

2. Latent Rendering and Lighting Responsiveness

Real-time rendering must respond instantly to camera movement. Lighting cues must also keep pace to avoid mismatch lag. High‑end GPUs, low-latency frame pipelines, and fast consoles are key .

3. Color Calibration Drift

Long shoots may involve calibration shifts over time. Periodic color checks and re-calibration help maintain consistency throughout production.

4. Retaining Artistic Control

Despite automation, designers should retain manual overrides to fine-tune light intensity, color balance, and mood—ensuring creative vision is not lost to pure data mapping.

Part V – Trends and Case Studies

• Large-scale XR production facilities like Absen & Versatile’s 5,000 m² LED volume in China are pushing XR storytelling to cinematic scale.

• Industrial Light & Magic’s StageCraft stages used on The Mandalorian provide benchmarks for real-time virtual production workflows integrating lighting, tracking, Unreal Engine, and LED volumes .

• Disguise platforms were used in U2 Sphere shows, Taylor Swift tours and broadcast events, creating seamless integration of virtual backgrounds and physical lighting design .

Part VI – Role of Blue Sea Lighting

Blue Sea Lighting offers fixtures and lighting consoles that support:

• Precise color calibration and high CRI for seamless XR integration.

• Flexible dimming and programming that can sync with virtual scene transitions.

• Support for hybrid workflows combining engine data and manual control for artistic flexibility.

Whether in corporate XR events, music livestreams, or theatrical XR conversions, Blue Sea Lighting enables lighting professionals to bridge the gap between physical fixtures and virtual imagery.

Conclusion

Adaptation to XR and virtual imagery requires:

• Understanding new lighting paradigms in emissive LED environments.

• Coordinated design between virtual scene and practical fixtures.

• Reliable synchronization and calibration between LED volumes and stage lighting.

• Balance between creative control and automated data mapping.

As XR technologies evolve, Blue Sea Lighting remains committed to innovating lighting hardware and workflows that empower creatives to deliver immersive, cohesive, and visually compelling performances—fusing the real with the virtual seamlessly.
